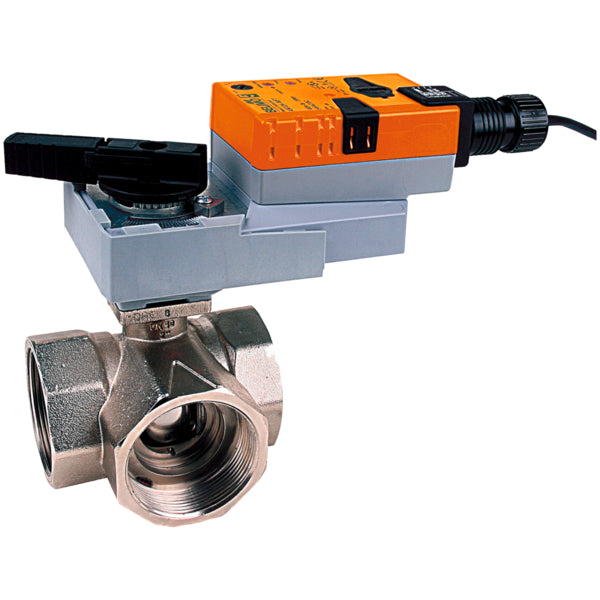

B340L+ARX24-MFT | Belimo Three Way Ball Valve 1.5 Inch 57 Cv With Programmable Actuator 24V
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B340L+ARX24-MFT
Description
The Belimo B340L+ARX24-MFT is a factory-assembled three-way ball valve with a non fail-safe programmable actuator designed for precise hydronic flow control. It combines a 1.5 inch valve body with a 24 V MFT actuator to provide accurate modulating performance in HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | B340L+ARX24-MFT |
| Subcategory | Ball Valves |
| Valve Size | 1.5 in [40 mm] |
| Valve Type | 3-way changeover / diverting |
| Cv Rating | 57 |
| Flow Characteristic | Modified linear |
| Flow Pattern | 3-way |
| Controllable Flow Range | 75° |
| Leakage Rate | 0% |
| Fluid Type | Chilled or hot water, up to 60% glycol |
| Fluid Temperature Range | -18…120°C [0…250°F] |
| Body Pressure Rating | 400 psi |
| Close-Off Pressure | 200 psi |
| Pipe Connection | NPT female |
| Valve Body Material | Nickel-plated brass |
| Nominal Voltage | AC/DC 24 V |
| Control Signal | MFT programmable, 2…10 V |
| Power Consumption (Operation) | 3.5 W |
| Power Consumption (Rest) | 1.3 W |
| Transformer Sizing | 6 VA |
| Position Feedback | 2…10 V |
| Actuator Rotation | 90°, adjustable |
| Running Time (Motor) | 90…150 s / 90° |
| Degree of Protection | IP54 / NEMA 2 |
| Weight | 5.8 lb (0.92 kg) |
Information About B340L+ARX24-MFT
The B340L+ARX24-MFT is part of Belimo’s ball valve and actuator assemblies developed for efficient and reliable hydronic control. The valve features a durable nickel-plated brass construction with PTFE seats and a chrome-plated brass ball to ensure zero leakage and long service life. Its integrated ARX24-MFT actuator uses Belimo’s MFT multi-functional technology, allowing flexible configuration of control signals, operating ranges, and response behavior. Factory assembly ensures proper alignment between valve and actuator, reducing installation time and supporting consistent performance in commercial HVAC applications.
Key Features
- Three Way Ball Valve Design: Supports changeover or diverting operation with a modified linear flow characteristic for stable hydronic control.
- Non Fail-Safe Actuator Operation: Provides powered valve positioning without spring return for applications where fail-safe action is not required.
- MFT Programmable Control Technology: Supports 2…10 V, 4…20 mA, PWM, on/off, and floating point control modes for broad system compatibility.
- High Flow Capacity: Cv 57 rating enables efficient flow control in medium to large hydronic circuits with low pressure loss.
- Zero Leakage Performance: Precision-machined valve components ensure tight shutoff and reliable separation of flow paths.
- Integrated Position Feedback: Supplies a 2…10 V feedback signal for continuous valve position monitoring and closed-loop control.
- Manual Override Capability: External push button allows manual positioning during commissioning or maintenance activities.
The B340L+ARX24-MFT delivers the reliability and precision required for accurate hydronic flow modulation in non fail-safe HVAC control applications.
