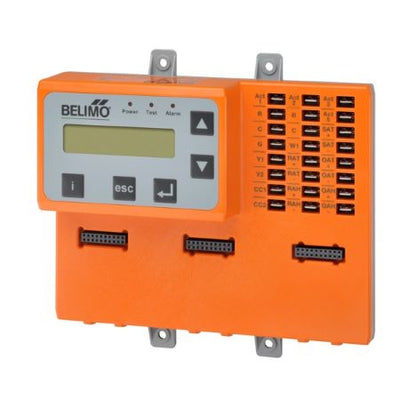

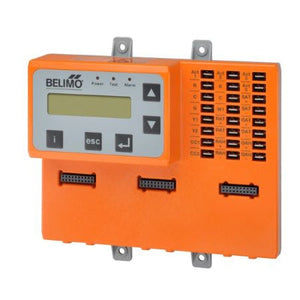

Belimo ECON-ZIP-BASE ZIP Economizer HVAC Control Base Unit

Belimo ECON-ZIP-BASE ZIP Economizer HVAC Control Base Unit

Part #: ECON-ZIP-BASE Manufactured by: Belimo

Regular price: $607.00
Sale price: $607.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The Belimo ECON-ZIP-BASE is a modular ZIP Economizer base unit designed to coordinate free cooling, mechanical cooling, ve... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: ECON-ZIP-BASE

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Belimo

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: ECON-ZIP-BASE

Description / Specifications

Description

Belimo ECON-ZIP-BASE is the base control unit for the ZIP Economizer system, designed to manage common HVAC economizer and ventilation functions. Its modular plug-and-play architecture supports free cooling strategies, mechanical cooling stages, fan operation, and ventilation damper feedback.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Belimo
Category	HVAC
Part Number	ECON-ZIP-BASE
Subcategory	HVAC Control System Board
Product Type	ZIP Economizer Base Unit
Version	Economizer V2.2
Nominal Voltage	24VAC
Nominal Frequency	50/60Hz
Humidity Output Signal	0–10VDC
Temperature Output Signal	NTC 10kΩ
Connectors	1/4 in Male Spade Connectors
Climate Zones	Built-In
Mechanical Cooling Stages	2
Free Cooling Changeover Strategies	4
Fault Detection and Diagnostics (FDD)	Supported
Pollution Degree	3
Ambient Humidity	Max. 95% RH, Non-Condensing
Ambient Temperature	-40°F to 160°F (-40°C to 70°C)
Storage Temperature	-40°F to 176°F (-40°C to 80°C)
Housing Material Rating	UL94-5VA
Maintenance	Maintenance-Free
Weight	1.3 lbs

Information About ECON-ZIP-BASE

The ECON-ZIP-BASE is the core unit of Belimo’s ZIP Economizer platform for commercial HVAC applications. It incorporates built-in climate zones and an LCD interface with onboard assistance for setup and operation. Integrated fault detection and diagnostics help identify operating issues, initiate alarms, and support appropriate system response. An optional communication module can be added when BACnet MS/TP building automation integration is required.

Key Features:

ZIP Economizer Platform: Serves as the base unit for the modular ZIP Economizer control system.
Plug-and-Play Design: Simplifies installation and configuration of compatible economizer components.
Built-In Climate Zones: Supports climate-based economizer control strategies.
Free Cooling Control: Provides four changeover strategies for economizer operation.
Mechanical Cooling Control: Supports two stages of mechanical cooling and integrated cooling.
Fault Detection and Diagnostics: Detects system faults, generates alarms, and supports operational troubleshooting.
Ventilation Management: Supports indoor fan speed and ventilation damper position feedback.
LCD Interface: Provides an extended-temperature transflective display with onboard operating assistance.

The ECON-ZIP-BASE delivers the economizer control and diagnostic functionality required for commercial HVAC ventilation and free-cooling applications.
