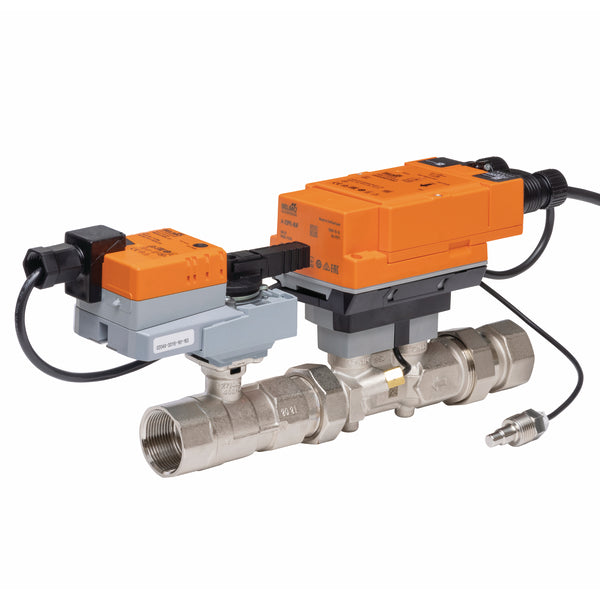

Belimo EV200H+ARX-E Energy Valve 2-Way Pressure Independent Control Valve
- Regular price
- $2,099.00
- Sale price
- $2,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EV200H+ARX-E
Description
Belimo EV200H+ARX-E is a Belimo Energy Valve™ combining a characterized 2-way pressure-independent control valve, electronic actuator, and thermal energy metering functionality in one assembly. Designed for chilled- and hot-water systems, it provides flow, power, and Delta T management while supporting BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, and cloud connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Controls |
| Part Number | EV200H+ARX-E |
| Subcategory | Energy Valves |
| Valve Type | Electr. 2-way PI-CCV Belimo Energy Valve™ |
| Valve Size | 2 in. (DN50) |
| Nominal Flow | 100 GPM |
| Fluid | Chilled or hot water, up to 60% glycol |
| Fluid Temperature | 14°F to 250°F (-10°C to 120°C) |
| Differential Pressure | 8 to 50 psi |
| Body Pressure Rating | 360 psi |
| End Connection | Internal thread |
| Trim Material | Stainless steel |
| Power Supply | AC/DC 24 V |
| Power Consumption | 5 W running |
| Transformer Sizing | 8 VA |
| Communication | BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud |
| Ethernet Connection | RJ45 |
| Control Modes | Flow, Power, Position, Differential Pressure |
| NEMA Protection | NEMA 2 |
| UL Enclosure | Type 1 |
| Weight | 18.0 lb |
Information About EV200H+ARX-E
The EV200H+ARX-E is a 2-inch Belimo Energy Valve with a nominal flow rate of 100 GPM and AC/DC 24 V power supply. Its integrated system combines a characterized control valve and actuator with a thermal energy meter, logic module, and sensor module for measuring and managing water-system performance. The valve supports chilled or hot water with up to 60% glycol and is rated for fluid temperatures from 14°F to 250°F (-10°C to 120°C). Communication and control can be handled through multiple building automation protocols, including BACnet, Modbus, MP-Bus, analog DC control, and Belimo Cloud.
Key Features:
- Energy Valve Design: Combines flow control, energy measurement, and system management in a single valve assembly.
- Pressure-Independent Control: Maintains controlled flow performance across the specified differential-pressure range.
- 2-Way Valve: Uses a 2-way characterized control valve with a 2-inch (DN50) connection size.
- Energy Measurement: Integrated thermal energy metering records relevant system data for monitoring and optimization.
- Delta T Management: Provides Delta T management to help control temperature differential in hydronic systems.
- Multiple Communication Protocols: Supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, and cloud connectivity.
- Wide Fluid Temperature Range: Supports chilled or hot water from 14°F to 250°F (-10°C to 120°C).
- Flexible Control Modes: Can be configured for flow control, power control, position control, or differential-pressure control.
The EV200H+ARX-E delivers the reliability and precision required for HVAC hydronic systems, chilled-water applications, hot-water systems, and energy-management installations.
