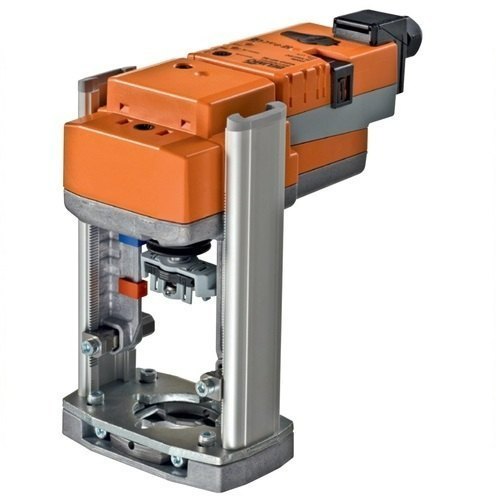

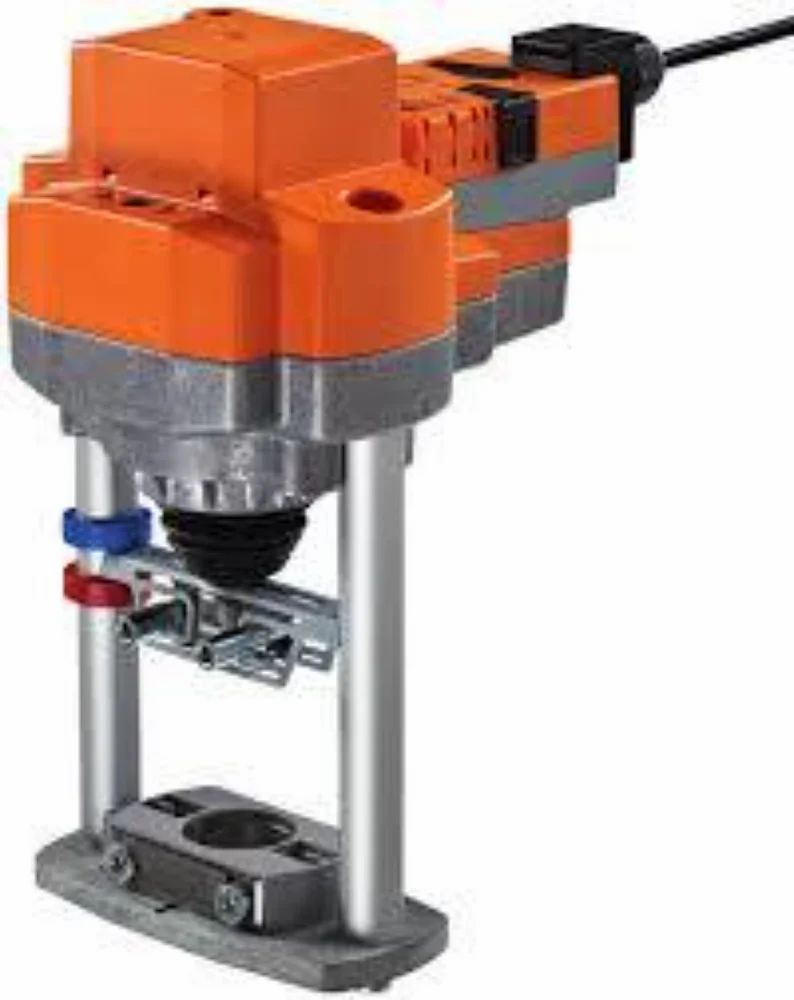

EV24A-SR-TPC | Belimo Globe Valve Actuator 2500 N 24 V AC/DC 2–10 V
- Regular price
- $1,568.00
- Sale price
- $1,568.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EV24A-SR-TPC
Description
The Belimo EV24A-SR-TPC is a globe valve actuator designed to deliver precise linear control for HVAC and industrial flow regulation applications. Operating on AC/DC 24 V, it provides a controlled 2–10 V input signal with reliable thrust performance and consistent positioning accuracy.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Control Components |
| Part Number | EV24A-SR-TPC |
| Subcategory | Globe Valve Actuators |
| Nominal Voltage | AC/DC 24 V |
| Frequency | 50/60 Hz |
| Voltage Range | AC 19.2–28.8 V / DC 21.6–28.8 V |
| Power Consumption (Operation) | 4 W |
| Power Consumption (Rest) | 1.5 W |
| Power Consumption (Sizing) | 6 VA |
| Actuating Force | 2500 N |
| Control Signal | 2–10 V |
| Input Impedance | 100 kΩ |
| Position Feedback | 2–10 V, max. 0.5 mA |
| Position Accuracy | ±5% |
| Stroke Length | 40 mm |
| Running Time | 150 s / 40 mm |
| Manual Override | Push-button, lockable |
| Sound Power Level | 55 dB(A) |
| Degree of Protection | IP54 / NEMA 2 |
| Ambient Temperature | 0…50°C |
| Storage Temperature | −40…80°C |
| Ambient Humidity | Max. 95% RH, non-condensing |
| Weight | 3.6 kg |
Information About EV24A-SR-TPC
The EV24A-SR-TPC is a Belimo globe valve actuator developed for modulating control of water and steam valves in HVAC and building automation systems. It combines high actuating force with smooth, linear motion to ensure accurate valve positioning across the full stroke range. The actuator supports proportional control via a standard 2–10 V signal and provides position feedback for monitoring and system integration. Its robust housing and electrical protection allow reliable operation in mechanical rooms and industrial environments.
Key Features
- High actuating force output: Delivers 2500 N of force to ensure reliable operation of globe valves under varying pressure conditions.
- Proportional control capability: Accepts a 2–10 V control signal for precise modulating valve positioning.
- Integrated position feedback: Provides a 2–10 V feedback signal to support monitoring, diagnostics, and closed-loop control.
- Manual override functionality: Equipped with a lockable push-button for manual positioning during commissioning or maintenance.
- Consistent positioning accuracy: Maintains stable control with ±5% positioning accuracy across the full stroke.
- Quiet operation: Designed with low sound output to support use in occupied building environments.
- Durable environmental protection: IP54 and NEMA 2 ratings support operation in demanding HVAC installations.
- Maintenance-free design: Engineered for long service life without routine maintenance requirements.
The EV24A-SR-TPC delivers the reliability and precision required for accurate modulating control of globe valves in HVAC and building automation systems.
