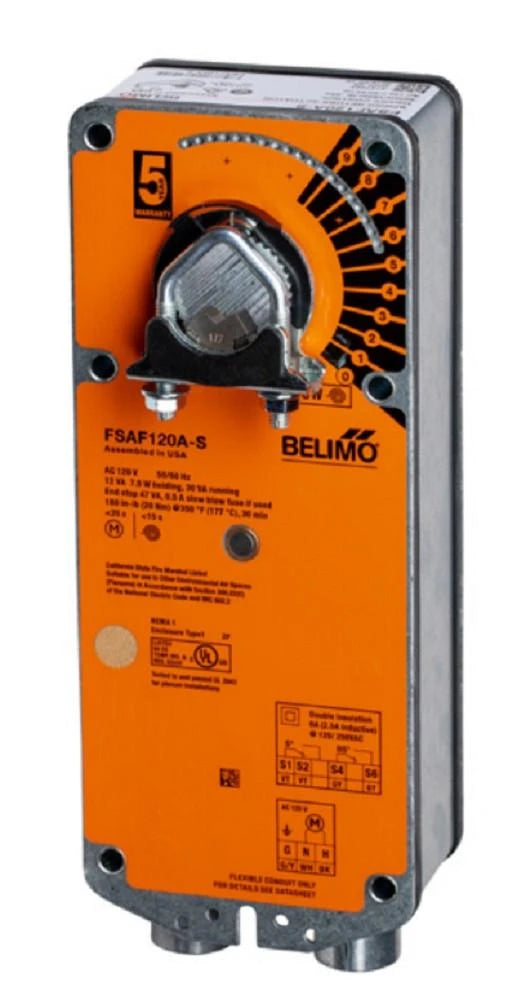

Belimo FSAF120A-S Fire & Smoke Spring Return Actuator
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSAF120A-S
Description
The Belimo FSAF120A-S is a spring-return fire and smoke actuator designed for UL555 and UL555S listed dampers in HVAC ventilation systems. It operates from 120 VAC, provides 180 in-lb (20 Nm) of torque, and uses on/off control with two SPST auxiliary switches for damper position indication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Flame Safety Products |
| Part Number | FSAF120A-S |
| Subcategory | Valve Actuator |
| Product Type | Fire & Smoke Actuator |
| Actuator Series | FSAF |
| Voltage AC/DC | AC 120 V |
| Control Type | On/Off |
| Torque | 180 in-lb [20 Nm] |
| Auxiliary Switches | 2x SPST |
| Angle of Rotation | 95° |
| Running Time (Motor) | 25 s / 90° |
| Running Time (Fail-Safe) | <15 s |
| Power Consumption (Running) | 30 VA |
| Power Consumption (Holding) | 7.5 W, 12 VA (50 Hz 20 VA), end stop 47 VA |
| Degree of Protection NEMA | NEMA 1 |
| Enclosure Type | UL Enclosure Type 1 |
| Ambient Temperature | 32...122°F [0...50°C] |
| Weight | 7.00 lbs |
Information About FSAF120A-S
The FSAF120A-S belongs to Belimo’s FSAF series of fail-safe actuators developed for fire and smoke damper applications. Its spring-return mechanism maintains fail-safe damper positioning when electrical power is interrupted, while the motor drives the damper during normal operation. The actuator supports reversible clockwise or counterclockwise mounting and provides a 95° rotation range with a motor running time of 25 seconds per 90°. Two integrated SPST auxiliary switches provide electrical indication of damper position, with wiring provided through a 4-wire appliance cable and 1/2-inch NPT conduit connector.
Key Features:
- Spring Return: Provides fail-safe damper positioning when power is removed.
- 120 VAC Operation: Designed for AC 120 V power supply applications.
- 180 in-lb Torque: Produces 20 Nm of torque for fire and smoke damper operation.
- On/Off Control: Uses two-position control for straightforward damper actuation.
- Auxiliary Switches: Includes two SPST switches for open and closed position indication.
- 95° Rotation: Provides the required angular movement for damper positioning.
- Fast Fail-Safe Action: Returns to the fail-safe position in less than 15 seconds.
- UL Type 1 Enclosure: Uses a UL Enclosure Type 1 housing for the specified installation environment.
The FSAF120A-S delivers the reliability and precision required for fail-safe fire and smoke damper control in HVAC ventilation systems.
