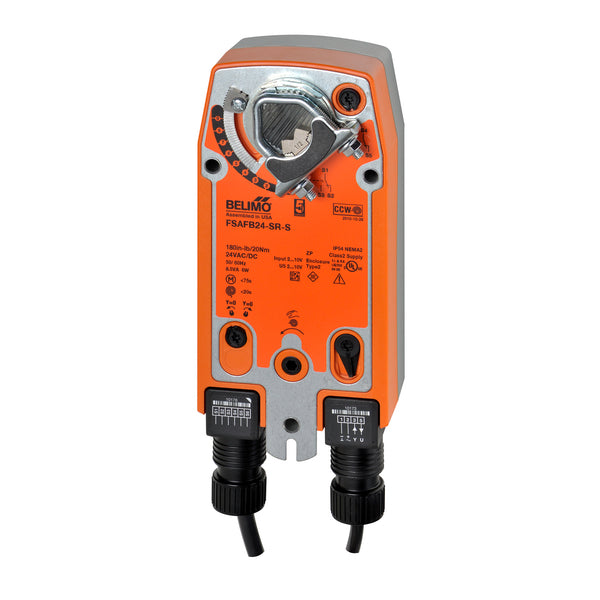

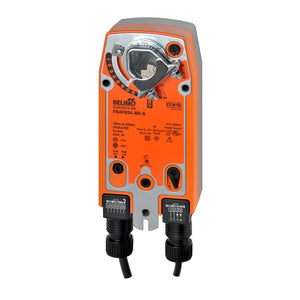

Belimo FSAFB24-SR-S Modulating Fire and Smoke Spring Return Damper Actuator
- Regular price
- $815.00
- Sale price
- $815.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSAFB24-SR-S
Description
Belimo FSAFB24-SR-S is a modulating fire and smoke damper actuator designed for HVAC life-safety applications requiring spring-return operation. It operates on 24 VAC/DC power, delivers 180 in-lb (20 Nm) of torque, and accepts a 2–10 VDC control signal for proportional damper positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Controls |
| Part Number | FSAFB24-SR-S |
| Subcategory | Fire and Smoke Damper Actuators |
| Product Type | Fire and Smoke Damper Actuator |
| Control Type | Modulating |
| Supply Voltage | 24 VAC/DC |
| Control Signal | 2–10 VDC |
| Torque | 180 in-lb (20 Nm) |
| Return Action | Spring Return |
| Auxiliary Switches | 2 × SPDT |
| Angle of Rotation | 95° |
| Motor Running Time | 75 sec / 90° |
| Fail-Safe Running Time | Less than 20 sec |
| Running Power Consumption | 6 W, 9.5 VA |
| Holding Power Consumption | 3 W, 5 VA |
| Manual Override | 5 mm Hex Crank (3/16 in Allen), Included |
| Protection Rating | IP54 |
| NEMA Rating | NEMA 2 |
| Ambient Temperature Range | -22°F to 122°F (-30°C to 50°C) |
| Weight | 6 lb |
Information About FSAFB24-SR-S
The FSAFB24-SR-S is a Belimo fire and smoke actuator designed for modulating control of compatible damper assemblies. Its spring-return construction provides fail-safe operation, while the motor and fail-safe direction can be configured through CW or CCW mounting orientation. The actuator incorporates two SPDT auxiliary switches for position indication and auxiliary control functions. A 95° rotation range, manual hex-crank override, IP54 protection, and NEMA 2 enclosure support installation in commercial HVAC fire and smoke control systems.
Key Features:
- 180 in-lb Torque: Delivers 20 Nm of torque for operating compatible fire and smoke damper assemblies.
- Modulating Control: Accepts a 2–10 VDC control signal for proportional damper positioning.
- Spring Return Operation: Provides automatic fail-safe damper positioning when actuator power is interrupted.
- 24 VAC/DC Power: Supports both AC and DC 24 V power sources for flexible control system integration.
- Dual SPDT Switches: Includes two auxiliary SPDT switches for position indication and control functions.
- Reversible Installation: Motor and fail-safe rotation direction can be configured through CW or CCW mounting.
- Manual Override: Includes a 5 mm hex crank for manual actuator positioning during installation or service.
- IP54 Protection: NEMA 2 enclosure provides protection suitable for compatible indoor HVAC installations.
The FSAFB24-SR-S delivers the reliability and precision required for modulating fire and smoke damper control in HVAC life-safety systems.
