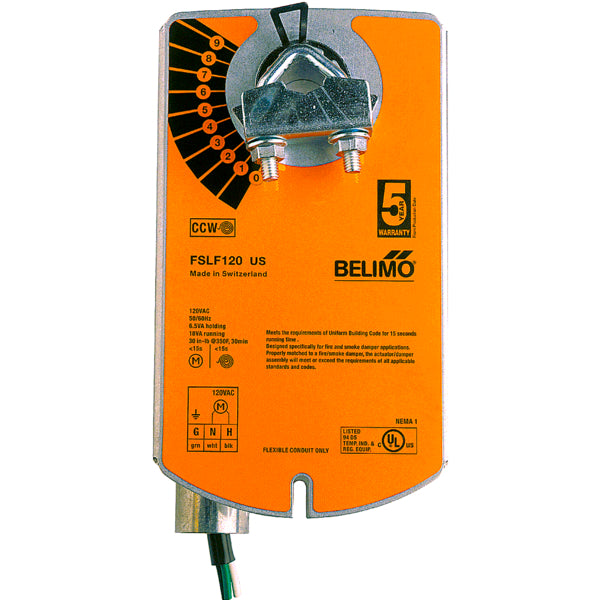

Belimo FSLF120.1 US 120V Spring-Return Fire & Smoke Damper Actuator 30 in-lb
- Regular price
- $615.00
- Sale price
- $615.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSLF120.1 US
Description
The Belimo FSLF120.1 US is a 120 VAC spring-return fire and smoke damper actuator designed for reliable on/off control in life safety HVAC applications. Producing 30 in-lb (3.5 Nm) of torque, it provides rapid damper operation and automatically returns the damper to its fail-safe position during power loss.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Controls |
| Part Number | FSLF120.1 US |
| Subcategory | Fire & Smoke Damper Actuators |
| Product Type | Spring-Return Fire & Smoke Actuator |
| Power Supply | 120 VAC, 50/60 Hz |
| Nominal Voltage Range | 96–132 VAC |
| Control Type | On/Off |
| Torque | 30 in-lb (3.5 Nm) |
| Angle of Rotation | Maximum 95° |
| Running Time (Motor) | 15 seconds / 90° |
| Running Time (Fail-Safe) | Less than 15 seconds |
| Power Consumption (Running) | 18 VA |
| Power Consumption (Holding) | 4 W, 5.5 VA (8 VA at 50 Hz) |
| Inrush Current | 3.2 A |
| Overload Protection | Electronic |
| Protection Rating | NEMA 1, UL Enclosure Type 1 |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -40°F to 176°F (-40°C to 80°C) |
| Humidity | Maximum 95% RH, Non-Condensing |
| Housing Material | Galvanized Steel |
| Agency Approvals | cULus, UL 2043, NYC MEA 197-07-M, ISO 9001 |
| Maintenance | Maintenance-Free |
| Weight | 3.9 lb (1.8 kg) |
Information About FSLF120.1 US
The FSLF120.1 US is part of the Belimo FSLF Series of compact fire and smoke damper actuators developed for commercial HVAC and life safety systems. It operates from a 120 VAC power supply and provides simple on/off control with a spring-return mechanism that ensures automatic fail-safe positioning when power is interrupted. The actuator features reversible mounting, electronic overload protection, mechanical position indication, and a galvanized steel housing for long-term durability. Certified to cULus, UL 2043, and NYC MEA standards, it is suitable for installation in air plenums and other code-compliant fire and smoke damper applications.
Key Features:
- Spring-Return Fail-Safe: Automatically returns the damper to its safety position during power loss.
- 30 in-lb Torque: Delivers 3.5 Nm of torque for fire and smoke damper applications.
- 120 VAC Operation: Designed for direct connection to standard 120 VAC HVAC control systems.
- Fast Operating Speed: Completes a 90° stroke in 15 seconds with fail-safe return in under 15 seconds.
- Electronic Overload Protection: Protects the actuator throughout the full operating range.
- Reversible Mounting: Supports clockwise or counterclockwise installation for greater flexibility.
- UL 2043 Compliant: Approved for installation in air plenums per NEC and IMC requirements.
- Maintenance-Free Construction: Provides dependable long-term performance without routine servicing.
The FSLF120.1 US delivers the reliability and precision required for dependable fire and smoke damper control in commercial HVAC life safety systems.
