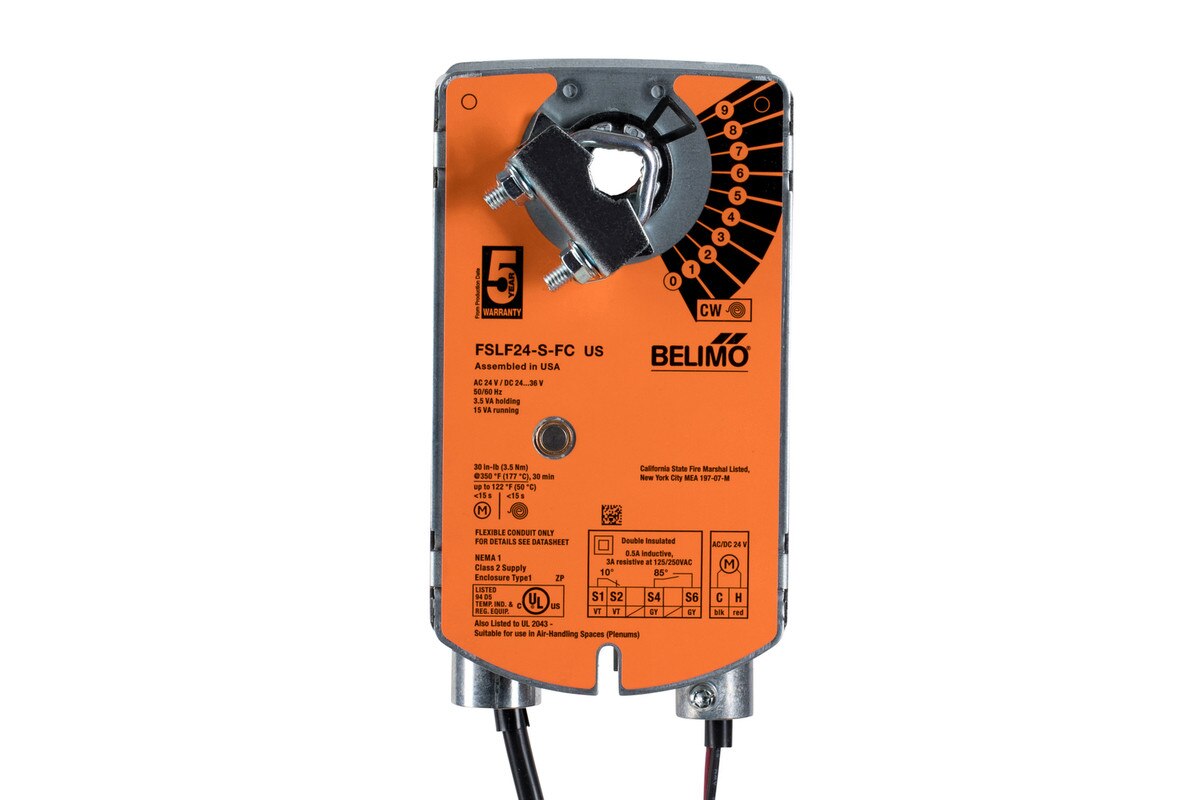

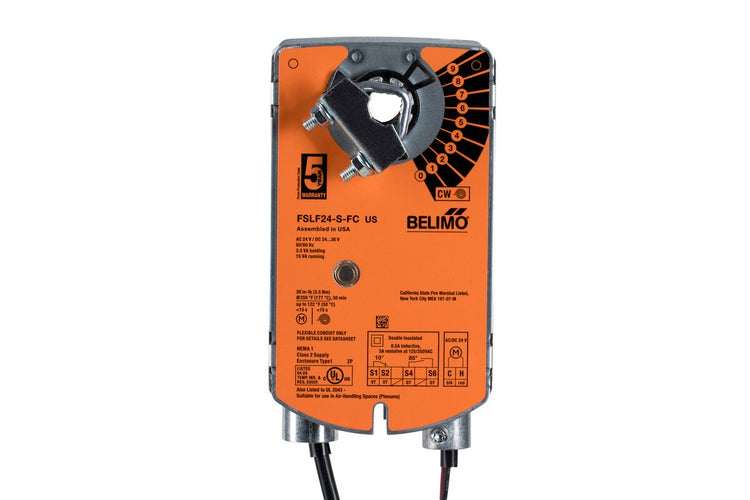

Belimo FSLF24-S US Spring-Return Fire and Smoke Damper Actuator
Part #:
FSLF24-S US
Manufactured by:
Belimo
- Regular price
- $592.00
- Sale price
- $592.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Belimo FSLF24-S US is a spring-return fire and smoke damper actuator designed for On/Off control in life-safety HVAC s...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: FSLF24-S US
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: FSLF24-S US
Description / Specifications
Description
Belimo FSLF24-S US is a spring-return fire and smoke damper actuator designed for life-safety HVAC applications. It operates on 24VAC/DC with On/Off control and provides rapid motor and fail-safe operation for positioning compatible fire and smoke dampers.
Technical Specifications
| Condition | New/Never Used Surplus |
|
Brand
|
Belimo |
| Category | Pneumatics |
| Part Number | FSLF24-S US |
| Subcategory | Pneumatic Actuator |
| Product Type | Fire & Smoke Damper Actuator |
| Actuator Type | Spring Return |
| Supply Voltage | 24VAC/DC |
| Control Type | On/Off |
| Torque | 30 in-lb (3.5Nm) |
| Auxiliary Switches | 2 × SPST |
| Power Consumption – Running | 15VA |
| Power Consumption – Holding | 2.5W / 3.5VA |
| Power Consumption for Wire Sizing | 24VA |
| Angle of Rotation | 95° |
| Motor Running Time | 15 Seconds / 90° |
| Fail-Safe Running Time | <15 Seconds |
| Motor Direction | Selectable by CW/CCW Mounting |
| Fail-Safe Direction | Reversible by CW/CCW Mounting |
| Auxiliary Switch Connection | 32 in (0.9 m), 4 × 18 AWG Cable |
| NEMA Rating | NEMA 1 |
| Enclosure Type | UL Enclosure Type 1 |
| Ambient Temperature | 32°F to 122°F (0°C to 50°C) |
| Fire/Smoke Temperature Rating | Up to 350°F (177°C) |
| Standards | UL 555, UL 555S |
| Weight | 4.00 lbs |
Information About FSLF24-S US
Key Features:
- Fire and Smoke Application: Designed specifically for compatible fire and smoke damper systems.
- Spring-Return Fail-Safe: Automatically moves the damper to its safety position upon loss of power.
- Fast Actuation: Provides rapid motor and spring-return operation for life-safety applications.
- On/Off Control: Supports straightforward two-position damper control.
- Dual Auxiliary Switches: Includes two SPST switches for position signaling and auxiliary functions.
- Reversible Installation: Motor and fail-safe direction can be selected through CW or CCW mounting.
- High-Temperature Operation: Designed for fire and smoke damper applications at temperatures up to 350°F.
- Life-Safety Compliance: Designed for applications requiring UL 555 and UL 555S fire and smoke damper standards.
The FSLF24-S US delivers rapid spring-return positioning and dependable actuation for compatible fire and smoke damper systems.
