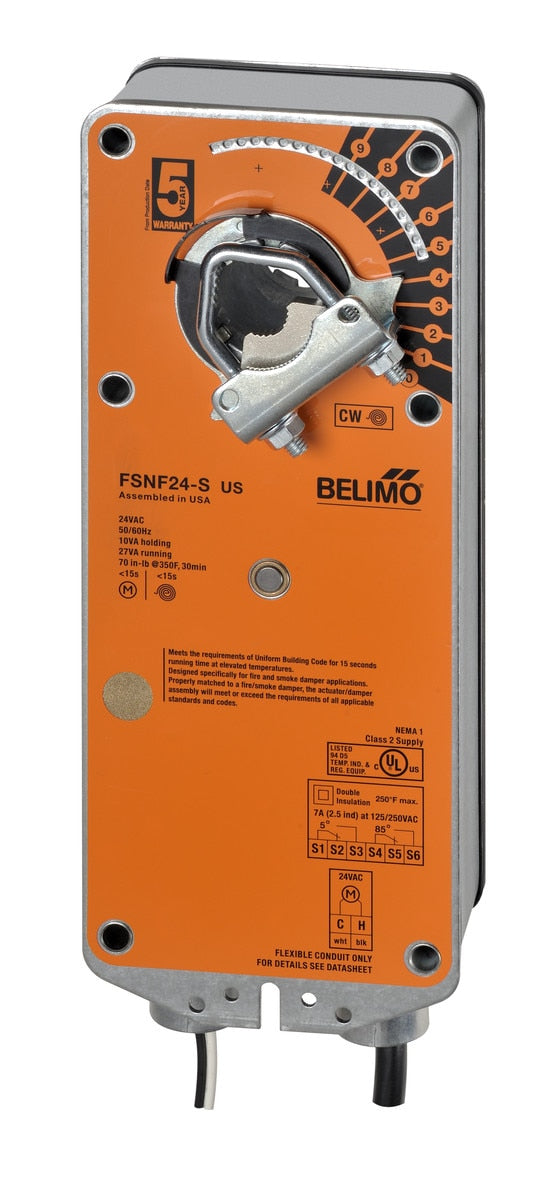

Belimo FSNF24-S US Spring Return Fire and Smoke Damper Actuator with Auxiliary Switches
- Regular price
- $1,065.00
- Sale price
- $1,065.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSNF24-S US
Description
The Belimo FSNF24-S US is a spring-return actuator for on/off control of compatible fire and smoke dampers. It delivers 70 lb-in (8 N·m) of torque and includes two SPDT auxiliary switches for position indication or interlock functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC |
| Part Number | FSNF24-S US |
| Subcategory | Fire and Smoke Damper Actuators |
| Control Type | On/Off |
| Nominal Supply Voltage | 24 VAC/DC |
| AC Supply Frequency | 50/60 Hz |
| Rated Torque | 70 lb-in (8 N·m) |
| Return Mechanism | Mechanical spring return |
| Rotation Direction | CW or CCW, determined by mounting orientation |
| Angular Travel | 95° |
| Motor Running Time | 15 seconds per 90° |
| Spring-Return Time | Less than 15 seconds |
| Running Power Consumption | 27 VA |
| Holding Power Consumption | 3 W / 6.5 VA |
| Transformer Sizing | 40 VA |
| Auxiliary Switches | 2 SPDT; switching points at 10° and 85° |
| Auxiliary Switch Rating | 7 A resistive / 2.5 A inductive at 250 VAC |
| Weight | 6.5 lb (3.0 kg) |
Information About FSNF24-S US
The FSNF24-S US is part of Belimo’s FSNF fire and smoke actuator range. Its mounting orientation determines the powered and spring-return directions. A galvanized steel housing encloses permanently lubricated steel gears, while mechanical indication shows actuator position. Separate power and auxiliary-switch cables provide the electrical connections.
Key Features:
- On/Off Control: Operates the connected damper between its commanded and spring-return positions.
- Rated Torque: Provides 70 lb-in (8 N·m) for compatible damper assemblies.
- Rapid Powered Travel: Provides a specified motor running time of 15 seconds per 90°.
- Mechanical Spring Return: Returns the damper in less than 15 seconds after power removal.
- Dual Auxiliary Switches: Includes two SPDT contacts with switching points at 10° and 85°.
- Reversible Mounting: Supports clockwise or counterclockwise operation according to installation orientation.
- Low-Voltage Supply: Operates from nominal 24 VAC or 24 VDC power.
- Indoor Enclosure: Features NEMA 1 and UL Enclosure Type 1 protection.
The FSNF24-S US delivers the reliability and precision required for rapid positioning and spring-return operation of compatible fire and smoke dampers.
