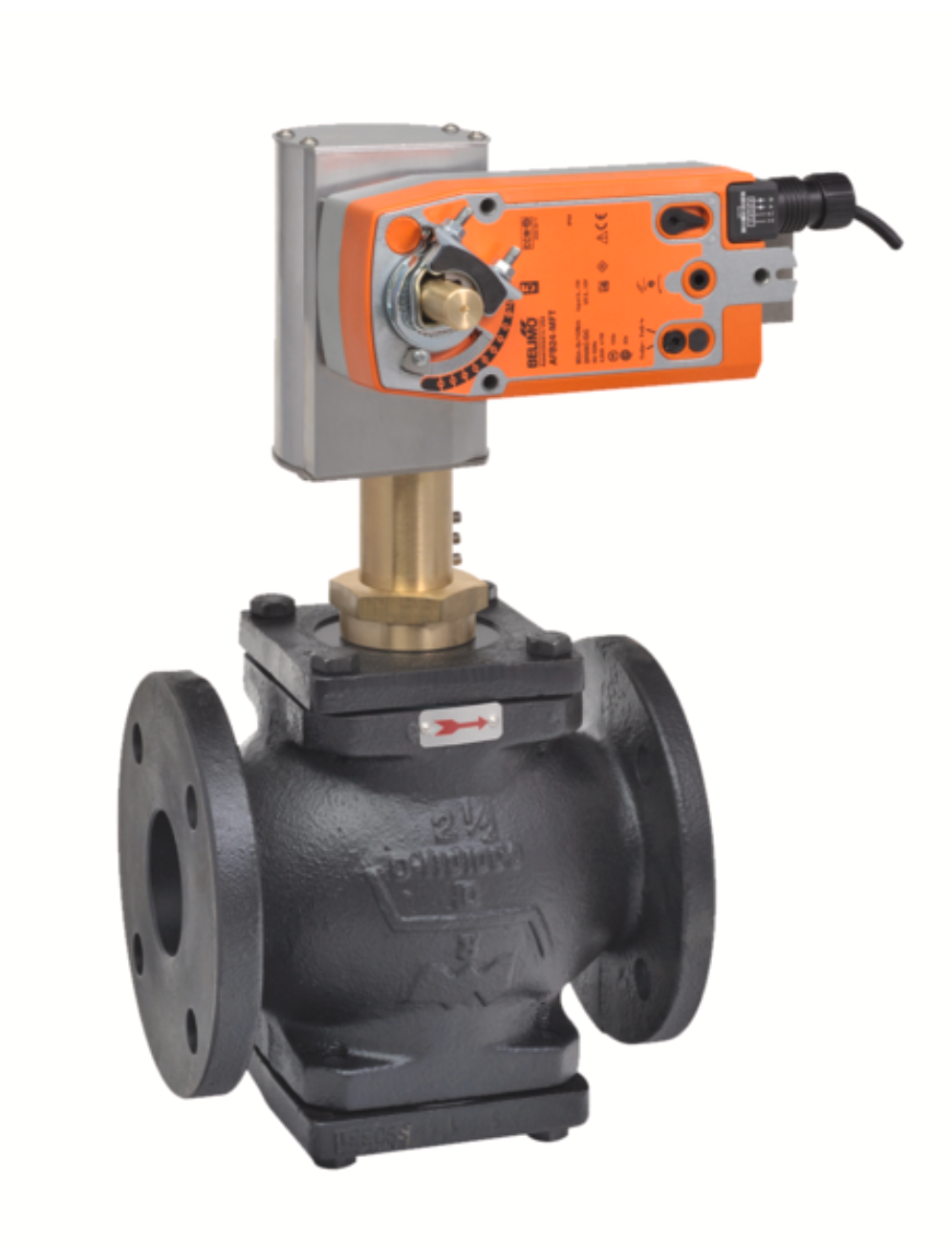

Belimo G665C-250+AFBUP-X1 2-1/2" 2-Way Globe Control Valve
- Regular price
- $3,092.00
- Sale price
- $3,092.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: G665C-250+AFBUP-X1
Description
The Belimo G665C-250+AFBUP-X1 is a 2-way, 2-1/2-inch globe control valve with a spring-return actuator for hydronic and steam applications. It provides a 65 Cv flow coefficient, equal-percentage flow control, and on/off operation with a wide-range AC/DC power supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Valves |
| Part Number | G665C-250+AFBUP-X1 |
| Subcategory | Control Valve |
| Valve Type | Globe Valve (GV) |
| Valve Pattern | 2-way |
| Valve Size | 2-1/2 in [65 mm] |
| ANSI Class | 125 |
| Flow Coefficient | 65 Cv |
| Flow Characteristic | Equal percentage |
| End Fitting | Flange |
| Trim Material | Bronze |
| Fluid | Chilled or hot water, up to 60% glycol, steam |
| Body Pressure Rating | ANSI Class 125, up to 175 psi below 150°F |
| Actuator Type | Electric, spring return |
| Control Type | On/Off |
| Operating Voltage | AC 24–240 V / DC 24–125 V |
| Power Consumption (Running) | 7 W |
| Power Consumption (Holding) | 3.5 W |
| Power Consumption for Wire Sizing | 18 VA |
| Fluid Temperature Range | 32°F to 338°F [0°C to 138°C] |
| Ambient Temperature | -22°F to 122°F [-30°C to 50°C] |
| Electrical Connection | 3 ft [0.9 m], 18 GA appliance cable with 1/2 in conduit connector |
| NEMA Rating | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Housing Protection | IP54 |
| Weight | 71.00 lbs |
Information About G665C-250+AFBUP-X1
The G665C-250+AFBUP-X1 combines an ANSI Class 125 globe valve with a spring-return electric actuator for HVAC fluid control. Its bronze trim and flanged connection design support chilled water, hot water, water-glycol mixtures up to 60%, and steam service. The actuator accepts AC 24–240 V or DC 24–125 V and provides on/off control with 7 W running and 3.5 W holding power consumption. The assembly is rated for fluid temperatures from 32°F to 338°F (0°C to 138°C) and ambient temperatures from -22°F to 122°F (-30°C to 50°C).
Key Features:
- Valve Pattern: 2-way globe valve configuration for controlled fluid flow.
- Valve Size: 2-1/2-inch [65 mm] valve body with flanged end connections.
- Flow Coefficient: Provides a 65 Cv rating for the specified valve assembly.
- Flow Characteristic: Equal-percentage characteristic for proportional flow response.
- Spring Return: Actuator provides automatic spring-return positioning when required.
- Control Type: On/off operation for straightforward valve positioning.
- Power Supply: Accepts AC 24–240 V or DC 24–125 V input.
- Fluid Compatibility: Suitable for chilled water, hot water, up to 60% glycol, and steam.
The G665C-250+AFBUP-X1 delivers the reliability and precision required for HVAC fluid control in hydronic and steam service applications.
