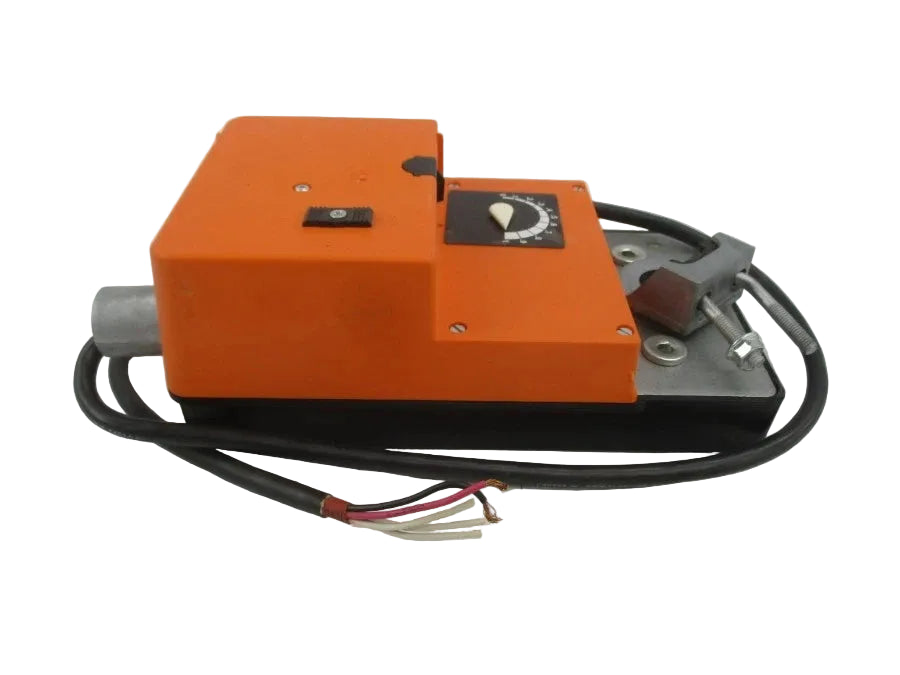

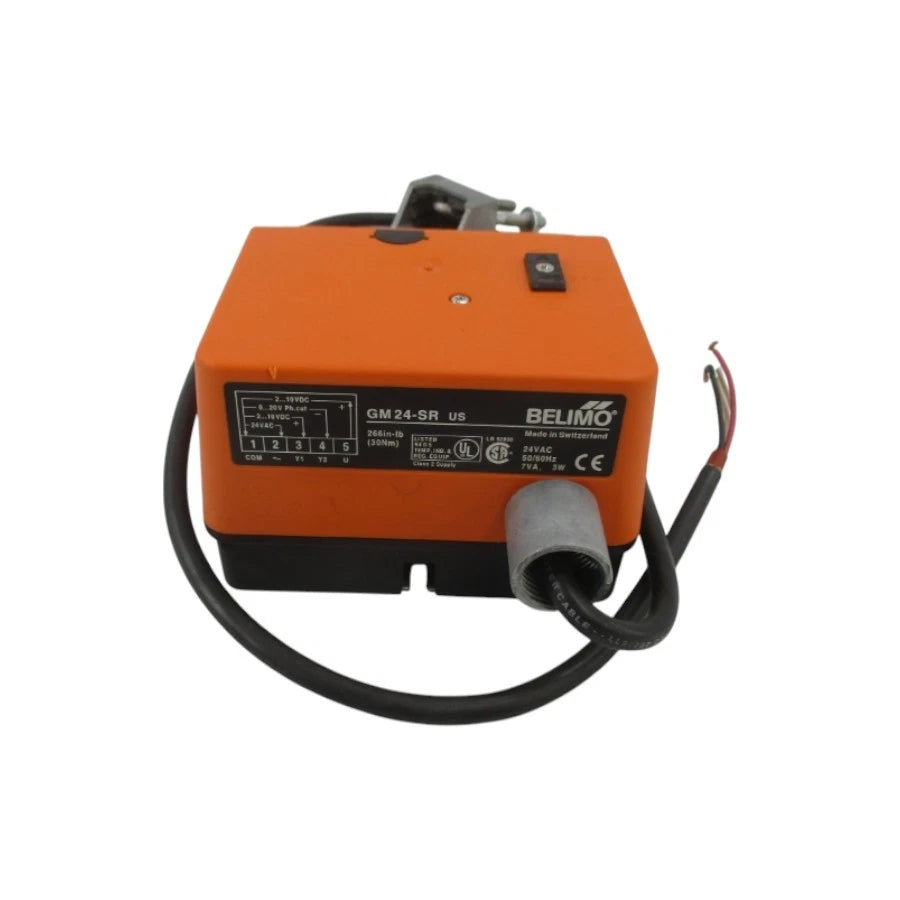

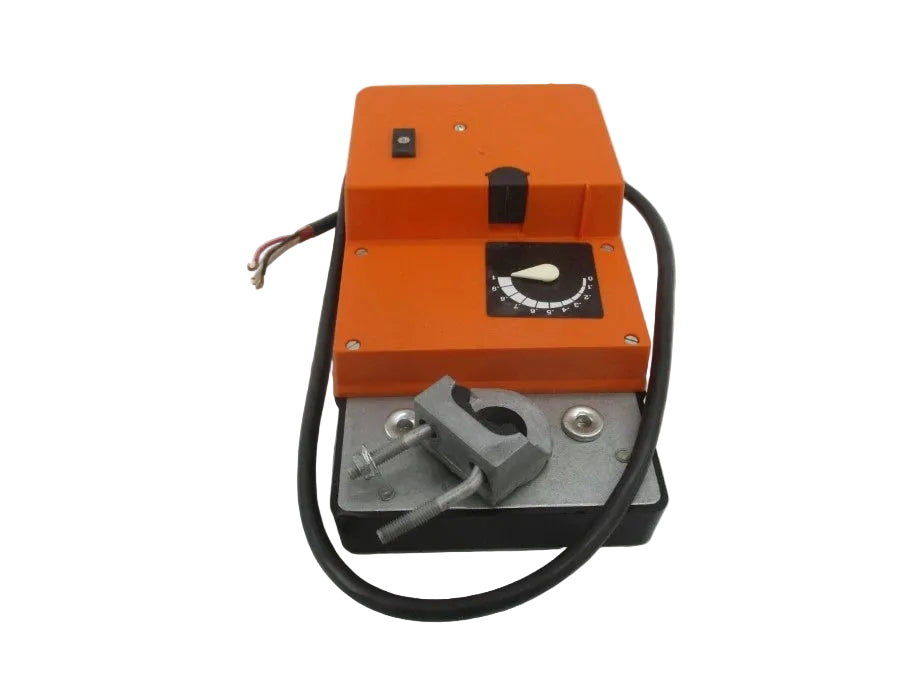

Belimo GM24-SR Modulating Damper Actuator 24V 30Nm
- Regular price
- $574.00
- Sale price
- $574.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GM24-SR
Description
The Belimo GM24-SR Actuator is a modulating damper actuator designed for precise airflow and ventilation control in commercial HVAC systems. Operating on 24V AC/DC power, the actuator delivers 30 Nm torque with proportional 0–10 V or 0–20 V control signal compatibility for accurate positioning performance. Its IP54 protection rating and overload-protected design support dependable operation in demanding environmental conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Controls |
| Part Number | GM24-SR |
| Subcategory | Damper Actuators |
| Product Type | Modulating Damper Actuator |
| Power Supply | AC 24 V / DC 24 V |
| Control Signals | DC 0–10 V or 0–20 V |
| Actuator Torque | 30 Nm |
| Rotation Angle | 95° Mechanically Limited |
| Running Time | 135 Seconds ±15 Seconds |
| Protection Rating | IP54 |
| Operating Temperature Range | –30 °C to +50 °C |
| Overload Protection | Yes |
| Manual Operation | Push Button with Automatic Return |
| Synchronization Tolerance | ±5% |
| Application | HVAC Damper Control |
| Operating Function | Airflow and Ventilation Regulation |
| Weight | 5 lb |
Information About GM24-SR
The GM24-SR is a modulating HVAC actuator manufactured by Belimo for damper control and building automation applications requiring proportional positioning accuracy. Designed for operation with AC/DC 24V power supplies, the actuator supports DC 0–10 V and 0–20 V phase control signals for integration into modern automation and energy management systems. The actuator provides 30 Nm torque output with a mechanically limited 95° rotation angle and includes overload protection that eliminates the need for end switches. Built with IP54 enclosure protection and manual override functionality, the unit supports reliable performance in operating temperatures ranging from –30 °C to +50 °C.
Key Features:
- 30 Nm Torque Output: Provides reliable damper positioning for HVAC airflow systems.
- Modulating Signal Control: Supports DC 0–10 V and 0–20 V proportional control inputs.
- 24V AC/DC Operation: Compatible with standard low-voltage building automation systems.
- IP54 Protection Rating: Protects internal components from dust and moisture exposure.
- 95° Rotation Angle: Enables accurate damper movement and airflow regulation.
- Overload Protection: Eliminates the requirement for end switches during operation.
- Manual Override Function: Allows manual actuator positioning with automatic return.
- Wide Temperature Range: Operates reliably from –30 °C to +50 °C environments.
The GM24-SR delivers the reliability and precision required for commercial HVAC damper and airflow control applications.
