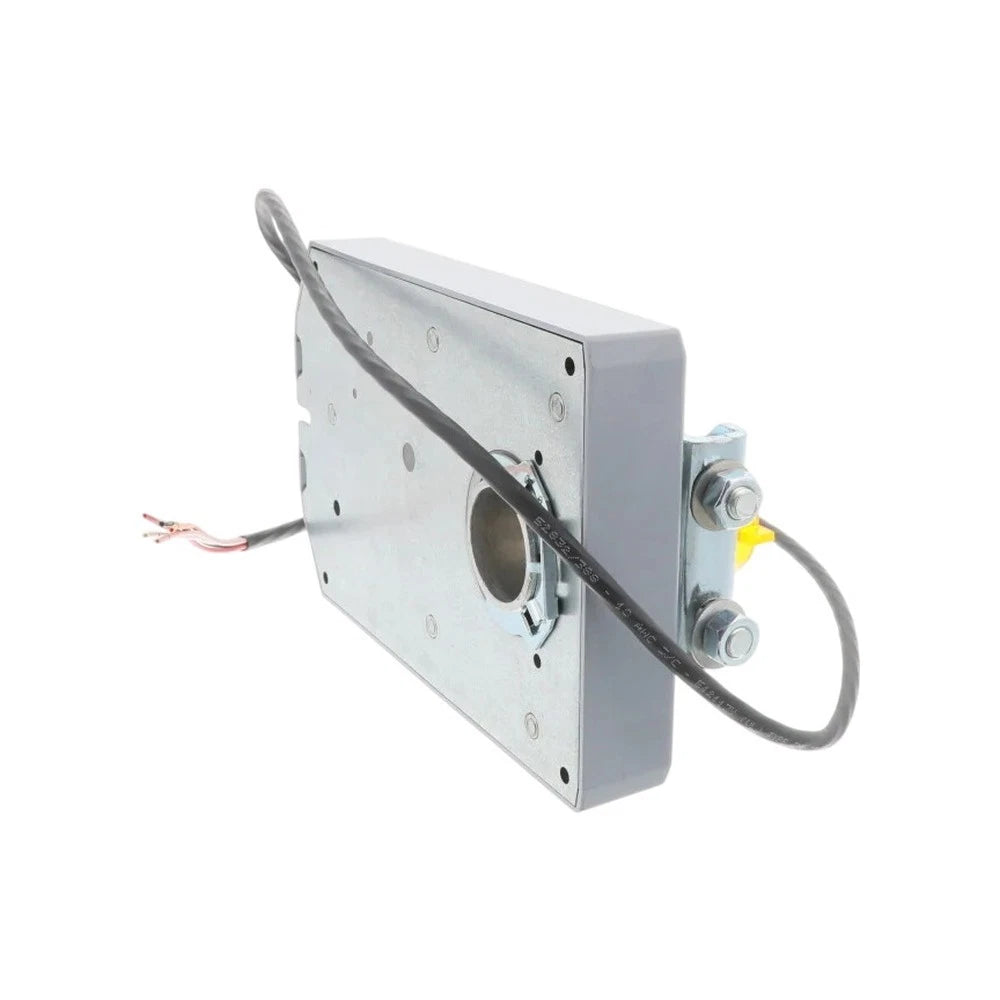

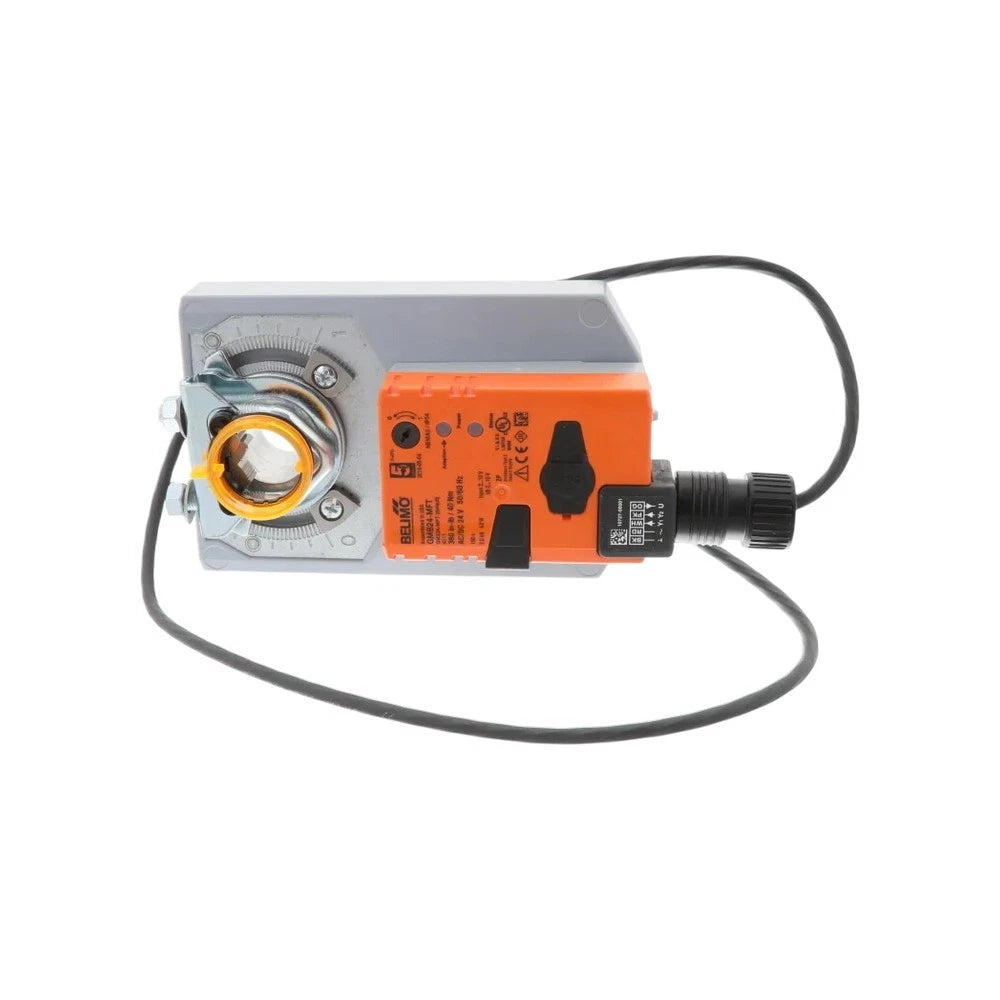

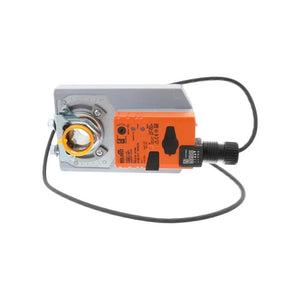

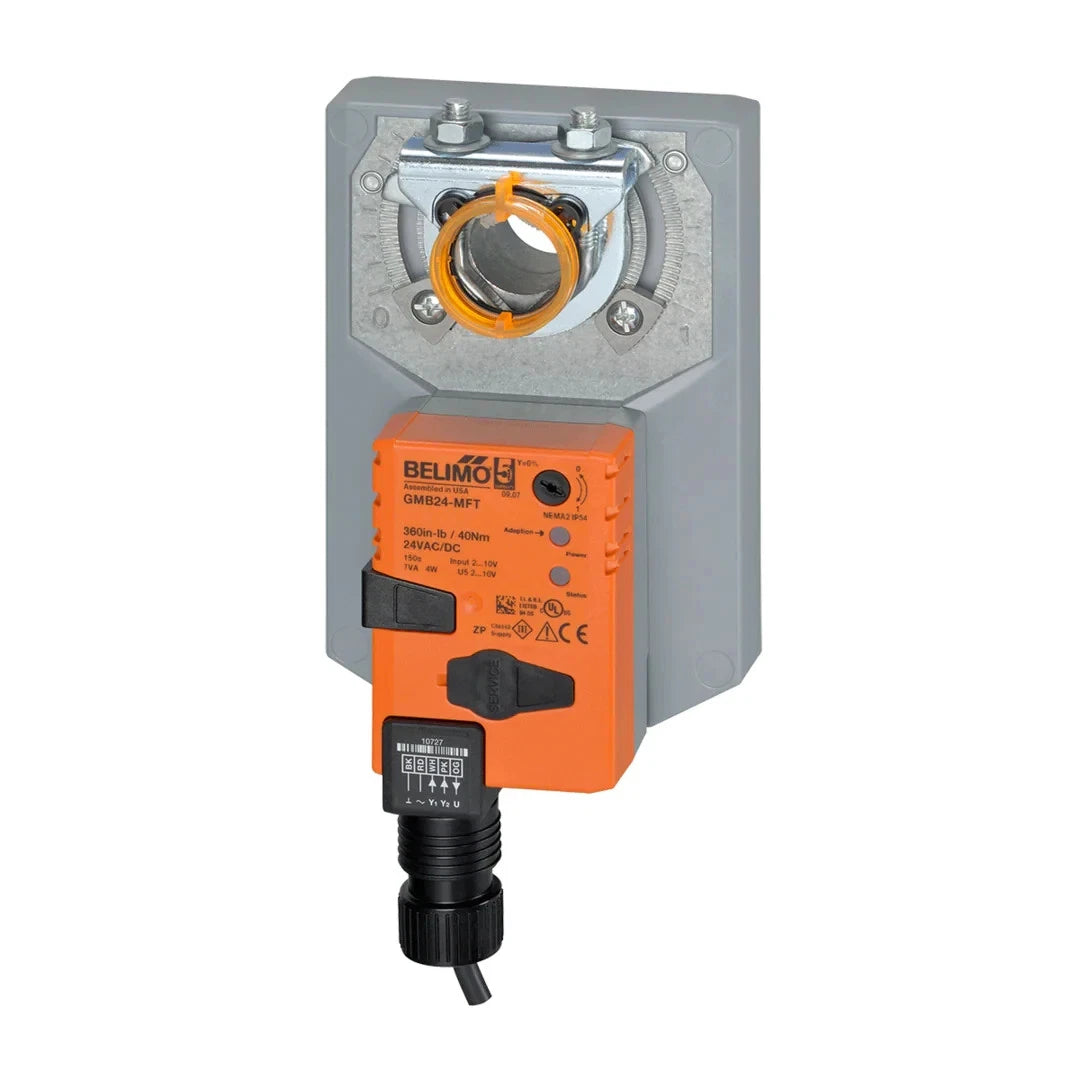

Belimo GMB24-MFT Programmable Non-Spring Return Damper Actuator
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GMB24-MFT
Description
The Belimo GMB24-MFT is a non-spring-return electric actuator for modulating HVAC dampers. It provides 360 lb-in (40 N·m) of torque and uses programmable Multi-Function Technology to match compatible control requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC |
| Part Number | GMB24-MFT |
| Subcategory | Non-Spring Return Damper Actuators |
| Actuator Type | Electric rotary damper actuator |
| Control Technology | MFT / programmable |
| Default Control Input | 2–10 VDC |
| Nominal Supply Voltage | 24 VAC/DC |
| AC Supply Frequency | 50/60 Hz |
| Rated Torque | 360 lb-in (40 N·m) |
| Return Type | Non-spring return / non-fail-safe |
| Running Power Consumption | 4 W |
| Holding Power Consumption | 1.5 W |
| Power Supply Sizing | 7 VA |
| Angular Travel | 95°; adjustable with mechanical stop |
| Motor Running Time | Default: 150 seconds per 90°; programmable range: 75–300 seconds |
| Manual Override | External push button |
| Enclosure Rating | NEMA 2 / UL Enclosure Type 2 |
| Weight | 4.1 lb (1.9 kg) |
Information About GMB24-MFT
The GMB24-MFT is part of Belimo’s GMB actuator range for commercial HVAC applications. Its brushless DC motor incorporates electronic overload protection and rotation monitoring. Factory-default operation uses a 2–10 VDC control signal, with parameters configurable through compatible Belimo tools. A universal shaft clamp supports direct mounting, while an external push button disengages the gears for manual positioning.
Key Features:
- High Output Torque: Delivers 360 lb-in (40 N·m) for compatible damper loads.
- Programmable Control: Uses MFT settings to configure supported operating parameters.
- Modulating Input: Provides factory-default 2–10 VDC proportional control.
- Adjustable Running Time: Offers a default 150-second travel time with a configurable range of 75–300 seconds.
- Non-Spring-Return Design: Operates without a mechanical spring-return mechanism.
- Selectable Direction: Uses the 0/1 switch to select the direction of motor movement.
- Manual Override: Allows gear disengagement through an external push button.
- Position Feedback: Supplies a 2–10 VDC signal for monitoring actuator position.
The GMB24-MFT delivers the reliability and precision required for programmable damper positioning in compatible commercial HVAC systems.
