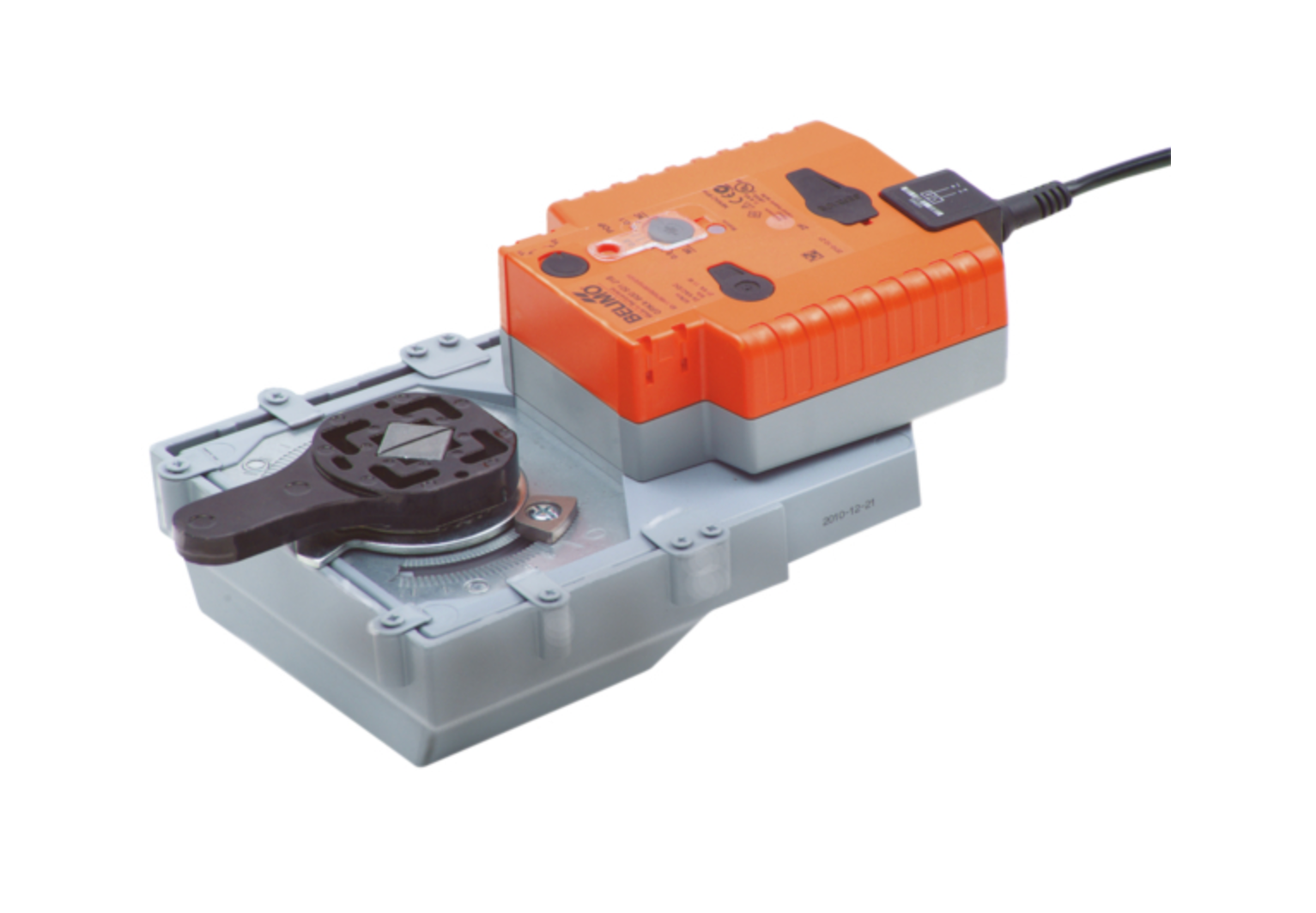

Belimo GRK24A-5 24V 40 Nm Spring Return Damper Actuator
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GRK24A-5
Description
The Belimo GRK24A-5 is a 24 VAC/DC fail-safe actuator designed for open/close control of HVAC dampers and rotary air-handling equipment. It provides 40 Nm of motor torque, 95° rotation, and a spring-return function with a 35-second fail-safe running time.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Damper Actuator |
| Part Number | GRK24A-5 |
| Subcategory | Spring Return Damper Actuator |
| Voltage AC/DC | AC/DC 24 V |
| Nominal Voltage Frequency | 50/60 Hz |
| Nominal Voltage Range | AC 19.2...28.8 V / DC 21.6...28.8 V |
| Power Consumption (Running) | 11 W |
| Power Consumption (Holding) | 3 W |
| Power Consumption for Wire Sizing | 21 VA |
| Connection Supply / Control | Cable 1 m, 2 x 0.75 mm² |
| Control Type | Open/close |
| Torque Motor | 40 Nm |
| Angle of Rotation | 95° |
| Running Time (Motor) | 150 s / 90° |
| Running Time (Fail-Safe) | 35 s / 90° |
| Fail-Safe Position Setting | Bridging time (POP) 2 s |
| Manual Override | Push-button |
| Position Indication | Mechanical |
| Connection Flange | F05 |
| Protection Category | IP54 |
| Degree of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Temperature | -30...50°C [-22...122°F] |
| Storage Temperature | -40...80°C [-40...176°F] |
| Servicing | Maintenance-free |
| Weight | 5.29 lbs |
Information About GRK24A-5
The GRK24A-5 is a rotary actuator with a spring-return mechanism for applications requiring automatic positioning during power loss. Its AC/DC 24 V supply and open/close control configuration support compatible low-voltage HVAC control systems. The actuator features an F05 connection flange, manual override through a push-button, and an adjustable fail-safe position using the POP rotary knob. NEMA 2 and UL Enclosure Type 2 protection, along with an operating temperature range of -30 to 50°C, support installation in the specified environmental conditions.
Key Features:
- 24 V Operation: Supports AC/DC 24 V power for low-voltage HVAC installations.
- 40 Nm Torque: Provides 40 Nm of motor torque for compatible damper applications.
- Open/Close Control: Uses two-position control for straightforward actuator operation.
- Spring Return: Provides automatic fail-safe positioning during power interruption.
- 95° Rotation: Provides the specified angular travel for rotary damper operation.
- Adjustable Fail-Safe Position: Allows fail-safe positioning to be configured using the POP rotary knob.
- Manual Override: Includes a push-button for manual actuator positioning.
- F05 Connection Flange: Uses an F05 flange connection for compatible equipment.
The GRK24A-5 delivers the reliability and precision required for open/close HVAC damper control and fail-safe rotary air-handling applications.
