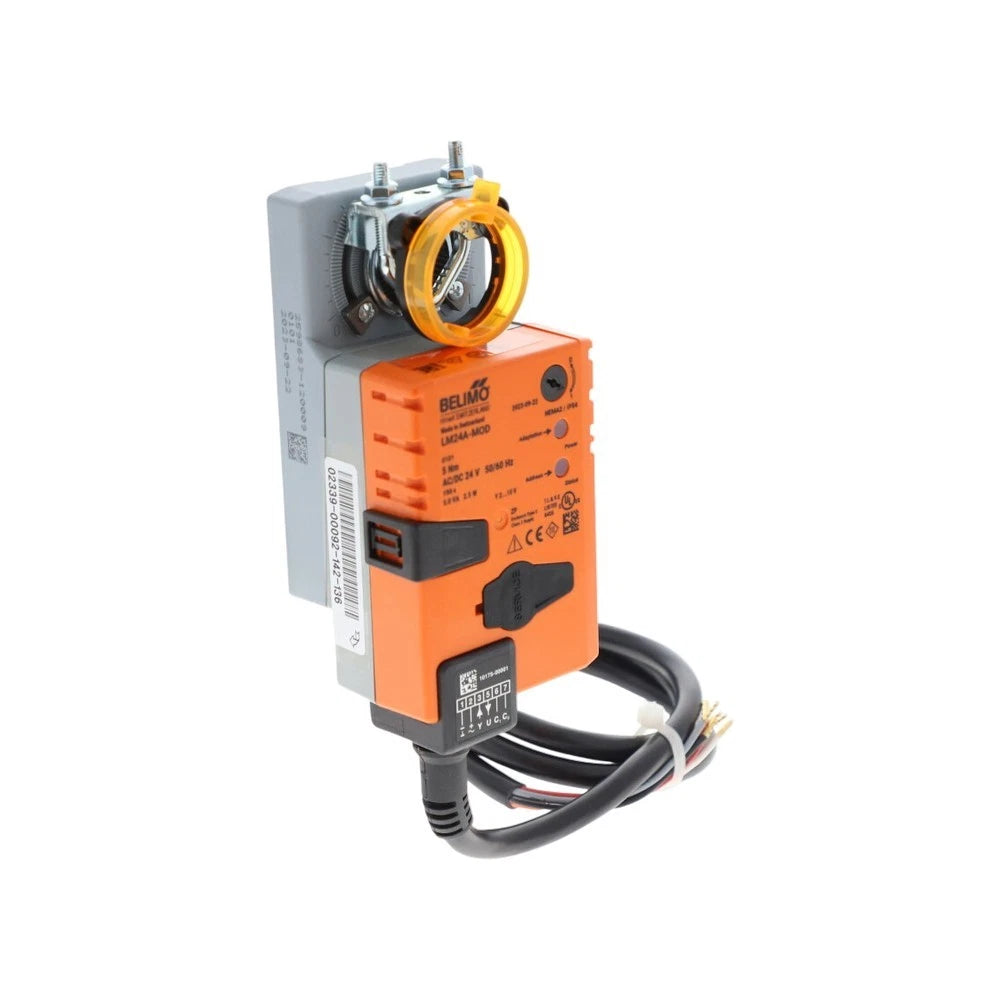

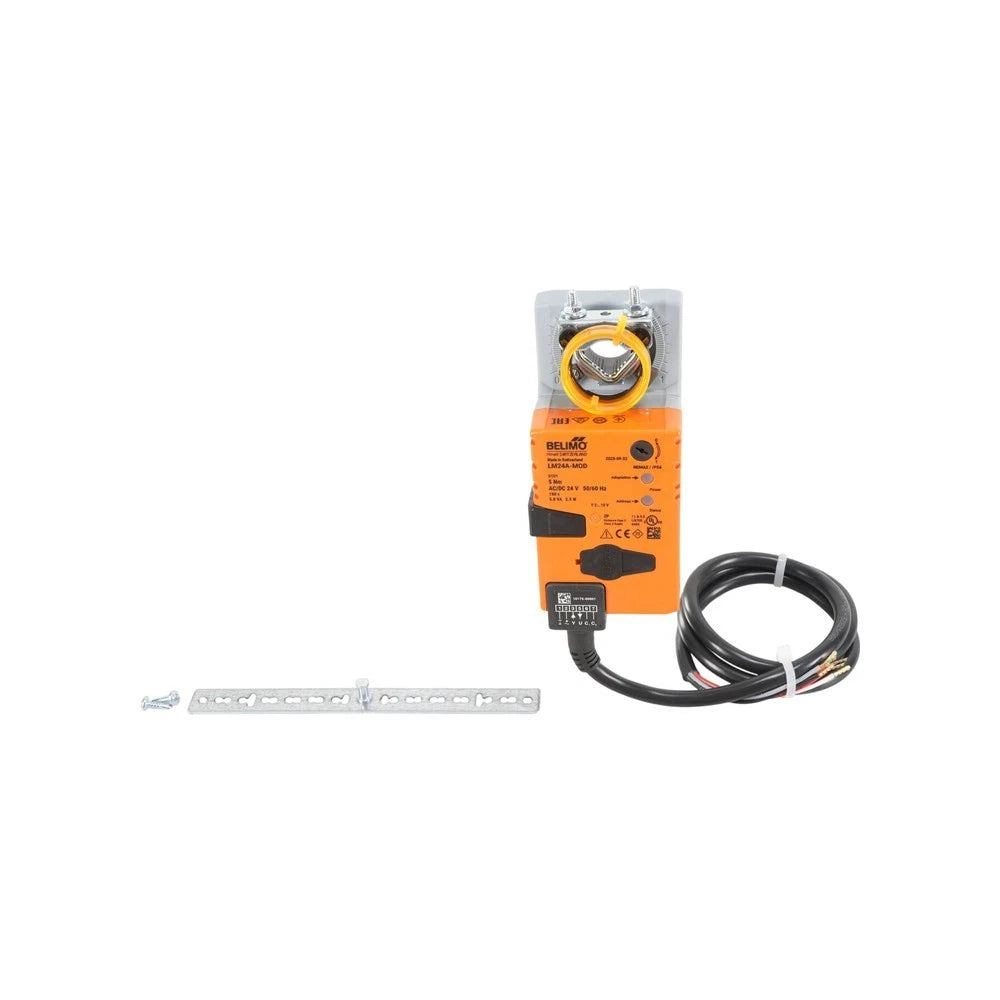

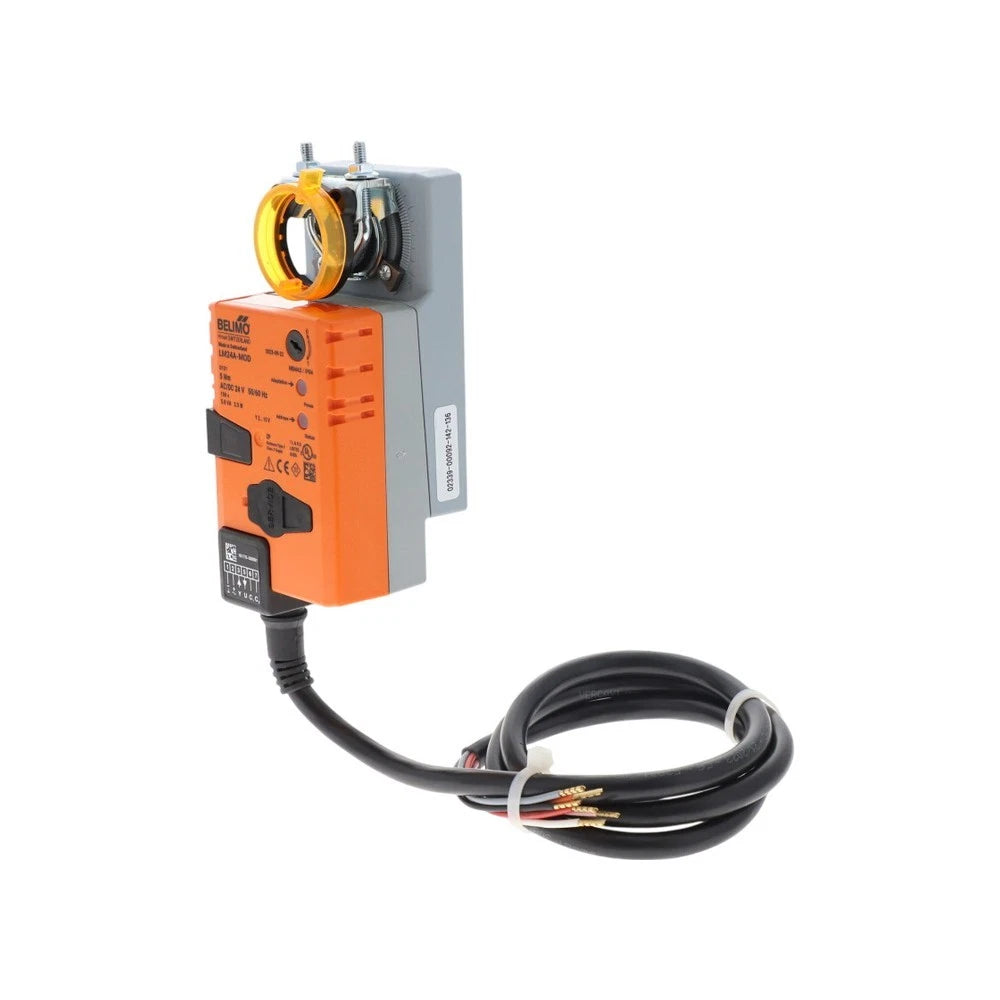

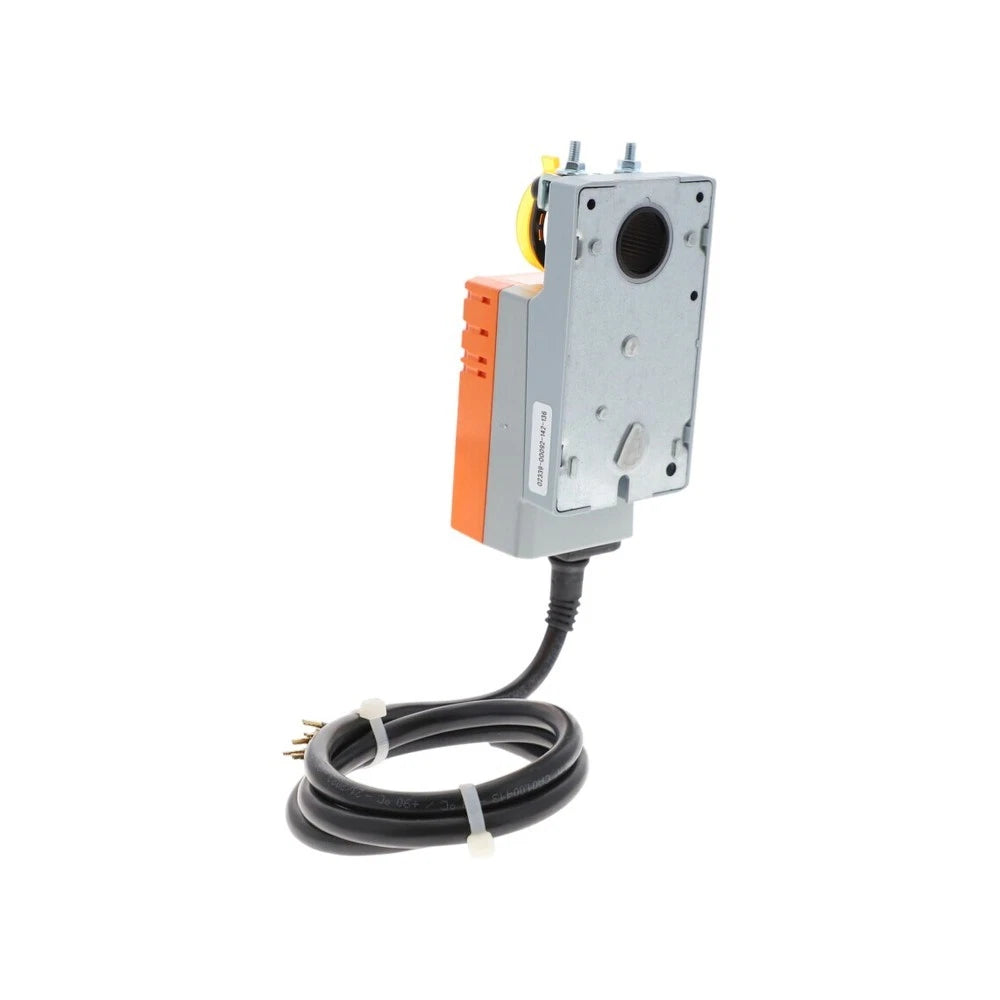

Belimo LM24A-MOD Rotary Damper Actuator 24V BACnet Modbus MP-Bus
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LM24A-MOD
Description
Belimo LM24A-MOD is a non-fail-safe rotary actuator designed for controlling air dampers in heating, ventilation, and air-conditioning systems. It provides 45 in-lb (5 Nm) of torque, operates on 24 VAC/DC, and supports BACnet MS/TP, Modbus RTU, MP-Bus, and analog 2–10 V control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Controls |
| Part Number | LM24A-MOD |
| Subcategory | Damper Actuators |
| Actuator Type | Rotary, Non-Fail-Safe |
| Application | HVAC Air Dampers |
| Power Supply | AC/DC 24 V |
| Torque | 45 in-lb (5 Nm) |
| Control Type | BACnet MS/TP, Modbus RTU, MP-Bus, DC 2–10 V, DC 0.5–10 V |
| Angle of Rotation | 95° |
| Running Time | 150 s / 90° |
| Adjustable Running Time | 35–150 s |
| Mechanical Interface | Universal shaft clamp, 6–20 mm |
| Manual Override | Push-button, lockable |
| Protection Rating | IP54 |
| NEMA Rating | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Humidity | Up to 95% RH, non-condensing |
| Power Consumption | 2.5 W running / 1.3 W holding |
| Wire Sizing | 5 VA |
| Connection | 3 ft (1 m), 6 × 0.75 mm² cable |
| Weight | 1.2 lb (0.55 kg) |
Information About LM24A-MOD
The LM24A-MOD is a Belimo communicative rotary actuator with a universal shaft clamp suitable for damper shafts from 6 to 20 mm. The actuator provides a 95° rotation angle and a nominal running time of 150 seconds per 90°, with an adjustable running time range of 35 to 150 seconds. It includes a lockable push-button manual override and selectable direction of rotation. The unit is designed for stationary HVAC applications and has IP54 protection, NEMA 2 enclosure protection, and maintenance-free operation.
Key Features:
- Rotary Actuator: Provides controlled rotary movement for HVAC air damper applications.
- 5 Nm Torque: Delivers 45 in-lb of torque for positioning compatible dampers.
- 24 VAC/DC Operation: Uses a 24 V AC or DC power supply for building automation installations.
- BACnet MS/TP Communication: Supports direct integration with compatible BACnet building automation networks.
- Modbus RTU Communication: Provides Modbus communication for monitoring and controlling the actuator.
- MP-Bus Compatibility: Supports Belimo MP-Bus communication for actuator networking and system integration.
- Adjustable Running Time: Allows the motor running time to be configured from 35 to 150 seconds.
- Manual Override: Includes a push-button manual override that can be locked during servicing or commissioning.
The LM24A-MOD delivers the reliability and precision required for HVAC damper control, building automation, air-handling equipment, and commercial ventilation systems.
