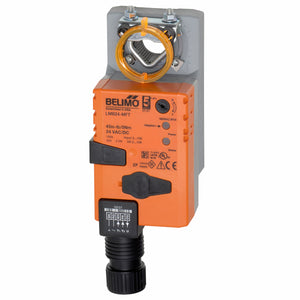

Belimo LMB24-MFT 24V Programmable Non-Spring-Return Damper Actuator, 45 in-lb, Modulating Control Meta Title
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LMB24-MFT
Description
The Belimo LMB24-MFT is a non-spring-return damper actuator designed for modulating airflow control in commercial HVAC systems. Operating on 24 VAC/VDC, it delivers 45 in-lb of torque and uses programmable Multi-Function Technology to accommodate different control requirements. Its direct-coupled design, adjustable running time, and position feedback support integration with building automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC & Building Automation |
| Part Number | LMB24-MFT |
| Subcategory | Damper Actuators |
| Series / Actuator Type | LMB Series; rotary; non-spring return; non-fail-safe |
| Nominal Supply Voltage | 24 VAC/VDC; 50/60 Hz with AC power |
| Operating Voltage Range | 19.2–28.8 VAC / 21.6–28.8 VDC |
| Power Consumption / Supply Sizing | 2.5 W running; 1.2 W holding; 5 VA supply sizing |
| Rated Torque | 45 in-lb |
| Control Input | Default 2–10 VDC; MFT configurable for voltage, PWM, floating-point, and on/off control |
| Current Input Compatibility | 4–20 mA with external ZG-R01 500-ohm, 1/4 W resistor |
| Position Feedback | 2–10 VDC; maximum 0.5 mA; configurable voltage range |
| Rotation / Direction | Maximum 95°; adjustable mechanical stop; direction selectable with 0/1 switch |
| Motor Running Time | 95 seconds per 90°; configurable from 35–150 seconds |
| Manual Override / Position Indication | External gear-release push button; mechanical position indicator |
| Shaft Mounting | Universal clamp for 1/4–5/8-inch round shafts; accessory clamp accommodates up to 3/4 inch |
| Electrical Connection | 18 AWG plenum cable with 1/2-inch NPT conduit connector |
| Enclosure / Ambient Conditions | NEMA 2; UL Enclosure Type 2; −22–122°F; maximum 95% RH, non-condensing |
| Weight | 1.2 lb |
Information About LMB24-MFT
The LMB24-MFT is part of Belimo’s LMB Series of electric rotary actuators for HVAC dampers. Its brushless DC motor incorporates electronic overload protection and digital rotation sensing to protect the drive during stalled conditions. The universal clamp mounts directly onto compatible round shafts from 1/4 inch to 5/8 inch in diameter, with an accessory clamp available for shafts up to 3/4 inch. Factory settings provide 2–10 VDC operation, while compatible configuration tools allow control parameters to be adjusted for the installation.
Key Features:
- Programmable Control: Supports configurable voltage, PWM, floating-point, and on/off operation through Multi-Function Technology.
- Torque Output: Delivers 45 in-lb for dampers sized according to the damper manufacturer’s requirements.
- Dual Supply Compatibility: Operates from either 24 VAC or 24 VDC power.
- Analog Input: Accepts a factory-default 2–10 VDC positioning signal.
- Current Signal Conversion: Supports 4–20 mA control using an external ZG-R01 500-ohm resistor.
- Position Feedback: Provides a 2–10 VDC output for monitoring actuator position.
- Adjustable Running Time: Allows motor travel time to be configured between 35 and 150 seconds.
- Reversible Rotation: Includes a 0/1 switch for selecting motor direction.
- Manual Override: Uses an external push button to disengage the gears for manual positioning.
- Adjustable Travel: Provides up to 95° rotation with a mechanical travel stop.
- Electronic Protection: Protects the drive against overload throughout its operating rotation.
- Reduced Holding Consumption: Uses 1.2 W while maintaining position.
The LMB24-MFT delivers the reliability and precision required for programmable damper positioning and airflow regulation in commercial HVAC systems.
