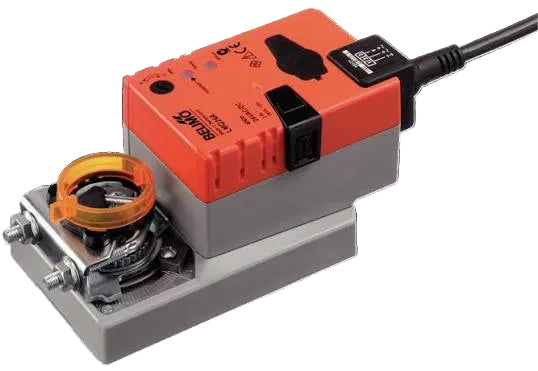

Belimo LMQ24A 24V 4Nm On/Off Damper Actuator with Universal Shaft Clamp
- Regular price
- $507.00
- Sale price
- $507.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LMQ24A
Description
The Belimo LMQ24A is a 24 V AC/DC rotary actuator designed for on/off control of dampers in HVAC air-handling systems. It provides 4 Nm of torque, a 95° rotation angle, and a 2.5-second running time per 90°, with a universal clamp interface for damper shafts from 8 to 26.7 mm.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Controls |
| Part Number | LMQ24A |
| Subcategory | Damper Actuators |
| Model | LMQ24A |
| Supply Voltage | AC/DC 24 V |
| Control Type | On/Off |
| Torque | 4 Nm |
| Power Consumption, Running | 13 W |
| Power Consumption, Holding | 2 W |
| Power Consumption for Sizing | 23 VA |
| Power/Control Cable | 1 m, 3 x 0.75 mm² |
| Rotation Angle | 95° |
| Running Time | 2.5 s / 90° |
| Rotation Direction | Selectable; position 0 counterclockwise, position 1 clockwise |
| Manual Override | Push-button, fixed or temporary |
| Mechanical Interface | Universal clamp, 8–26.7 mm |
| Ingress Protection | IP54 |
| NEMA Rating | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Temperature | -30 to 40°C (-22 to 104°F) |
| Weight | 2.18 lb |
Information About LMQ24A
The LMQ24A is part of Belimo’s range of compact damper actuators for air-control applications. It operates from either 24 V AC or DC and uses a selectable rotation direction with a built-in manual override button. The actuator uses a 1 m, 3-conductor power/control cable and supports fixed or temporary manual operation. Its IP54 enclosure, NEMA 2 rating, and -30 to 40°C operating range allow installation in protected HVAC equipment environments.
Key Features:
- 24 V AC/DC Operation: Supports both 24 V alternating-current and direct-current power supplies.
- 4 Nm Torque: Provides 4 Nm of actuator torque for damper positioning applications.
- On/Off Control: Uses a simple on/off control configuration for damper operation.
- Fast Operation: Completes 90° of rotation in approximately 2.5 seconds.
- Adjustable Rotation Direction: Rotation direction is selectable between counterclockwise and clockwise operation.
- Universal Shaft Clamp: Accommodates damper shafts with diameters from 8 to 26.7 mm.
- Manual Override: Includes a push-button manual override for fixed or temporary manual positioning.
- Environmental Protection: Provides IP54 protection with a NEMA 2 enclosure rating.
The LMQ24A delivers the reliability and precision required for on/off damper control in HVAC and air-handling systems.
