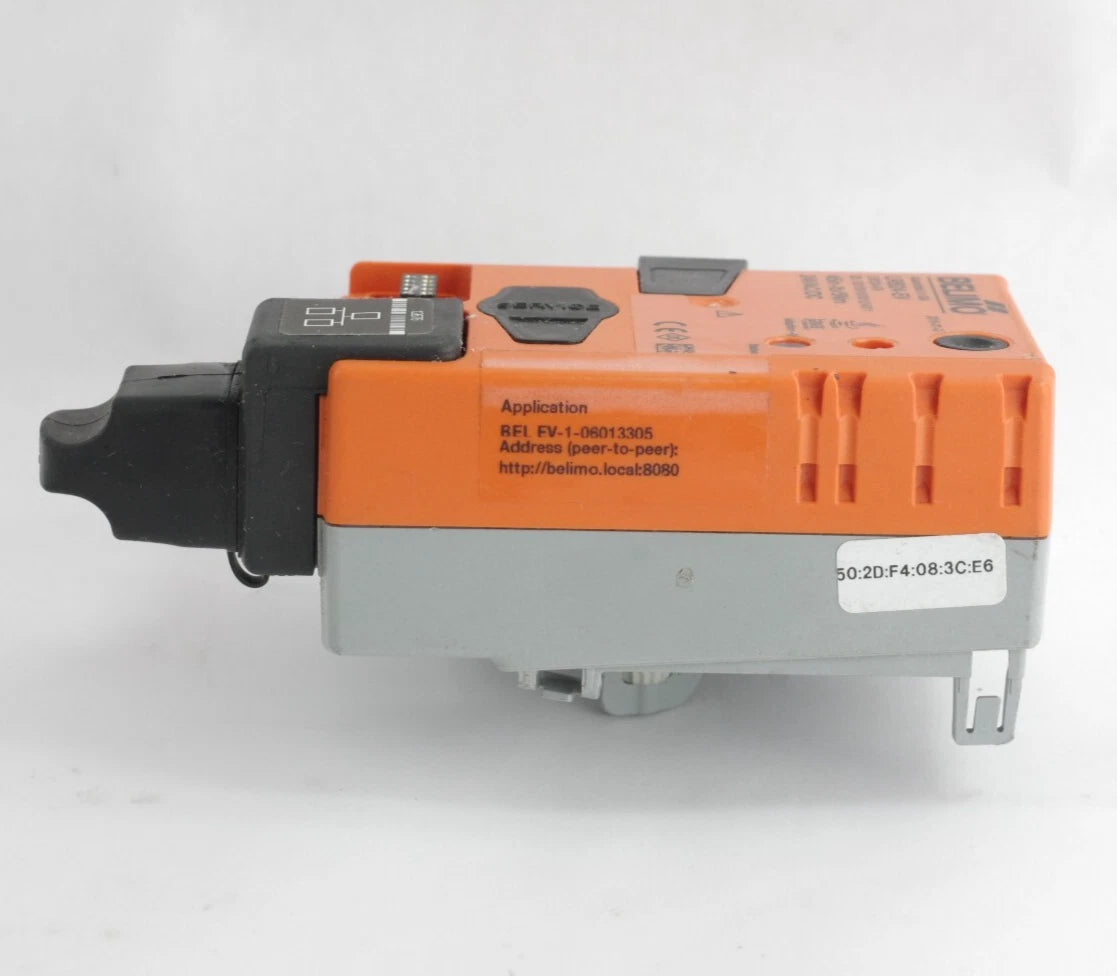

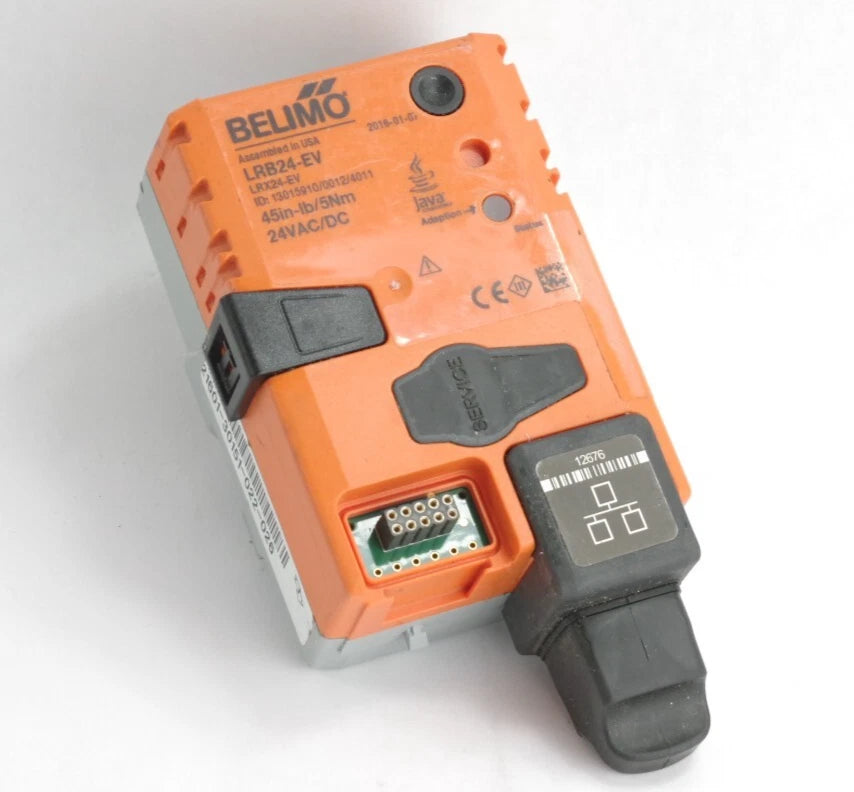

Belimo LRB24-EV 24V Modulating Non-Spring-Return Energy Valve Actuator, 45 in-lb, BACnet and Modbus
- Regular price
- $259.00
- Sale price
- $259.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LRB24-EV
Description
The Belimo LRB24-EV is a non-spring-return valve actuator designed for compatible Belimo Energy Valve assemblies in commercial HVAC systems. Operating on 24 VAC/VDC, it delivers 45 in-lb of torque and provides modulating valve positioning. Its analog control interface and network connectivity support integration with building automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC & Building Automation |
| Part Number | LRB24-EV |
| Subcategory | Electric Valve Actuators |
| Series / Application | LR Series; compatible Belimo Energy Valve assemblies |
| Actuator Type | Rotary; modulating; non-spring return |
| Rated Torque | 45 in-lb |
| Supply Voltage | 24 VAC ±20%, 50/60 Hz; 24 VDC ±10% |
| Power Consumption | 4 W during operation |
| Power Supply Sizing | 7 VA; Class 2 power source |
| Control Input | Default 2–10 VDC; 4–20 mA with external ZG-R01 500-ohm, 1/4 W resistor |
| Feedback Output | Default 2–10 VDC; configurable |
| Communications | BACnet IP; BACnet MS/TP; Modbus RTU; Modbus TCP; MP-Bus |
| Electrical Connection | 18 AWG plenum cable and RJ45 Ethernet socket |
| Rotation / Running Time | 90° with adjustable mechanical stop; 90-second motor running time |
| Direction / Manual Override | Direction configurable through web interface; external manual-release push button |
| Enclosure Ratings | IP54; NEMA 1; UL Enclosure Type 1 |
| Ambient Operating Conditions | −22–122°F; maximum 95% RH, non-condensing |
| Weight | 1.54 lb |
Information About LRB24-EV
The LRB24-EV is an LR Series rotary actuator incorporating Belimo’s Shared Logic Technology for Energy Valve applications. It supports a default 2–10 VDC control signal, with 4–20 mA operation available through an external conversion resistor. An Ethernet connection provides access to the web interface for configuration and operating information. The actuator works with the matching valve and sensing components to support hydronic heating and cooling control.
Key Features:
- Modulating Operation: Adjusts compatible valve position in response to the control demand.
- Rated Torque: Delivers 45 in-lb for the specified valve application.
- Dual Power Compatibility: Accepts 24 VAC or 24 VDC power.
- Non-Spring-Return Design: Provides motor-driven positioning without mechanical spring-return operation.
- Analog Control Input: Uses a default 2–10 VDC command signal.
- Current Signal Option: Accepts 4–20 mA through an external ZG-R01 500-ohm resistor.
- Analog Feedback: Provides a default 2–10 VDC feedback output.
- Network Integration: Supports BACnet IP, BACnet MS/TP, Modbus RTU, Modbus TCP, and MP-Bus.
- Manual Override: Includes an external push button for manual gear disengagement.
- Electronic Protection: Provides overload protection throughout its operating rotation.
The LRB24-EV delivers the reliability and precision required for modulating valve positioning in compatible hydronic energy-management systems.
