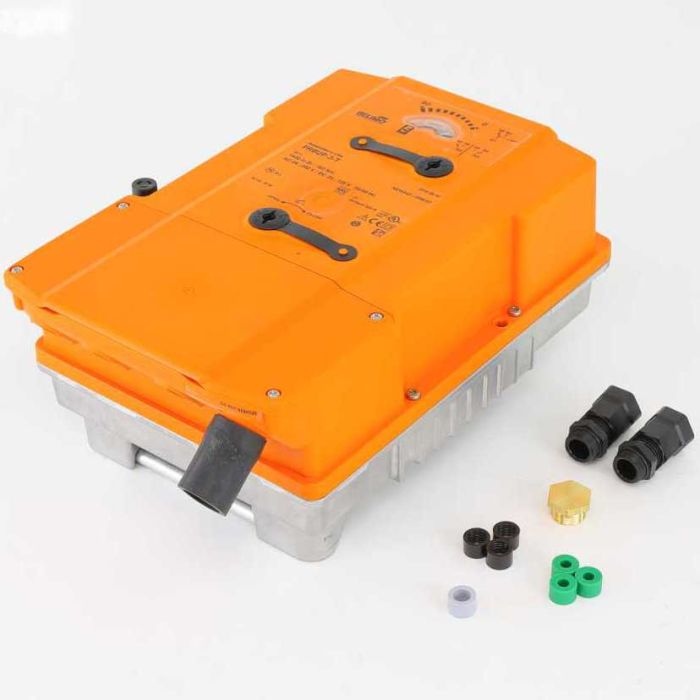

PRBUP-3-T-200 | Belimo Butterfly Valve Actuator 24–240 Vac On Off Floating Nema 4X
- Regular price
- $2,168.00
- Sale price
- $2,168.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PRBUP-3-T-200
Description
The Belimo PRBUP-3-T-200 is an electric butterfly valve actuator designed for on/off and floating point control in large-diameter HVAC and industrial valve applications. It operates across a wide AC/DC voltage range and includes integrated auxiliary switches for reliable position signaling and system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Control Components |
| Part Number | PRBUP-3-T-200 |
| Subcategory | Butterfly Valve Actuators |
| Actuator Type | Electric, Non-Spring Return |
| Compatible Valve Size | 2 in to 24 in |
| Nominal Voltage | AC 24–240 V / DC 24–125 V |
| Frequency | 50/60 Hz |
| Voltage Range | AC 19.2–264 V / DC 19.2–137.5 V |
| Power Consumption (Operation) | 23 W |
| Power Consumption (Rest) | 7.5 W |
| Transformer Sizing | 23 VA @ 24 V / 55 VA @ 240 V |
| Control Type | On/Off, Floating Point |
| Auxiliary Switches | 2 × SPDT |
| Switching Capacity | 1 mA–3 A, up to 250 VAC |
| Electrical Connection | Terminal blocks with PE ground |
| Torque Output | Suitable for 2–24 in butterfly valves |
| Angle of Rotation | 90° |
| Running Time | 35 s / 90° |
| Manual Override | 7 mm hex crank (included) |
| Overload Protection | Electronic, full rotation |
| Position Indication | Integral mechanical pointer |
| Degree of Protection | IP66/67 |
| Enclosure Rating | NEMA 4X |
| Ambient Temperature | −30…50°C |
| Storage Temperature | −40…80°C |
| Weight | 13 lb (6.1 kg) |
Information About PRBUP-3-T-200
The PRBUP-3-T-200 is a Belimo butterfly valve actuator engineered for demanding HVAC and industrial flow control applications. It is designed to mount on butterfly valves ranging from 2 inches to 24 inches in diameter, supporting both on/off and floating control strategies. The actuator features a wide voltage input range, allowing it to be deployed across diverse electrical infrastructures without modification. Its rugged enclosure and integrated auxiliary switches support reliable operation, position feedback, and long-term durability in harsh mechanical room or outdoor environments.
Key Features
- Wide voltage compatibility: Supports AC and DC power supplies across an extended voltage range to simplify system standardization.
- Large valve application support: Designed for direct mounting on butterfly valves from 2 inches up to 24 inches in diameter.
- On/off and floating control modes: Provides flexible control strategies for diverse HVAC and industrial automation requirements.
- Integrated auxiliary switches: Includes two SPDT switches for position indication, interlocking, or status monitoring functions.
- Rugged environmental protection: IP66/67 and NEMA 4X ratings enable reliable operation in washdown and outdoor-rated installations.
- Electronic overload protection: Protects internal components throughout the full rotation range to enhance service life.
- Manual override capability: Supplied with a hex crank to allow manual positioning during commissioning or maintenance.
The PRBUP-3-T-200 delivers the reliability and precision required for dependable actuation of large butterfly valves in demanding HVAC and industrial control systems.
