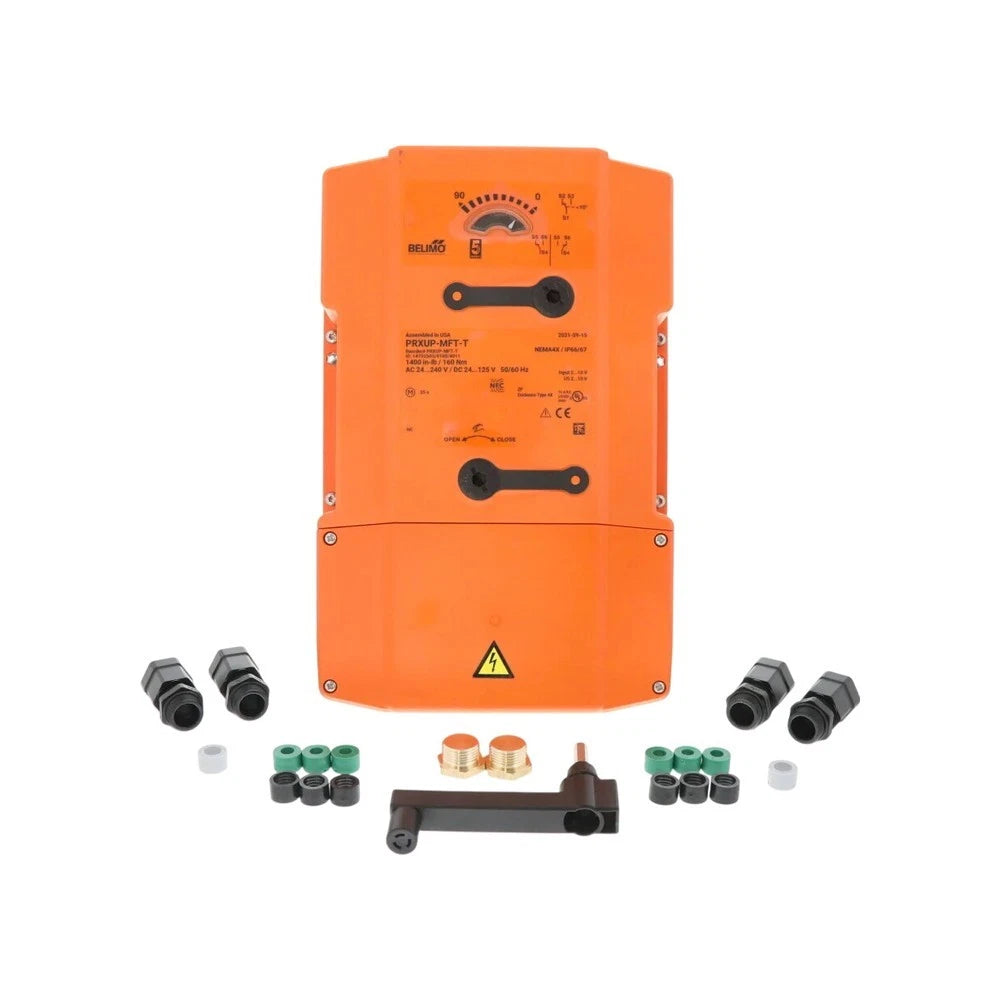

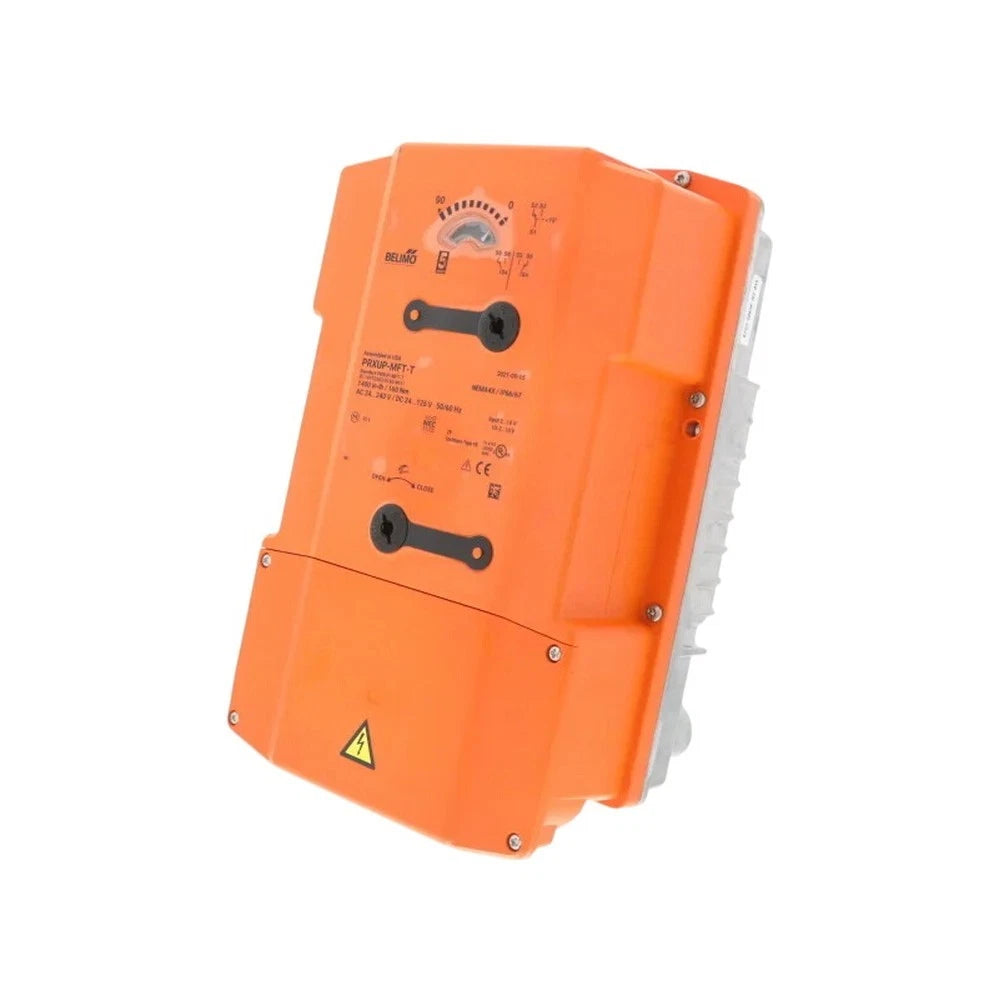

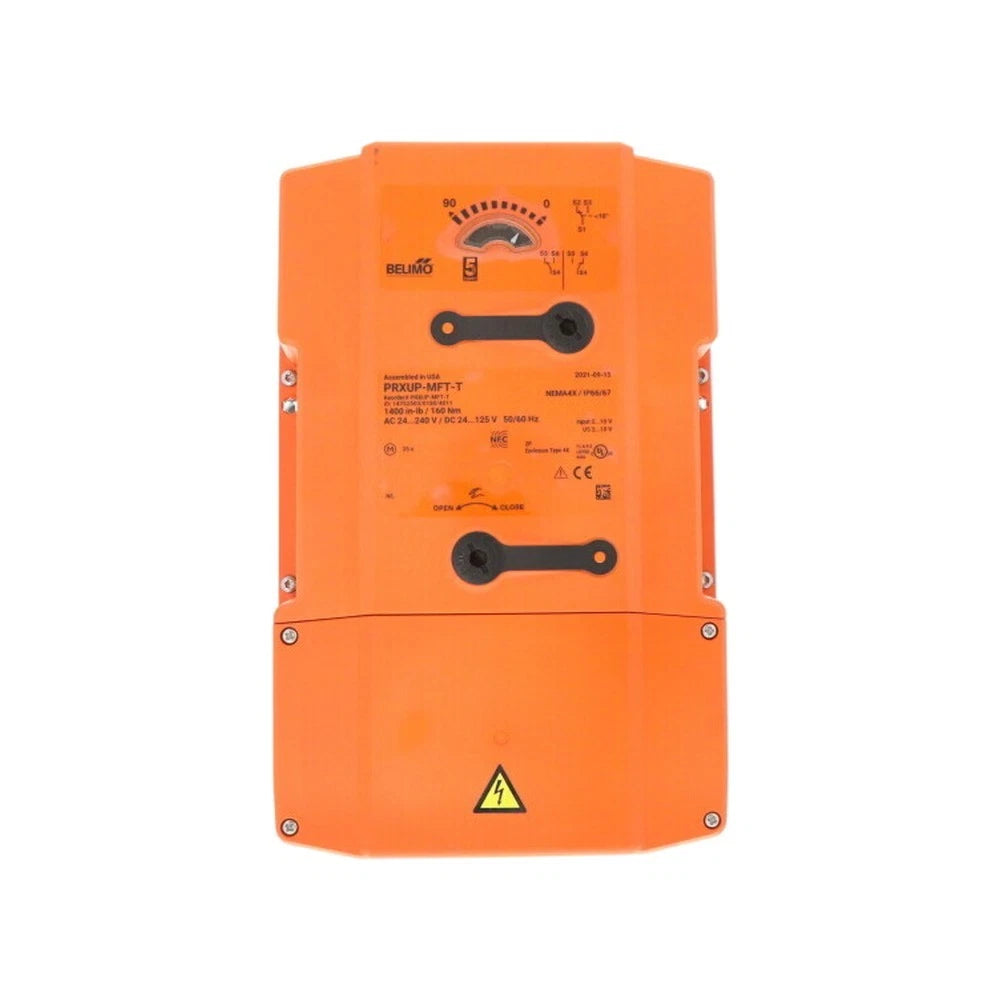

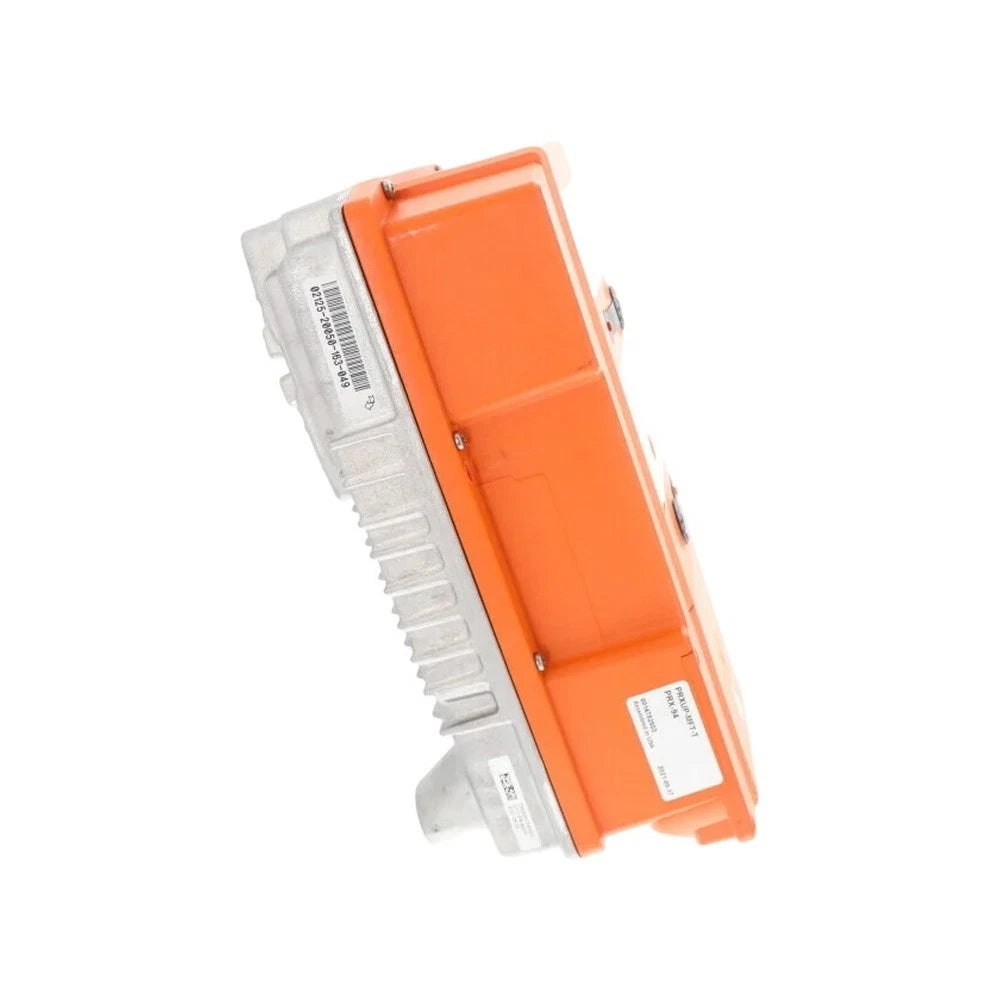

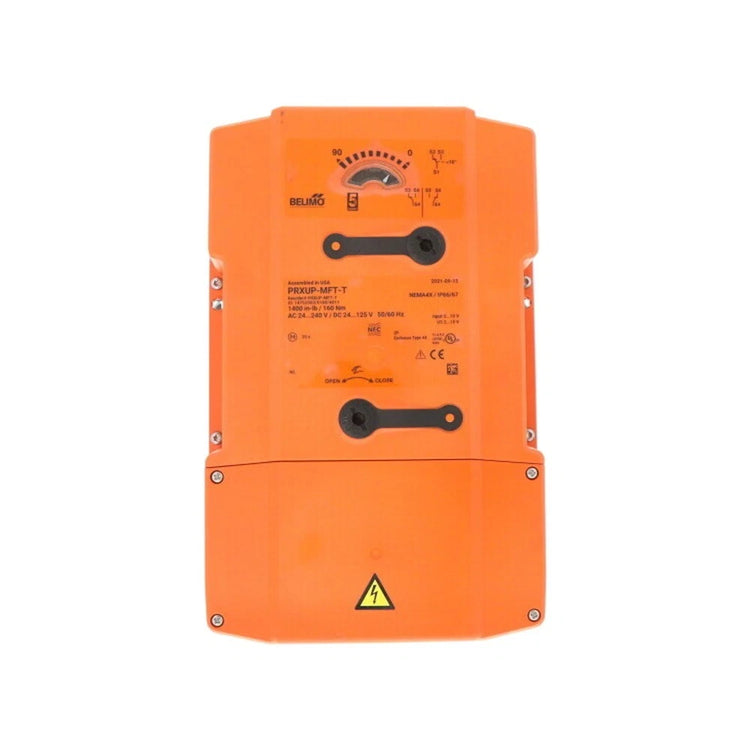

Belimo PRXUP-MFT-T 1400 in-lb Rotary Valve Actuator BACnet Modbus
- Regular price
- $6,199.00
- Sale price
- $6,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PRXUP-MFT-T
Description
Belimo PRXUP-MFT-T is a non-fail-safe rotary valve actuator designed for controlling large butterfly valves in HVAC and hydronic systems. It provides 1,400 in-lb (160 Nm) of torque, supports a universal AC/DC power supply, and includes BACnet MS/TP, Modbus RTU, MP-Bus, and configurable 2–10 V control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Controls |
| Part Number | PRXUP-MFT-T |
| Subcategory | Valve Actuators |
| Actuator Type | Rotary, Non-Fail-Safe |
| Torque | 1,400 in-lb (160 Nm) |
| Power Supply | AC 24–240 V / DC 24–125 V |
| Power Consumption | 24 W running / 8 W holding |
| Wire Sizing | 24 VA at 24 V / 56 VA at 240 V |
| Auxiliary Switches | 2 × SPDT |
| Control Type | BACnet MS/TP, Modbus RTU, MP-Bus, DC 2–10 V, DC 0.5–10 V |
| Angle of Rotation | 90° |
| Running Time | 35 s / 90° |
| Adjustable Running Time | 30–120 s |
| Manual Override | 7 mm hex crank |
| Protection Rating | NEMA 4X |
| UL Enclosure | Type 4X |
| Ambient Temperature | -22°F to 122°F (-30°C to 50°C) |
| Humidity | Up to 100% RH |
| Housing Material | Die-cast aluminum and plastic |
| Motor Type | Brushless DC |
| Weight | 13 lb (6.0 kg) |
Information About PRXUP-MFT-T
The PRXUP-MFT-T is a Belimo PR Series configurable valve actuator with a 90° rotation angle and an electronically protected brushless DC motor. It accepts AC 24–240 V or DC 24–125 V power and provides two SPDT auxiliary switches for valve position indication and control. The actuator has an adjustable running time from 30 to 120 seconds and includes a 7 mm hex manual override for servicing and commissioning. Its NEMA 4X / UL Type 4X enclosure and integrated heater make it suitable for demanding indoor and outdoor valve-control installations.
Key Features:
- High Torque Output: Provides 1,400 in-lb (160 Nm) of torque for operating large butterfly valves.
- Universal Power Supply: Accepts AC 24–240 V or DC 24–125 V for flexible installation.
- Configurable Control: Supports DC 2–10 V and DC 0.5–10 V control signals with programmable functionality.
- Building Automation Communication: Supports BACnet MS/TP, Modbus RTU, and Belimo MP-Bus communication.
- Two Auxiliary Switches: Includes 2 SPDT auxiliary switches for valve position indication and control functions.
- Adjustable Running Time: Allows the motor running time to be configured from 30 to 120 seconds.
- 90° Rotation: Provides the standard quarter-turn rotation required for compatible butterfly valve applications.
- NEMA 4X Protection: Features a UL Type 4X enclosure suitable for demanding environmental conditions.
The PRXUP-MFT-T delivers the reliability and precision required for HVAC valve control, hydronic systems, large butterfly valves, and building automation applications.
