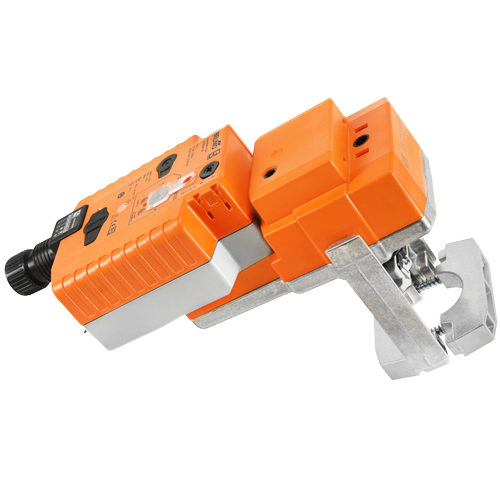

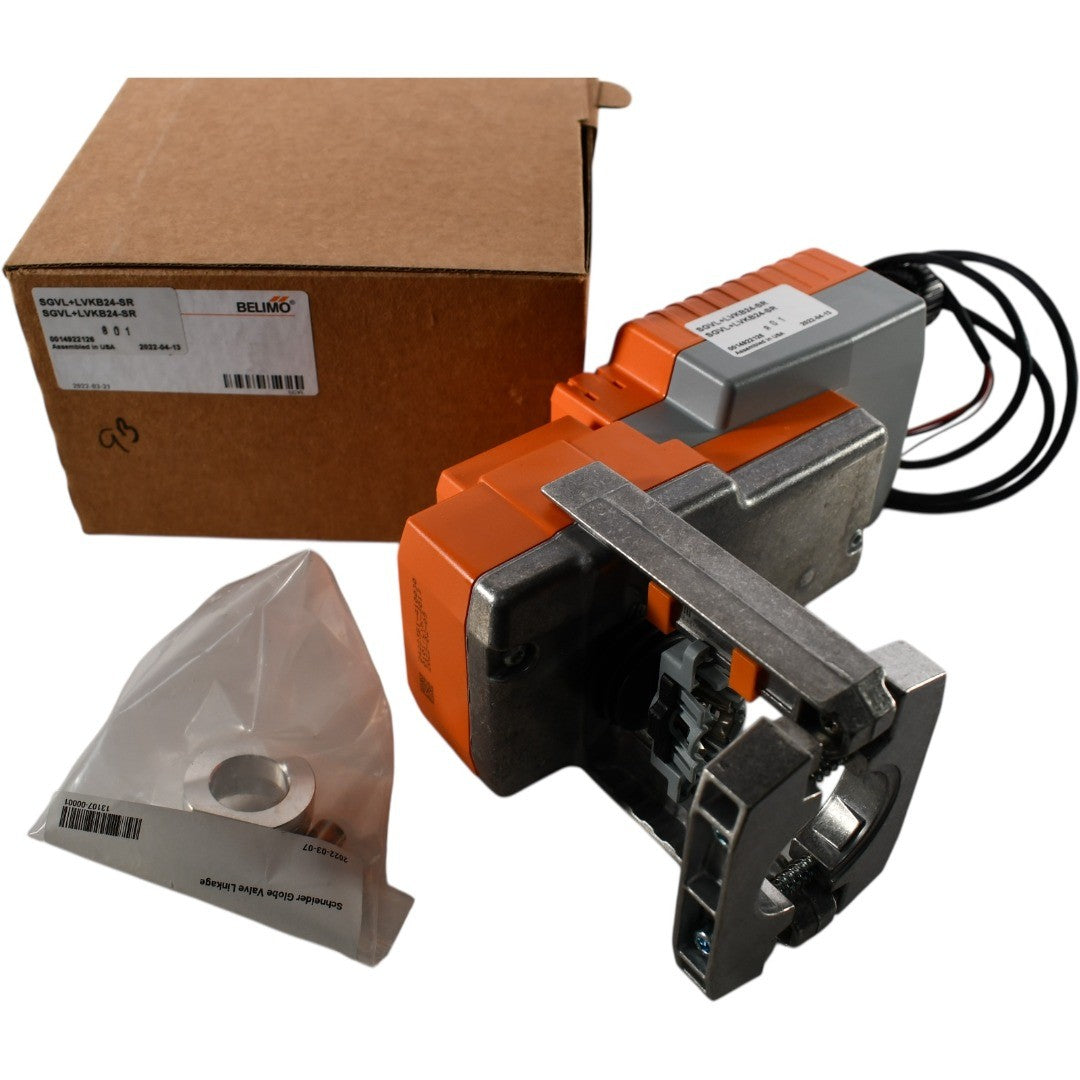

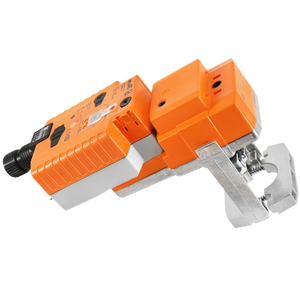

Belimo SGVL+LVKB24-SR Retrofit Globe Valve Linkage Actuator
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SGVL+LVKB24-SR
Description
The Belimo SGVL+LVKB24-SR is a retrofit globe valve linkage with an electronic fail-safe actuator designed for Schneider globe valves with LV and SV Series actuators. It operates on AC/DC 24 V power and provides modulating 2–10 V control with 511 N of actuator force for reliable valve positioning in HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Valve Actuator |
| Part Number | SGVL+LVKB24-SR |
| Subcategory | Electronic Fail-Safe Valve Actuator |
| Application | Schneider Globe Valves with LV and SV Series Actuators |
| Actuator Type | Electronic fail-safe |
| Voltage | AC/DC 24 V |
| Control Type | Modulating, 2–10 V |
| Power Consumption (Running) | 2.5 W |
| Power Consumption (Holding) | 1.5 W |
| Nominal Frequency | 50/60 Hz |
| Actuator Force | 115 lbf [511 N] |
| Running Time | 90 s, constant independent of load |
| Enclosure | NEMA 2 |
| Ambient Temperature | -22...122°F [-30...50°C] |
| Weight | 3.97 lbs |
Information About SGVL+LVKB24-SR
The SGVL+LVKB24-SR combines a globe valve linkage with a Belimo electronic fail-safe motor actuator for retrofit applications. The actuator operates at AC/DC 24 V and uses a modulating 2–10 V control signal for proportional valve positioning. Its 90-second running time remains constant independent of load, while the NEMA 2 enclosure supports installation in commercial HVAC environments. The assembly is designed for Schneider globe valves equipped with LV and SV Series actuators and operates within an ambient temperature range of -22°F to 122°F [-30°C to 50°C].
Key Features:
- Retrofit Linkage: Provides a mechanical linkage solution for Schneider globe valves with LV and SV Series actuators.
- Electronic Fail-Safe: Provides fail-safe actuator functionality for controlled valve positioning.
- 24 V Operation: Supports AC/DC 24 V power for HVAC control applications.
- Modulating Control: Uses a 2–10 V control signal for proportional valve adjustment.
- 511 N Force: Delivers 511 N [115 lbf] of actuator force for globe valve operation.
- 90-Second Running Time: Provides a constant 90-second running time independent of load.
- NEMA 2 Enclosure: Provides enclosure protection suitable for specified indoor HVAC installations.
- Wide Ambient Range: Operates from -22°F to 122°F [-30°C to 50°C].
The SGVL+LVKB24-SR delivers the reliability and precision required for retrofit globe valve control and modulating HVAC applications.
