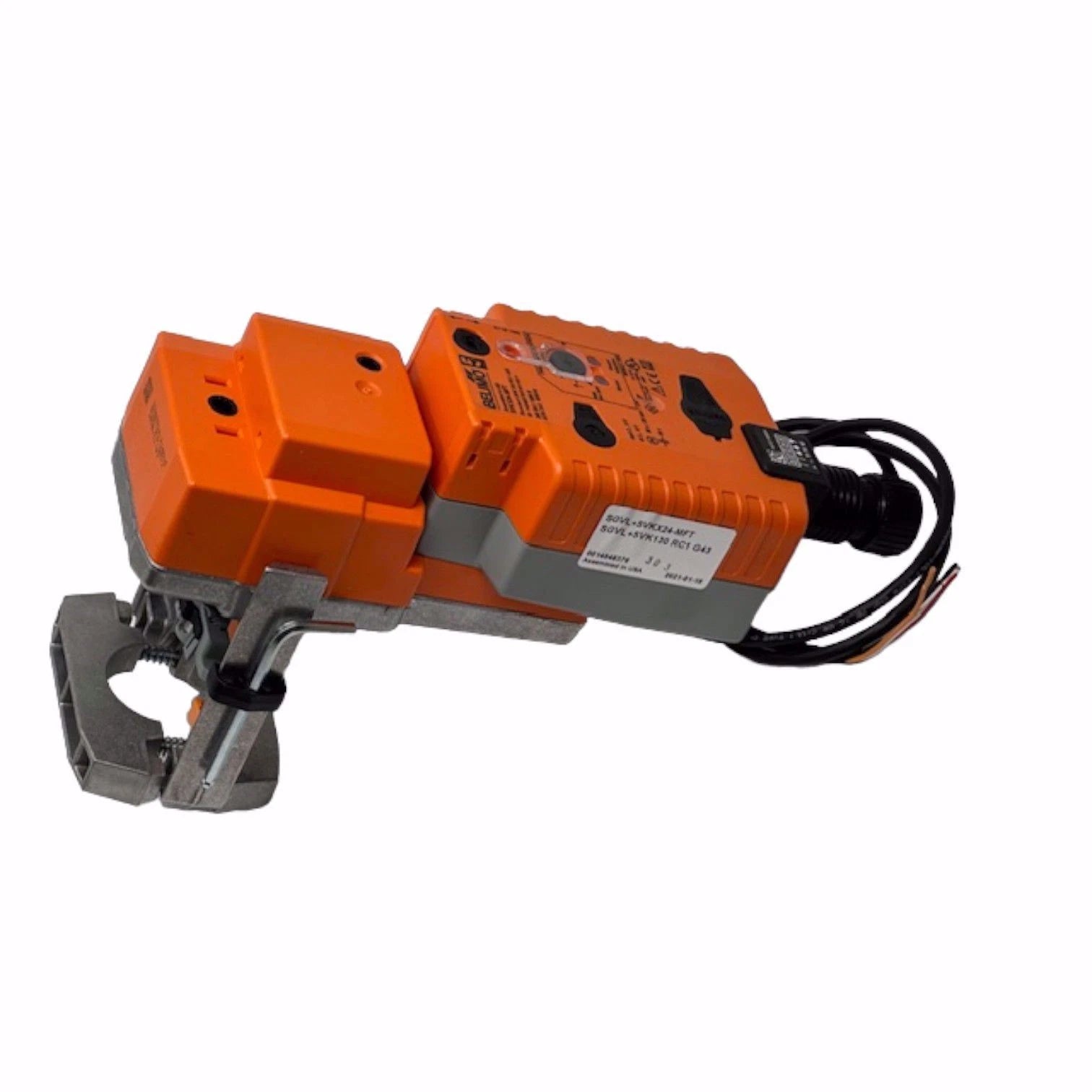

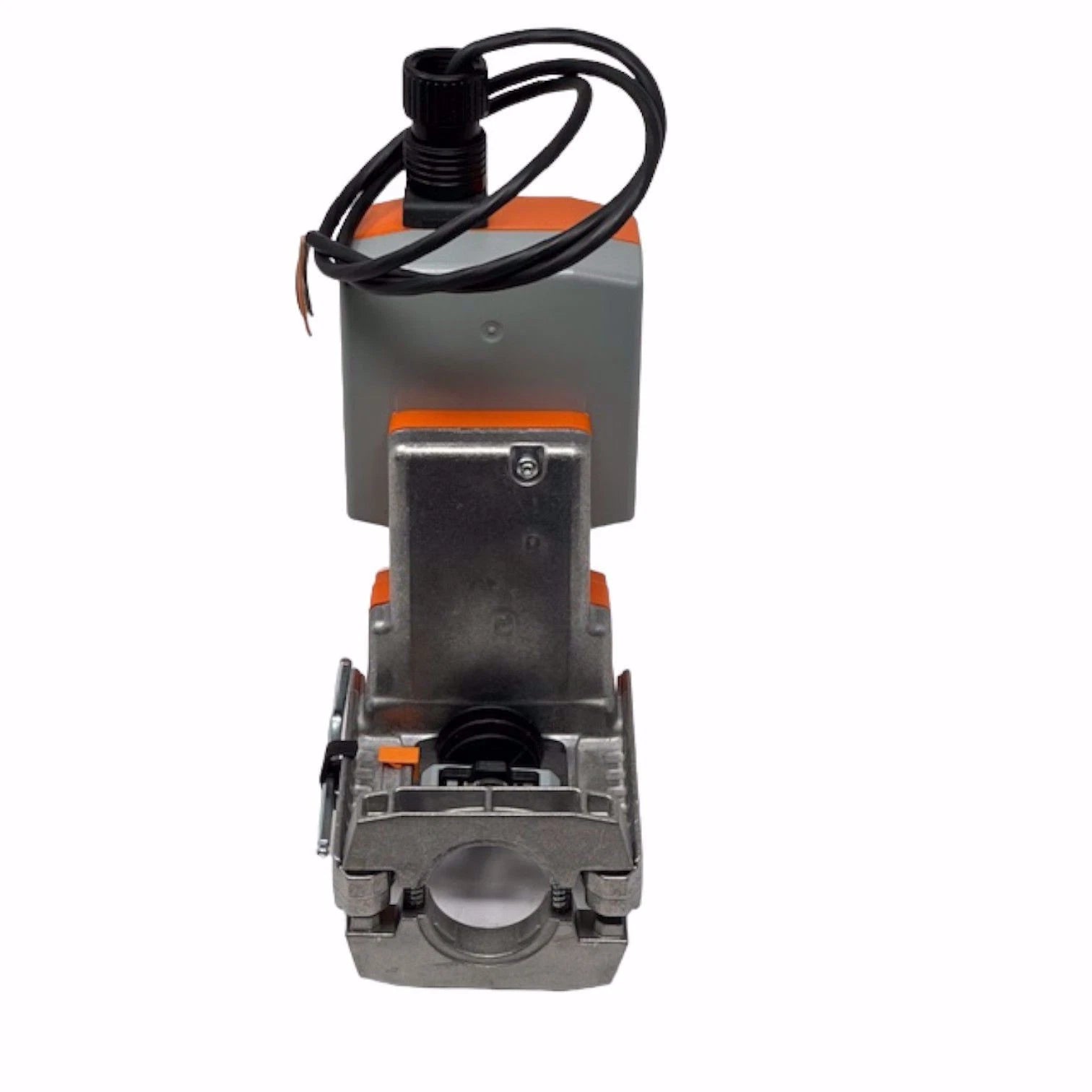

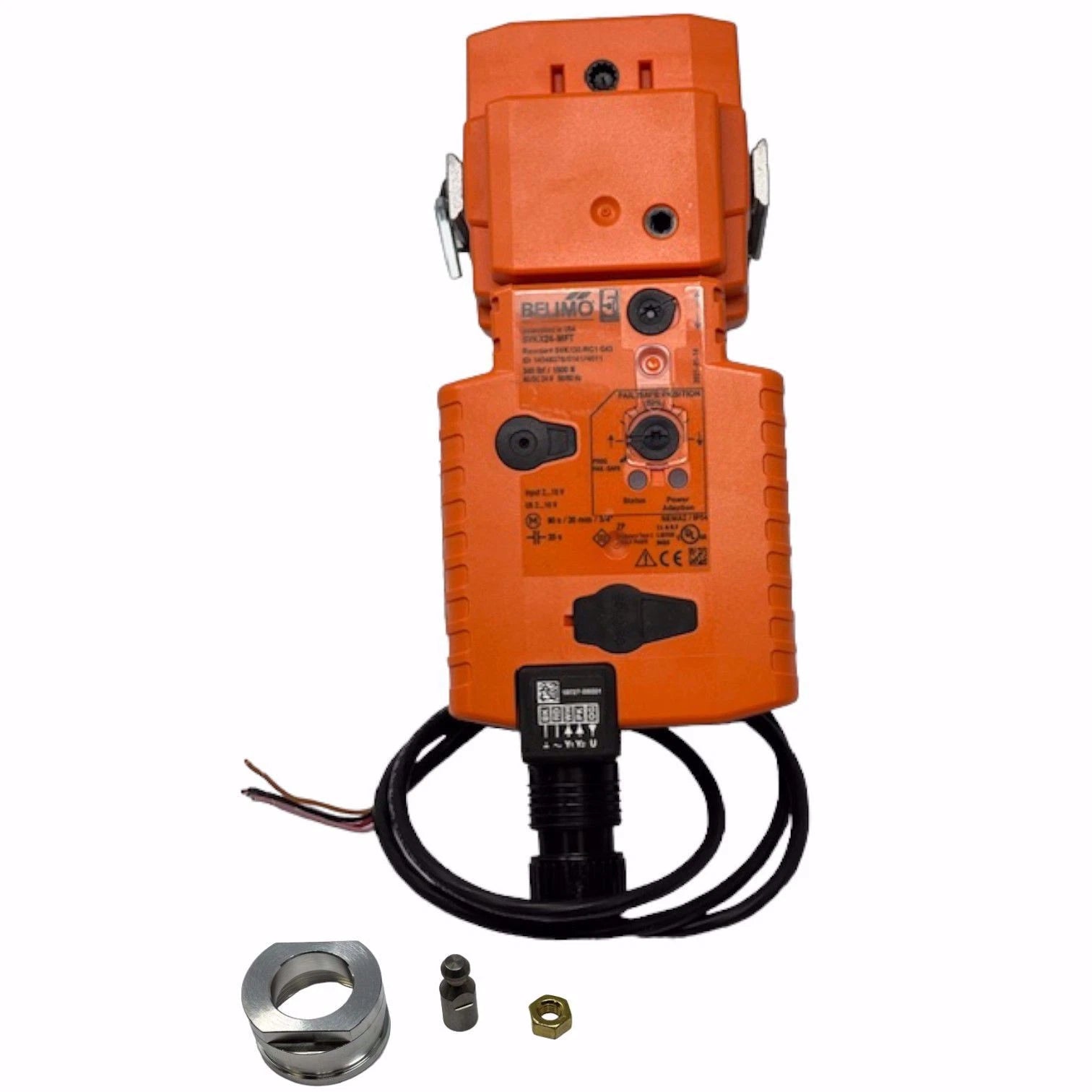

Belimo SGVL+LVKX24-MFT Electronic Fail-Safe Globe Valve Retrofit Actuator
- Regular price
- $925.00
- Sale price
- $925.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SGVL+LVKX24-MFT
Description
The Belimo SGVL+LVKX24-MFT is a globe valve retrofit assembly combining SGVL linkage with an LVKX24-MFT electronic fail-safe actuator. It operates on AC/DC 24 V and provides programmable MFT control with 500 N (112 lbf) linear force for compatible HVAC globe valve applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC & Building Automation |
| Part Number | SGVL+LVKX24-MFT |
| Subcategory | Valve Actuators |
| Product Type | Globe Valve Retrofit Actuator Assembly |
| Actuator Type | Electronic Fail-Safe Linear Actuator |
| Voltage | AC/DC 24 V |
| Control Type | MFT/Programmable |
| Control Signal | 2–10 VDC; PWM; On/Off; Floating Point |
| Position Feedback | 2–10 VDC |
| Actuating Force | 500 N (112 lbf) |
| Stroke | 0.95 in. (24 mm) |
| Motor Running Time | 90 s |
| Motor Running Time Range | 35–150 s |
| Fail-Safe Running Time | <35 s |
| Manual Override | 4 mm Hex Crank |
| Protection Rating | IP54 / NEMA 2 |
| Weight | 3.5 lb |
Information About SGVL+LVKX24-MFT
The SGVL+LVKX24-MFT is part of Belimo's RetroFIT+ range for Schneider globe valves using LV and SV series actuators. The LVKX24-MFT actuator supports configurable control signals including 2–10 VDC, PWM, on/off, and floating-point operation, with 2–10 VDC position feedback. The assembly provides electronic fail-safe operation with selectable motor and fail-safe direction and includes a 4 mm hex manual override. The SGVL linkage is intended for compatible Schneider VB7000 and VB9000 globe valve applications and supports retrofit installation with LV-series actuation.
Key Features:
- Electronic Fail-Safe: Provides fail-safe positioning with a response time of less than 35 seconds.
- MFT Control: Multi-Function Technology supports programmable control configurations.
- Power Supply: Operates from AC/DC 24 V power.
- Linear Force: Provides 500 N (112 lbf) actuator force.
- Control Signal: Supports 2–10 VDC and configurable PWM, floating-point, and on/off inputs.
- Position Feedback: Provides a 2–10 VDC feedback signal.
- Manual Override: Includes a 4 mm hex crank for manual positioning.
- Protection Rating: NEMA 2 / IP54 enclosure protection.
The SGVL+LVKX24-MFT delivers the reliability and precision required for retrofit control of compatible HVAC globe valves.
