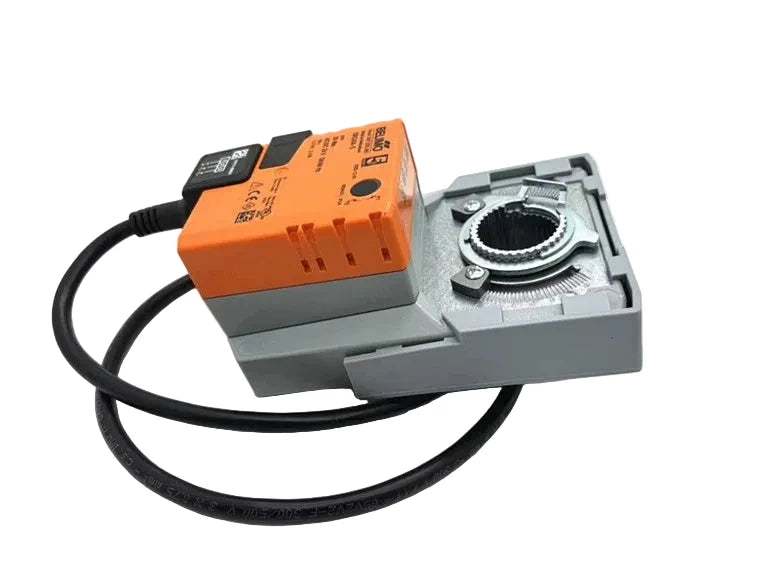

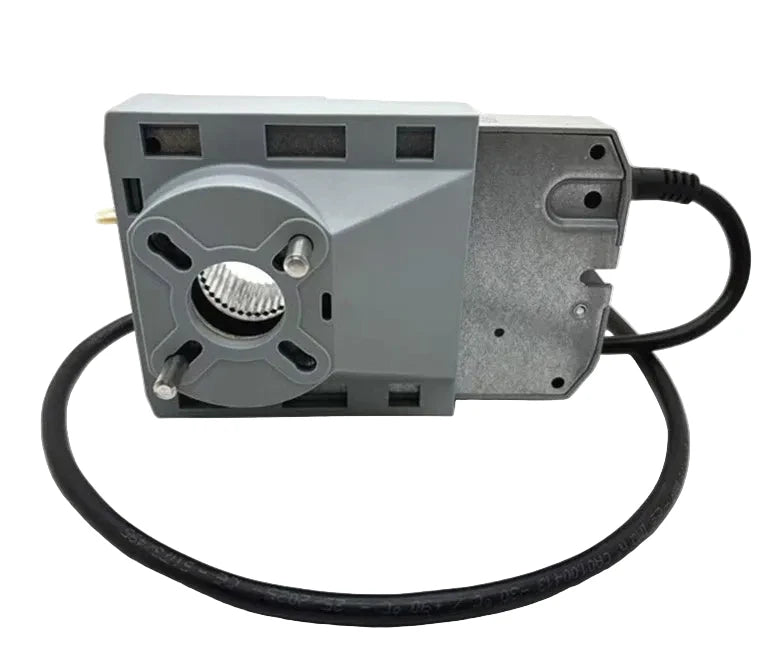

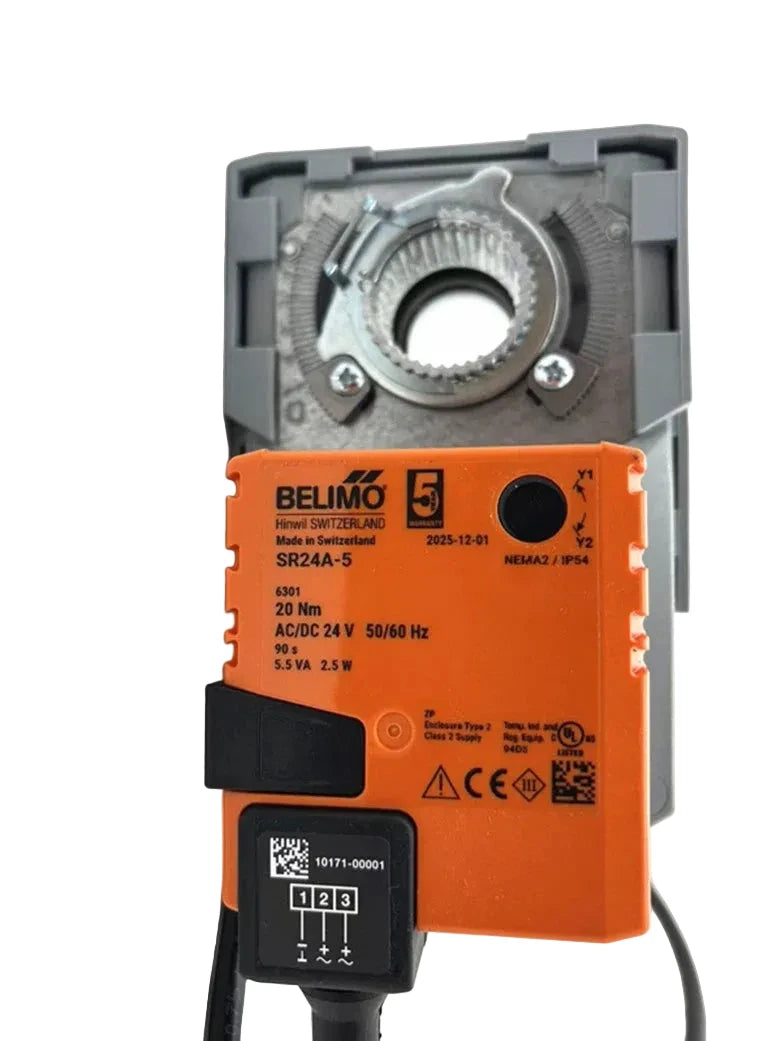

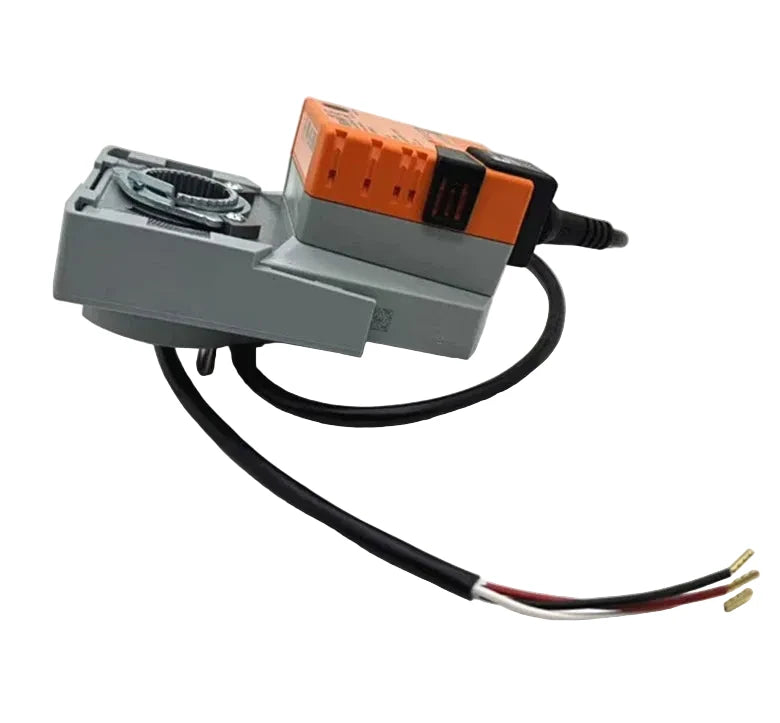

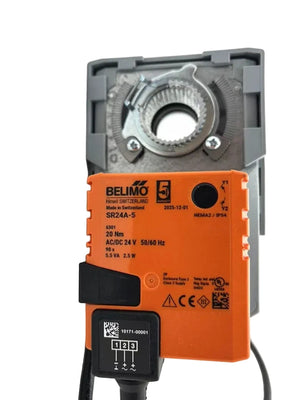

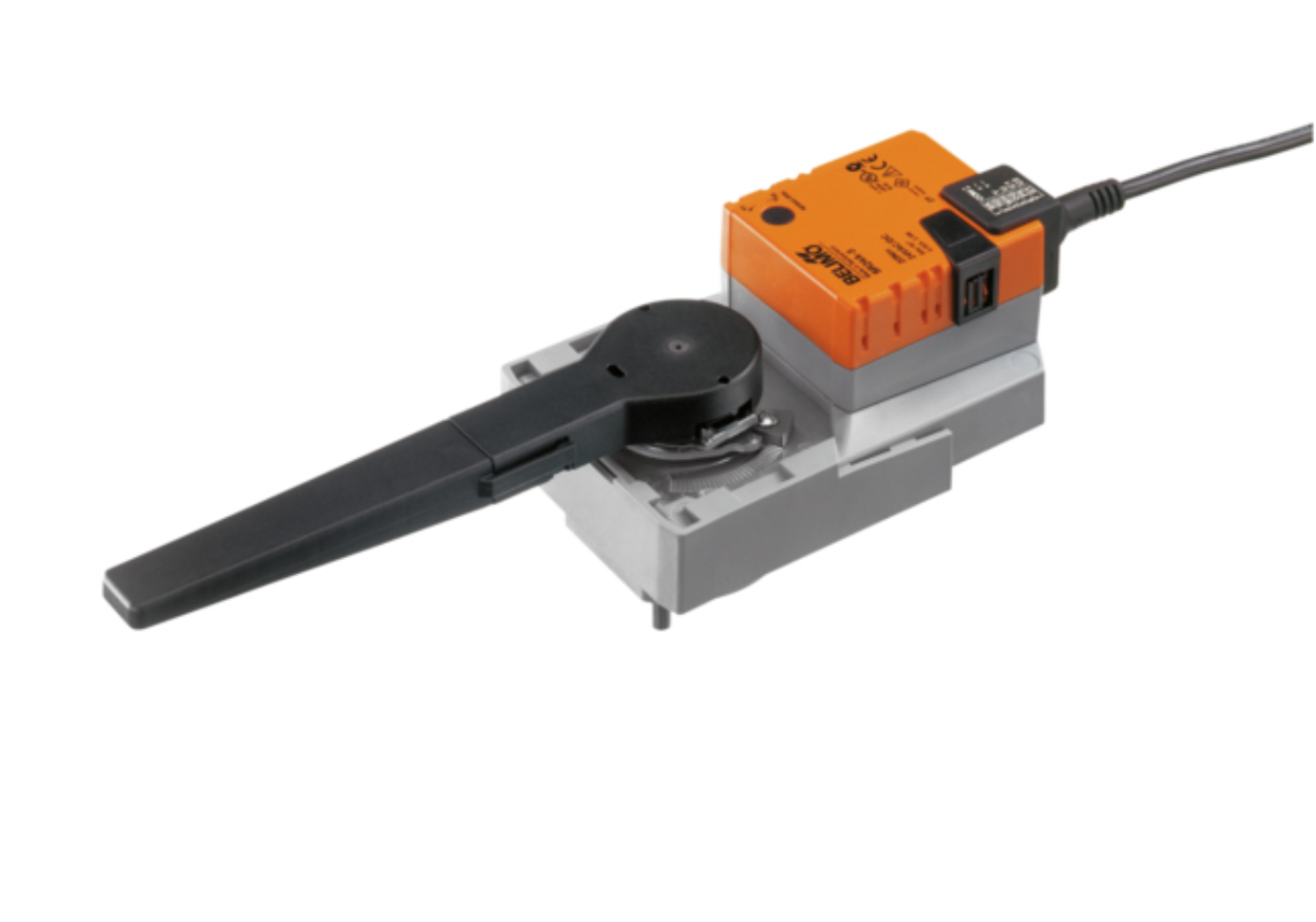

Belimo SR24A-5 20 Nm Rotary Valve Actuator AC/DC 24 V
- Regular price
- $425.00
- Sale price
- $425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SR24A-5
Description
The Belimo SR24A-5 is a rotary valve actuator designed for rotary and butterfly valves with a nominal torque of 20 Nm. It operates on AC/DC 24 V power and supports open/close and 3-point control for HVAC valve applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Controls |
| Part Number | SR24A-5 |
| Subcategory | Rotary Valve Actuator |
| Actuator Type | Rotary actuator |
| Application | Rotary valves and butterfly valves |
| Voltage AC/DC | AC/DC 24 V |
| Torque | 20 Nm |
| Control Type | Open/close, 3-point |
| Setup Time | 90 s |
| Power Consumption, Running | 2.5 W |
| Power Consumption, Holding | 0.2 W |
| Power Consumption for Wire Sizing | 5.5 VA |
| Connection Supply Control | Cable 1 m, 3 x 0.75 mm² |
| Protection Category | IP54 |
| NEMA Protection | NEMA 2 |
| UL Enclosure Type | UL Type 2 |
| Compatible Damper Size | DN 65, DN 80, DN 100 |
| Weight | 2.20 lbs |
Information About SR24A-5
The SR24A-5 provides 90-second positioning for valve and damper applications requiring a 20 Nm rotary drive. Its 3-wire, 1-meter cable provides the power and control connection for AC/DC 24 V operation. The actuator uses 2.5 W while running and 0.2 W while holding position. IP54 protection and NEMA 2 / UL Type 2 enclosure classification support installation in standard HVAC environments.
Key Features:
- 20 Nm Torque: Provides rotary output torque for compatible rotary and butterfly valves.
- AC/DC 24 V Operation: Uses a 24 V power supply for HVAC control systems.
- Open/Close Control: Supports two-position valve actuator operation.
- 3-Point Control: Allows three-position control for adjustable valve positioning.
- 90-Second Setup Time: Provides a defined 90-second actuator positioning period.
- 3-Wire Connection: Includes a 1-meter cable with 3 x 0.75 mm² conductors.
- IP54 Protection: Provides protection against dust ingress and water splashing.
- NEMA 2 Enclosure: Uses a UL Type 2 enclosure classification for HVAC installations.
The SR24A-5 delivers the reliability and precision required for rotary valve and butterfly valve actuation in HVAC systems.
