UGVL+LVX24-MFT | Belimo Universal Globe Valve Linkage With Programmable Actuator 24 V
- Regular price
- $934.00
- Sale price
- $934.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UGVL+LVX24-MFT
Description

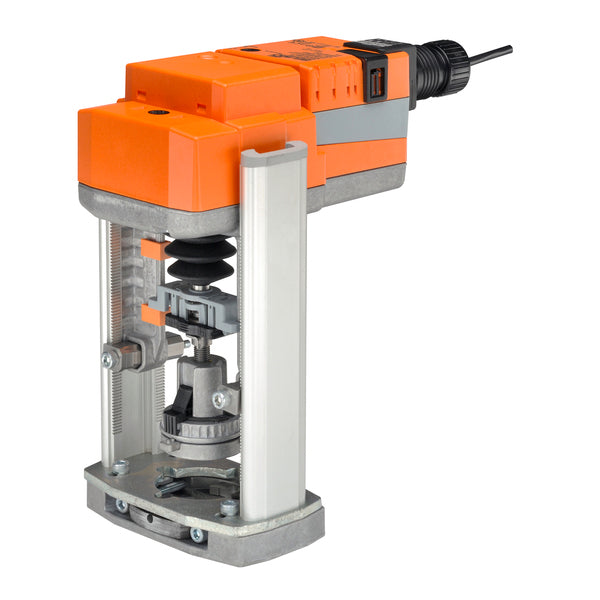

The Belimo UGVL+LVX24-MFT is a universal globe valve linkage assembly with a factory-fitted LVX series actuator for flexible hydronic control applications. It operates on AC/DC 24 V and provides programmable MFT control to support precise modulation of globe valves across multiple sizes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Control Components |
| Part Number | UGVL+LVX24-MFT |
| Subcategory | Valve Actuator Assemblies |
| Assembly Type | Universal Globe Valve Linkage with Actuator |
| Actuator Type | Non fail-safe, programmable |
| Control Signal | 2–10 V (MFT configurable) |
| Actuator Voltage | AC/DC 24 V |
| Fluid Compatibility | Chilled water, hot water, steam |
| Applicable Valve Size | 0.5 in to 2 in (DN 15–50) |
| Mounting Position | 360° |
| Stem Adapter | Aluminum and steel, up to 0.66 in stem diameter |
| Bonnet Compatibility | Up to 1.7 in diameter, threaded or notched |
| Frame and Base Materials | Aluminum and steel |
| Coupling Material | GF nylon |
| Configuration | Field configurable |
| Weight | 4.2 lb (1.9 kg) |
Information About UGVL+LVX24-MFT
The UGVL+LVX24-MFT is a Belimo universal linkage and actuator assembly designed to adapt LV and SV series actuators to a wide range of globe valves. It supports chilled water, hot water, and steam applications, providing flexibility across HVAC and process control environments. The MFT programmable actuator allows the control signal, feedback, and operating behavior to be configured to match specific system requirements. Its universal mechanical design enables compatibility with multiple valve stem and bonnet styles, reducing the need for valve-specific actuators.
Key Features
- Universal globe valve compatibility: Designed to mount on globe valves from 0.5 inch to 2 inches, covering a wide range of hydronic applications.
- Programmable MFT actuator: Allows flexible configuration of control signals, feedback, and operating parameters for system-specific requirements.
- Non fail-safe operation: Provides motor-driven positioning suitable for applications where spring return safety action is not required.
- Wide fluid application range: Supports chilled water, hot water, and steam systems across commercial and industrial installations.
- 360-degree mounting flexibility: Enables installation in any orientation to simplify field mounting and space constraints.
- Robust mechanical construction: Uses stainless steel, aluminum, and nickel-plated steel components for durability and long service life.
- Broad stem and bonnet adaptability: Accommodates various stem diameters and bonnet designs without specialized hardware.
The UGVL+LVX24-MFT delivers the reliability and precision required for adaptable globe valve actuation and programmable flow control in HVAC and industrial systems.
