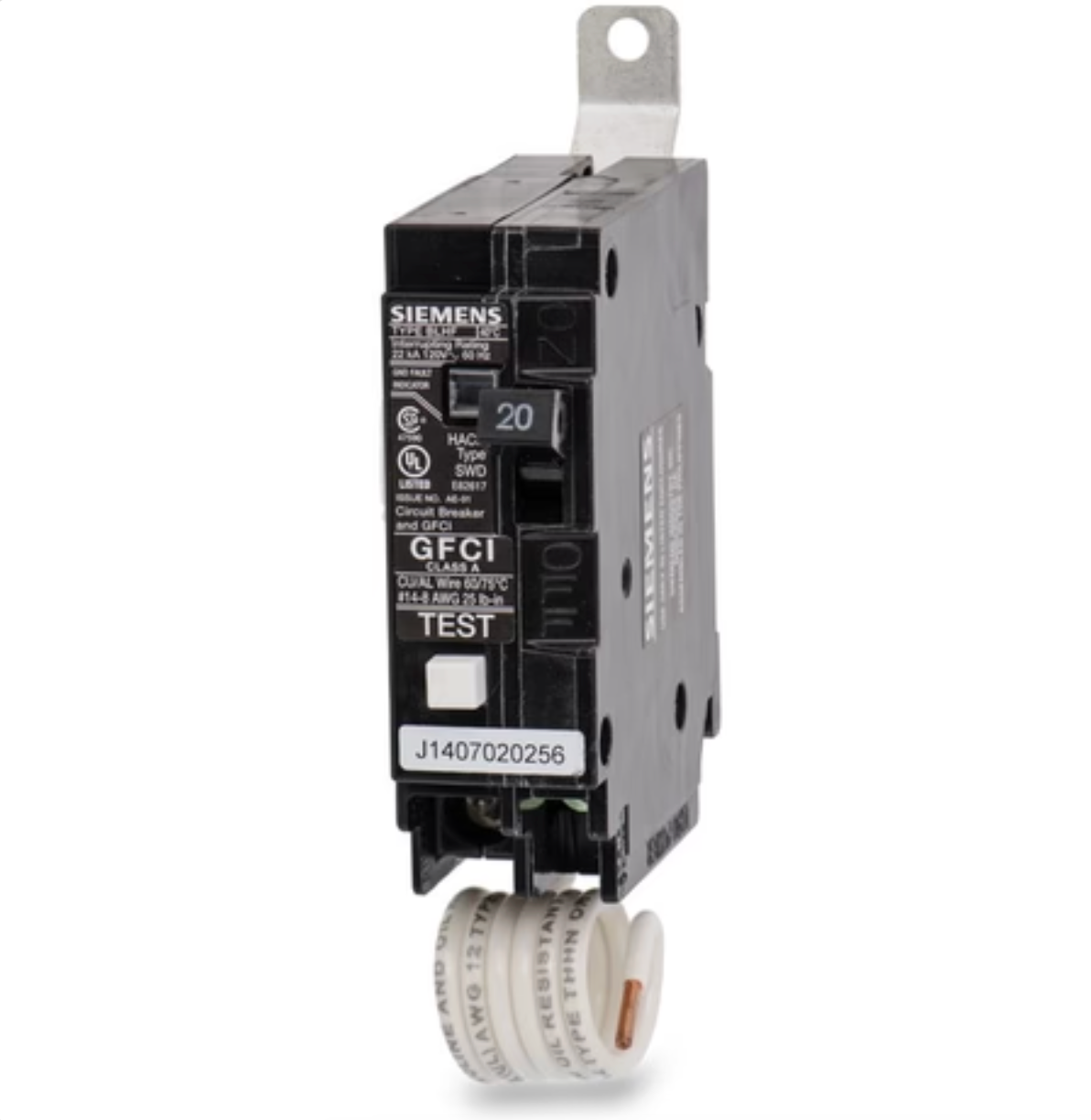

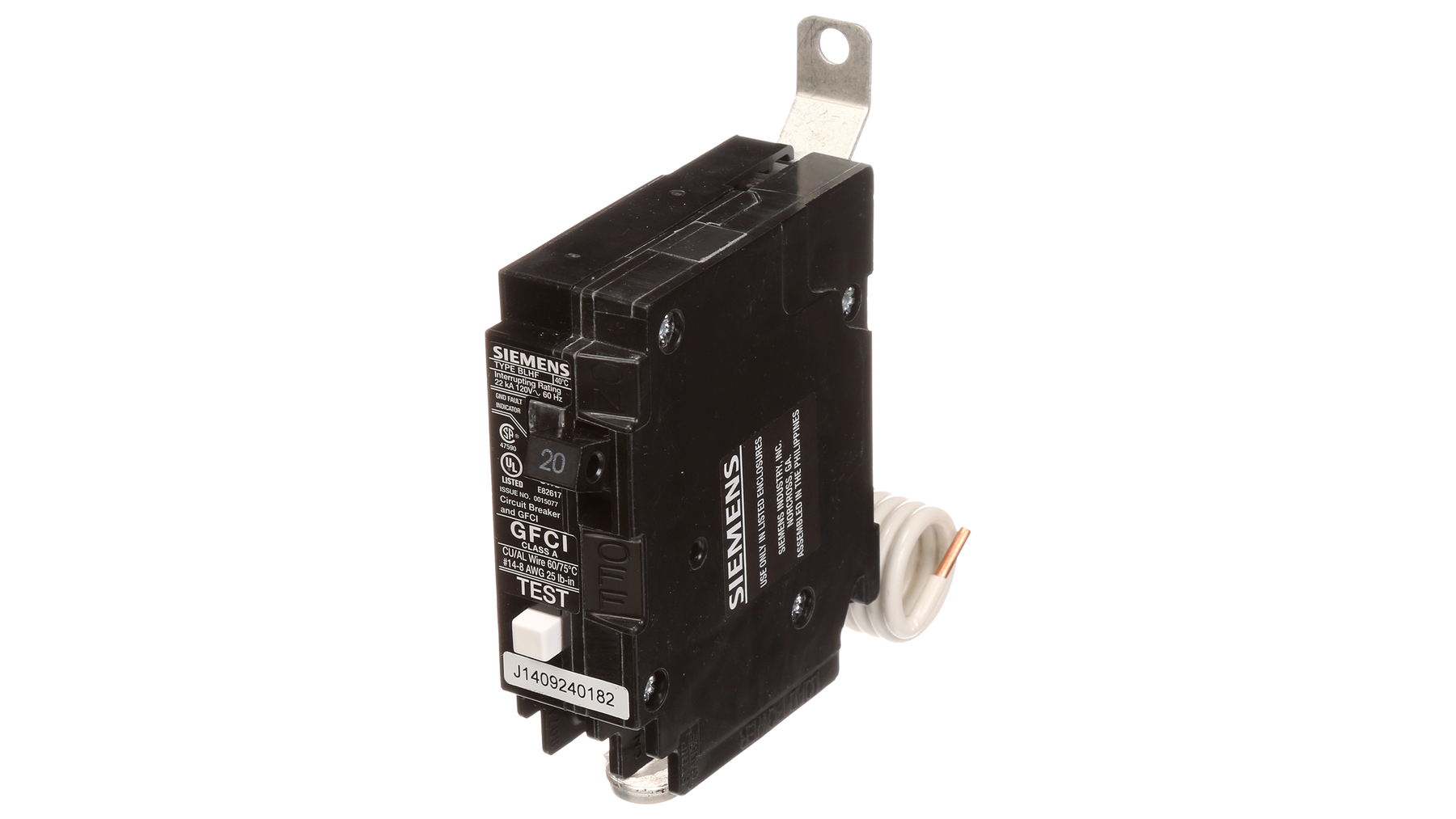

BF120H | Siemens 1-Pole 20A 120V Bolt-On Ground Fault Circuit Breaker
- Regular price
- $272.00
- Sale price
- $272.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BF120H
Description
The Siemens BF120H is a 1-pole ground fault circuit breaker designed for reliable protection of electrical circuits against overloads, short circuits, and ground faults. With a current rating of 20 amps and an operating voltage of 120 VAC, it ensures safe operation in residential, commercial, and light industrial systems. This bolt-on breaker features a compact molded case design with high interrupting capacity for dependable performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Protection |
| Part Number | BF120H |
| Subcategory | Ground Fault Circuit Breaker |
| Series | BL |
| Frame Type | B Frame |
| Current Rating (In) | 20 Amps |
| Voltage Rating (Ue) | 120 VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Capacity | 22 kAIC @ 120V |
| Trip Function | LI - Long-Time and Instantaneous |
| Protection Type | Thermal Magnetic |
| Ground Fault Protection | Yes (GFCI) |
| Mounting Type | Bolt-On |
| Connection Type | Load Side Lug |
| Terminal Wire Range | 10 AWG – 14 AWG |
| Actuator Type | Toggle |
| Certifications | UL, CSA, NOM |
| Dimensions (L × W × H) | 5 × 4 × 1 in |
| Weight | 12 oz |
Information About BF120H
The BF120H is part of the Siemens BL Series of thermal-magnetic molded case circuit breakers, engineered for panelboard mounting and long-term service reliability. It incorporates LI trip functions (long-time and instantaneous) for precise fault response and a built-in GFCI mechanism to protect personnel and equipment from ground fault currents. The breaker’s bolt-on mounting system ensures secure installation, while compliance with UL, CSA, and NOM standards guarantees global compatibility. Its durable construction and efficient thermal-magnetic protection make it suitable for both new installations and retrofit applications.
Key Features:
- Rated Current: 20A current rating supports general-purpose circuit protection.
- Voltage Rating: Operates at 120 VAC for standard residential and commercial systems.
- Interrupting Capacity: 22 kAIC at 120V for reliable fault interruption under load.
- Ground Fault Protection: Integrated GFCI safeguards equipment and personnel from leakage currents.
- Trip Functionality: Long-time and instantaneous (LI) trip curve ensures optimal protection response.
- Mounting Style: Bolt-on design provides secure and vibration-resistant installation.
- Terminal Compatibility: Accepts wire sizes from 10 AWG to 14 AWG for flexible wiring options.
- Safety Certifications: UL, CSA, and NOM approved for use in compliant electrical systems.
The BF120H delivers the reliability and precision required for safe and efficient ground fault protection in low-voltage electrical installations.
