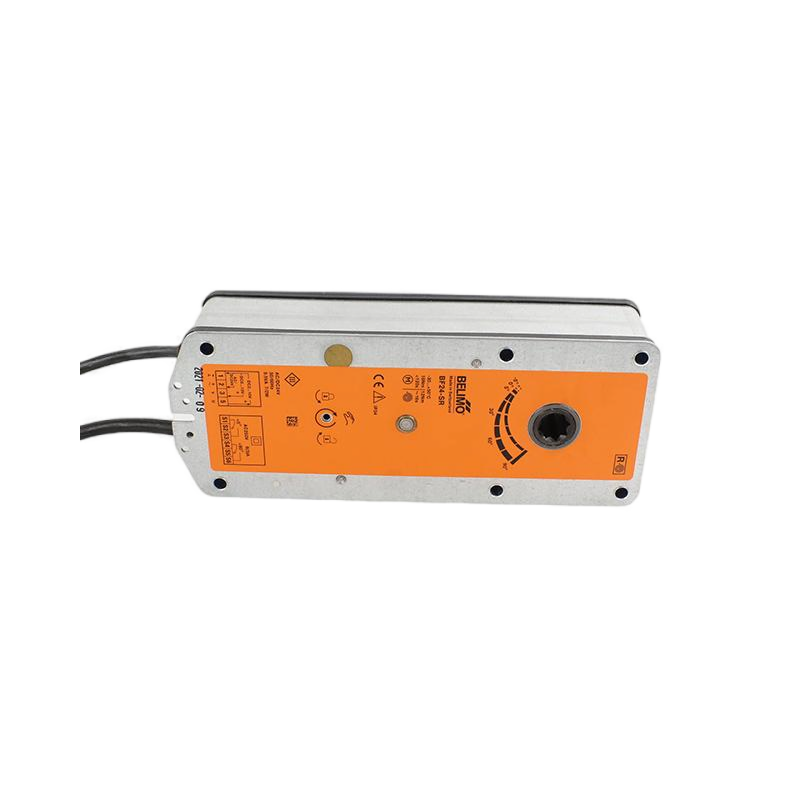

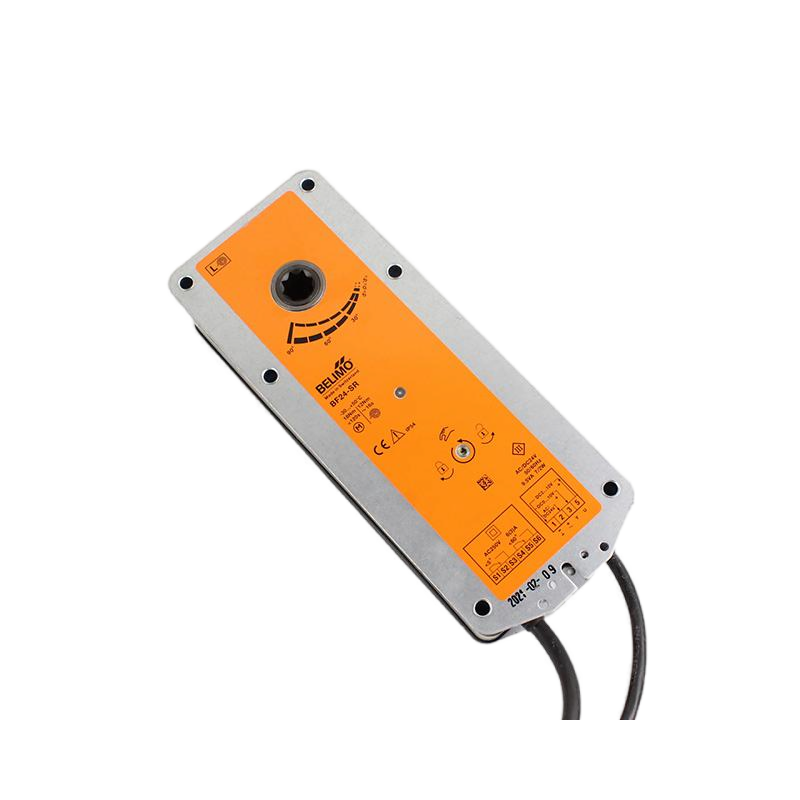

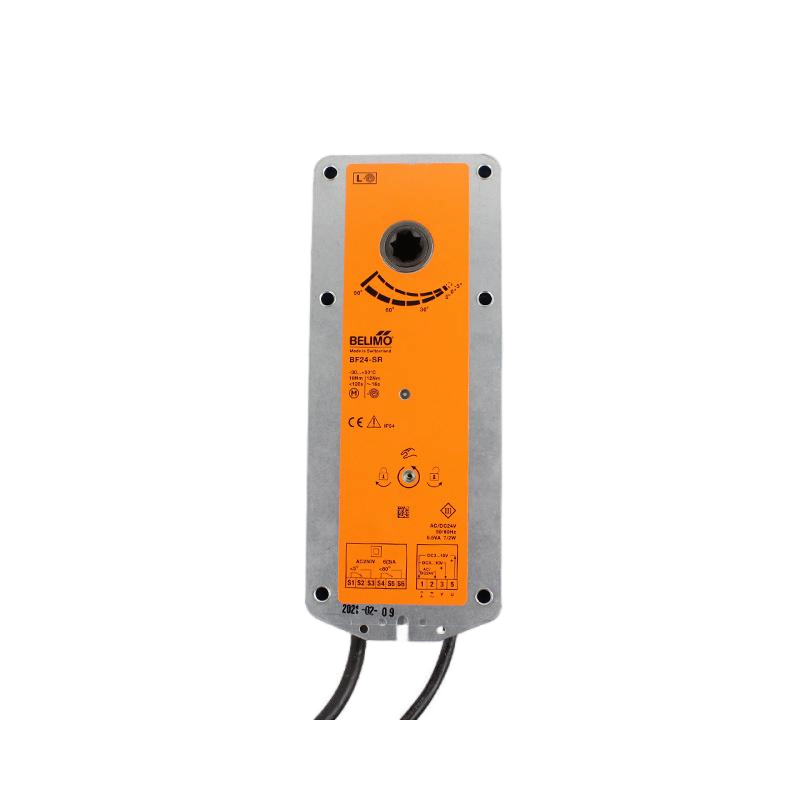

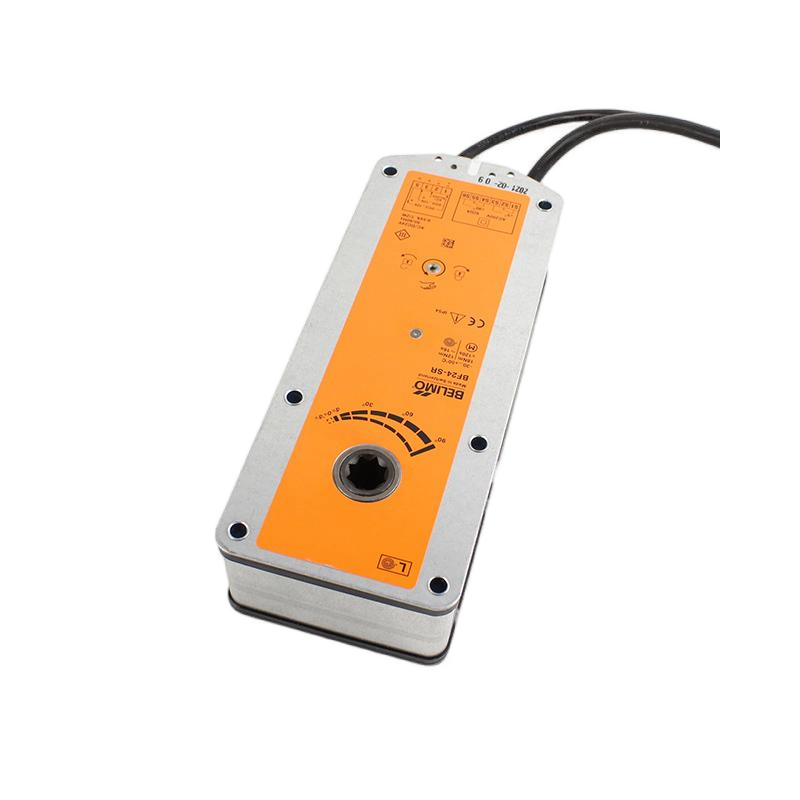

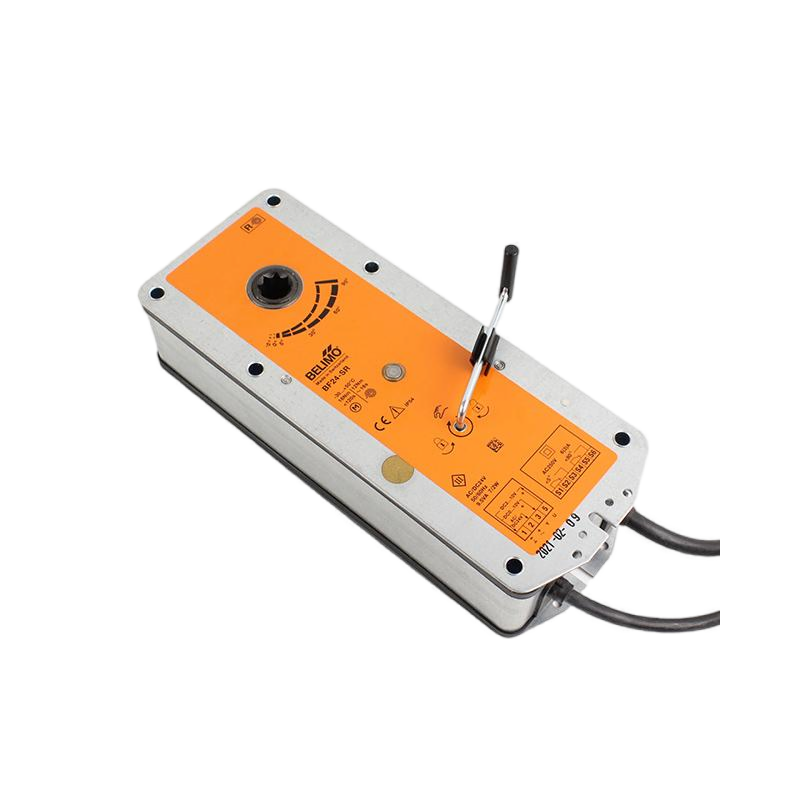

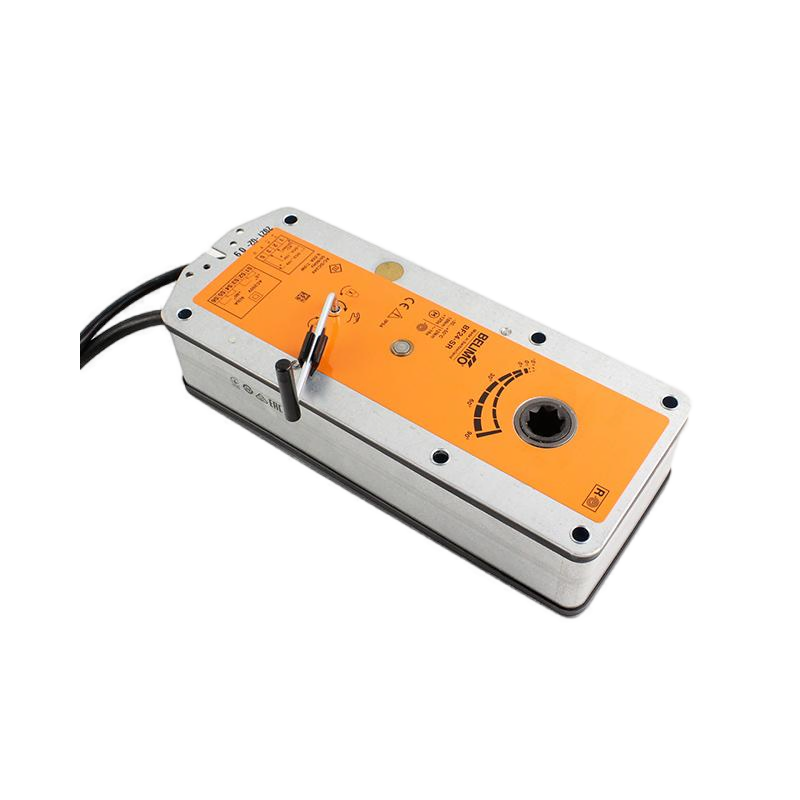

BF24-SR | Belimo Spring Return Damper Actuator 18Nm 24VAC DC Modulating Control
- Regular price
- $967.00
- Sale price
- $967.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BF24-SR
Description
The Belimo BF24-SR is a spring-return damper actuator designed for precise control and reliable fail-safe operation in HVAC air handling systems. The BF24-SR operates on AC/DC 24 V power and provides accurate modulating control with integrated position feedback for monitoring damper position.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Actuators |
| Part Number | BF24-SR |
| Subcategory | Damper Actuators |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Voltage Range | AC 19.2…28.8 V / DC 21.6…28.8 V |
| Power Consumption (Operation) | 7 W |
| Power Consumption (Rest) | 2 W |
| Power Consumption (Wire Sizing) | 10 VA |
| Inrush Current | 8.3 A @ 5 ms |
| Control Signal | 2…10 V |
| Input Impedance | 100 kΩ |
| Position Feedback | 2…10 V, max. 0.5 mA |
| Position Accuracy | ±5% |
| Motor Torque | 18 Nm |
| Fail-Safe Torque | 12 Nm |
| Angle of Rotation | Max. 95° |
| Running Time (Motor) | <120 s / 90° |
| Running Time (Fail-Safe) | 16 s @ 20°C |
| Ambient Temperature | -30…50°C |
| Ambient Humidity | Max. 95% RH, non-condensing |
| Service Requirement | Maintenance-free |
| Weight | 2.6 kg |
Information About BF24-SR
The BF24-SR is a spring-return damper actuator from Belimo’s safety-focused actuator range, engineered for applications requiring controlled positioning and automatic movement to a defined safety position during power loss. It combines a robust motor drive with a mechanical spring-return mechanism, ensuring dependable operation under both normal and emergency conditions. The BF24-SR supports modulating control via a 2…10 V input signal and provides a 2…10 V position feedback output for system integration and diagnostics. Dual auxiliary switches, halogen-free cabling, and selectable mounting orientation allow flexible installation in commercial and industrial HVAC damper assemblies.
Key Features
- Spring-Return Fail-Safe Function: Automatically drives the damper to the safety position in the event of power loss using a high-reliability spring mechanism.
- Modulating Control Signal: Accepts a 2…10 V control input for precise proportional damper positioning.
- High Torque Performance: Provides 18 Nm motor torque and 12 Nm fail-safe torque to handle demanding damper loads.
- Integrated Position Feedback: Supplies a 2…10 V feedback signal to indicate actual damper position with ±5% accuracy.
- Dual Auxiliary Switches: Includes 2x SPDT switches for position indication, interlocking, or system monitoring functions.
- Manual Override Capability: Features a manual override with position stop for commissioning and maintenance procedures.
- Wide Environmental Tolerance: Designed for stable operation across broad temperature and humidity ranges in HVAC environments.
The BF24-SR delivers the reliability and precision required for modulating damper control with fail-safe protection in HVAC systems.
