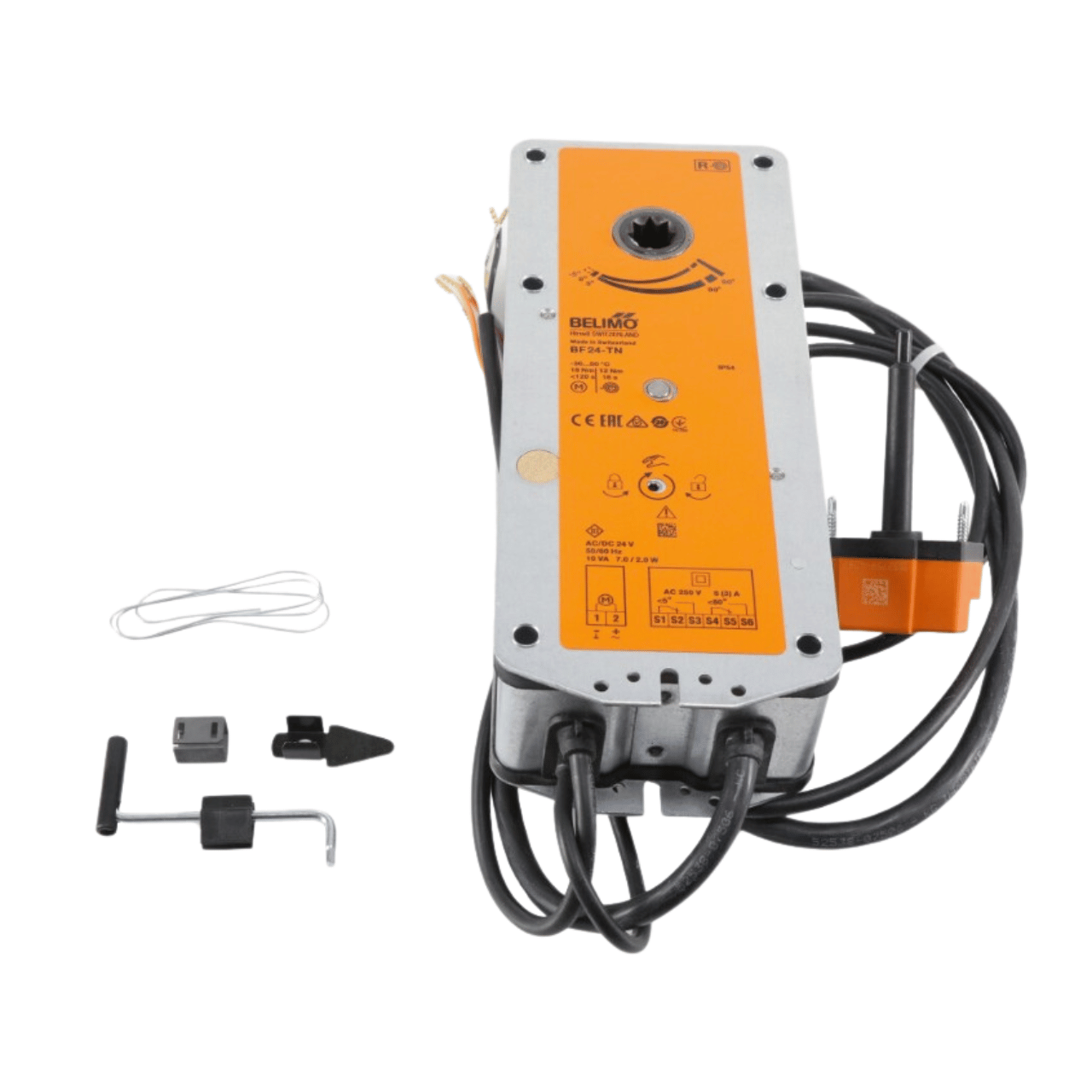

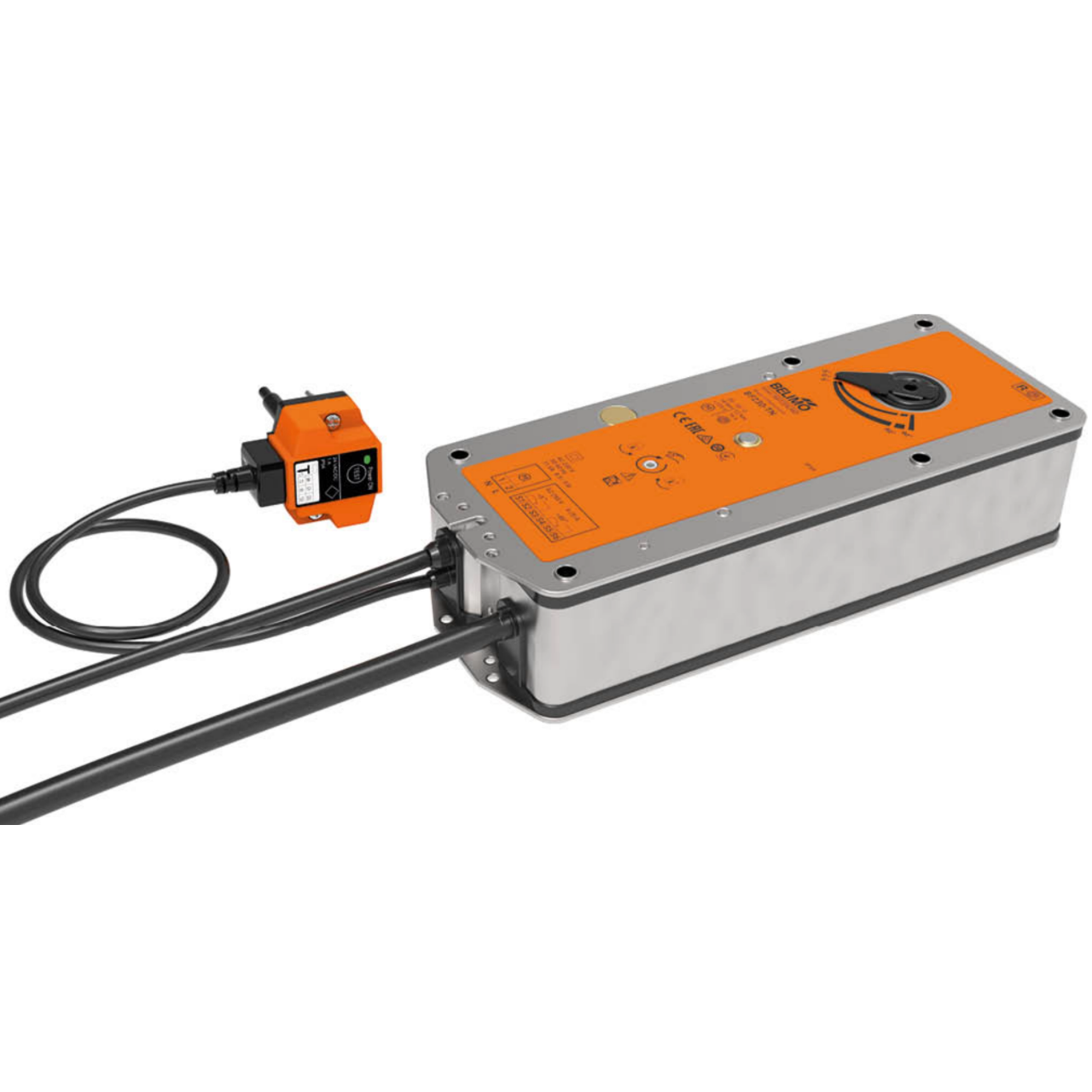

BF24-TN | Belimo Fire Damper Actuator Spring Return 24V With Auxiliary Switches
- Regular price
- $619.00
- Sale price
- $619.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BF24-TN
Description
The Belimo BF24-TN is a spring-return fire damper actuator designed for reliable fail-safe operation on life-safety HVAC systems. The BF24-TN provides controlled motor positioning and rapid spring-driven closure to ensure secure damper positioning during power loss or emergency conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Actuators |
| Part Number | BF24-TN |
| Subcategory | Fire Damper Actuators |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Voltage Range | AC 19.2…28.8 V / DC 21.6…28.8 V |
| Power Consumption (Operation) | 7 W |
| Power Consumption (Rest) | 2 W |
| Power Consumption (Wire Sizing) | 10 VA |
| Inrush Current | 8.3 A @ 5 ms |
| Motor Torque | 18 Nm |
| Fail-Safe Torque | 12 Nm |
| Angle of Rotation | Max. 95° |
| Running Time (Motor) | <120 s / 90° |
| Running Time (Fail-Safe) | 16 s @ 20°C |
| Auxiliary Switches | 2x SPDT, 5° / 80° |
| Protection / Cabling | Halogen-free cables |
| Service Life | Min. 60,000 safety positions |
| Weight | 2.7 kg |
Information About BF24-TN
The BF24-TN is a fire damper actuator from Belimo engineered specifically for safety-related air control applications where dependable fail-safe performance is required. It features a robust electromechanical design with integrated spring return, supporting precise damper actuation under normal operation and automatic positioning during power interruption. The BF24-TN supports AC/DC 24 V control and includes dual auxiliary switches for position feedback and system interlocking. Its compact form factor, halogen-free cabling, and selectable mounting direction allow integration into a wide range of fire and smoke damper assemblies in commercial and industrial HVAC installations.
Key Features
- Spring-Return Fail-Safe Operation: Provides automatic damper movement to the safety position during power loss using a high-reliability spring mechanism.
- AC/DC 24 V Control Power: Supports standard low-voltage HVAC control systems with stable operation across a wide voltage tolerance range.
- High Torque Output: Delivers 18 Nm motor torque and 12 Nm fail-safe torque to ensure dependable damper positioning under load.
- Dual Auxiliary Switches: Equipped with 2x SPDT switches for precise position indication and integration with monitoring or control systems.
- Manual Override Capability: Includes a manual override with position stop to allow commissioning, testing, or maintenance without power.
- Quiet and Efficient Operation: Maintains low sound power levels during both motor-driven and fail-safe operation.
- Long Service Life: Designed for a minimum of 60,000 safety cycles to support long-term operation in critical environments.
The BF24-TN delivers the reliability and precision required for fire and smoke damper actuation in safety-critical HVAC systems.
