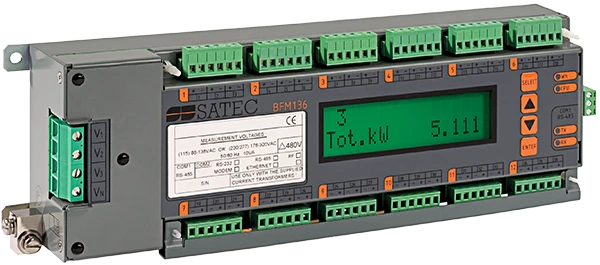

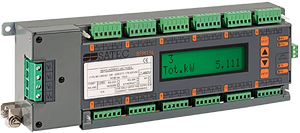

BFM136 | Satec Multi-channel Power and Energy Meter
- Regular price
- $3,299.00
- Sale price
- $3,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BFM136
Description
The Satec BFM136 is a versatile multi-channel power and energy meter designed to monitor a variety of electrical parameters, including voltage, current, power, energy, and power factor. Its high-accuracy current sensors (HACS) and multiple current input options make it suitable for applications ranging from industrial substations to commercial billing systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Satec |
| Part Number | BFM136 |
| Subcategory | Power and Energy Meter |
| Nominal frequency | 50/60Hz |
| Maximum Line to Neutral voltage | 320V |
| Maximum Line to Line voltage | 552V |
| Burden per phase | <1.5W |
| LCD display | 2 Rows, 16 digits in each |
| Push buttons | 4 |
| Weight | 1.85 Kg |
Information About BFM136
The BFM136 power and energy meter by Satec is equipped with 36 current inputs, available in different configurations such as 40mA HACS CTs, split-core HACS CTs, and 100mA inputs for third-party CTs. It measures a wide range of electrical parameters, including voltage, current (including neutral current), power, energy (both import and export), power factor, frequency, and voltage/current unbalance. With a sampling frequency of 64 samples per cycle, the BFM136 offers precise measurements at 50/60 Hz. It also features event and parameter data-logging, enabling efficient monitoring and analysis. This meter is particularly ideal for applications such as medium-voltage substations, commercial multi-tenant billing, and other energy management tasks.
Key Features
- 36 Current Inputs: Supports up to 36 current inputs, with options for 40mA HACS CTs, split-core HACS CTs, and 100mA inputs for third-party CTs.
- Comprehensive Measurement: Measures voltage, current (including neutral current), power, energy (import/export), power factor, frequency, and unbalance, providing detailed energy insights.
- High Accuracy: Utilizes High Accuracy Current Sensors (HACS) for precise and reliable measurements.
- Data Logging: Equipped with event and parameter data-logging capabilities to track critical energy metrics.
- Wide Application Range: Ideal for a variety of applications, including medium-voltage substations, commercial buildings, and multi-tenant billing systems.
