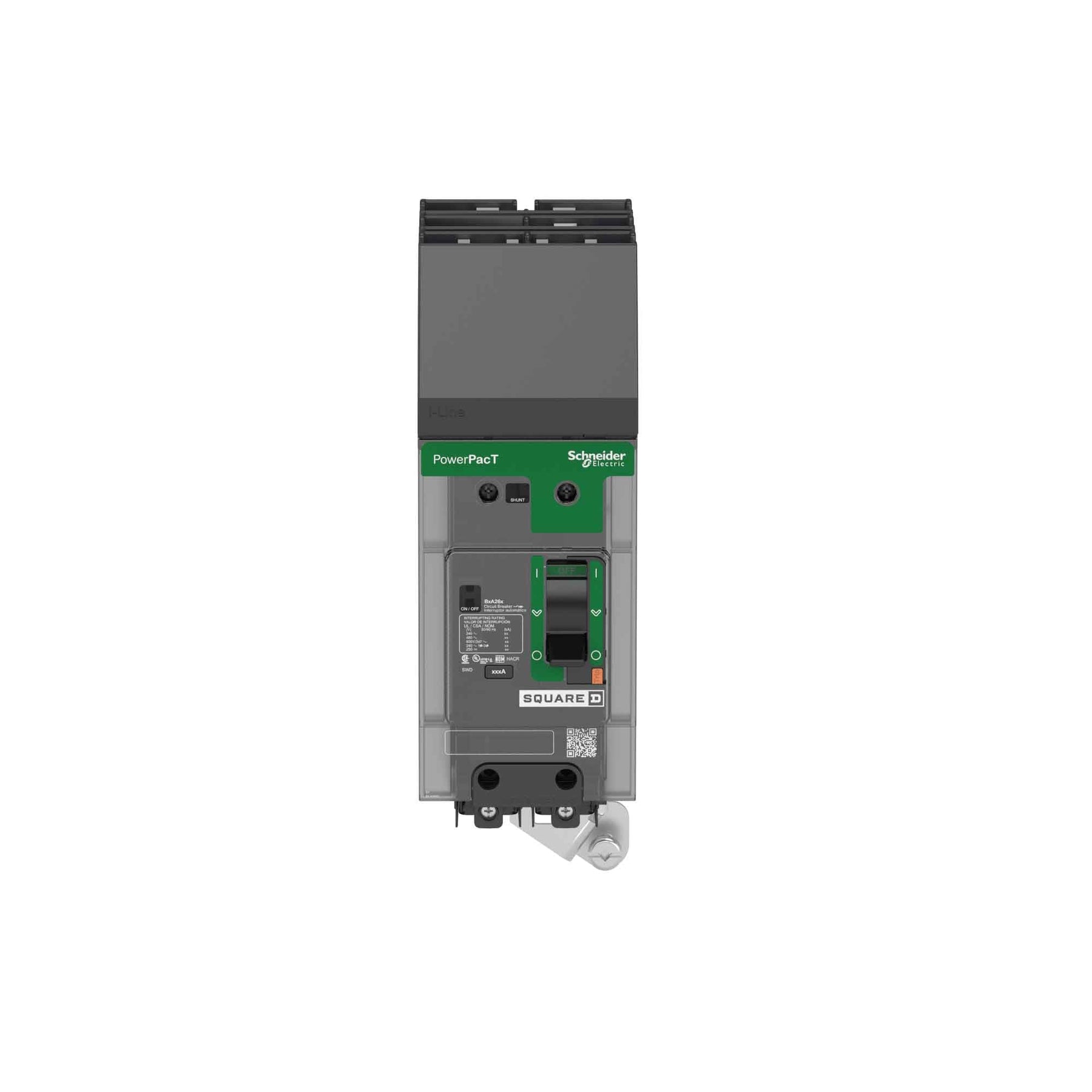

BGA260404 | Square D 40A 2-Pole PowerPact BGA Thermal-Magnetic Molded Case Circuit Breaker
- Regular price
- $715.00
- Sale price
- $715.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BGA260404
Description
The Square D BGA260404 is a 2-pole thermal-magnetic molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial electrical systems. With a 40A current rating and a 600Y/347VAC voltage capacity, it ensures safe interruption of fault conditions up to 35kA at 480V. This breaker offers secure I-Line plug-in installation and consistent performance for feeder and branch circuit applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | BGA260404 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPact BGA |
| Frame Type | BGA Frame |
| Poles | 2 |
| Phase | 1 |
| Rated Current | 40A |
| Voltage Rating | 600Y/347VAC |
| Interrupting Rating | 35kA @ 480V |
| Trip Unit Type | Thermal-Magnetic |
| Functions | Long Time, Instantaneous |
| Connection Type | I-Line Plug-In (line), Lug (load) |
| Wire Range | AWG 14–2/0 Cu/Al |
| Operating Temperature | –25°C to 70°C (–13°F to 158°F) |
| Standards Compliance | UL 489, IEC, CSA, NOM, CE, CCC, EAC |
| Actuator Type | Toggle |
| Color | Gray |
| Dimensions | 2.12 in × 5.39 in |
| Weight | 1.32 lb |
Information About BGA260404
The BGA260404 is part of Square D’s PowerPact BGA series, engineered for reliable circuit protection within compact molded case designs. Its construction features a thermal-magnetic trip unit that supports both long-time and instantaneous protection functions for varied load conditions. Designed for use with I-Line panelboards, it incorporates plug-in connections on the line side and mechanical lugs on the load side to simplify system integration. This model complies with global electrical standards, making it suitable for diverse applications requiring high interrupting capacity and durable operation.
Key Features:
- 40A Current Rating: Supports moderate-load circuits in commercial and industrial power systems.
- 600Y/347VAC Voltage Capacity: Handles higher-voltage environments while maintaining stable protection performance.
- 35kA Interrupting Rating: Provides strong fault-clearing capability at 480V for enhanced safety.
- Thermal-Magnetic Trip: Combines long-time and instantaneous trip functions for accurate overload and short-circuit response.
- I-Line Plug-In Design: Enables rapid, secure installation into I-Line distribution panelboards.
- Wide Wire Range: Compatible with AWG 14 to AWG 2/0 copper or aluminum conductors for installation flexibility.
- Compliance: Meets UL, IEC, CSA, NOM, CE, CCC, and other global standards for performance and safety.
- Durable Construction: Designed to operate reliably across a wide temperature range from –25°C to 70°C.
The BGA260404 delivers the reliability and precision required for molded case circuit protection in commercial and industrial installations.
