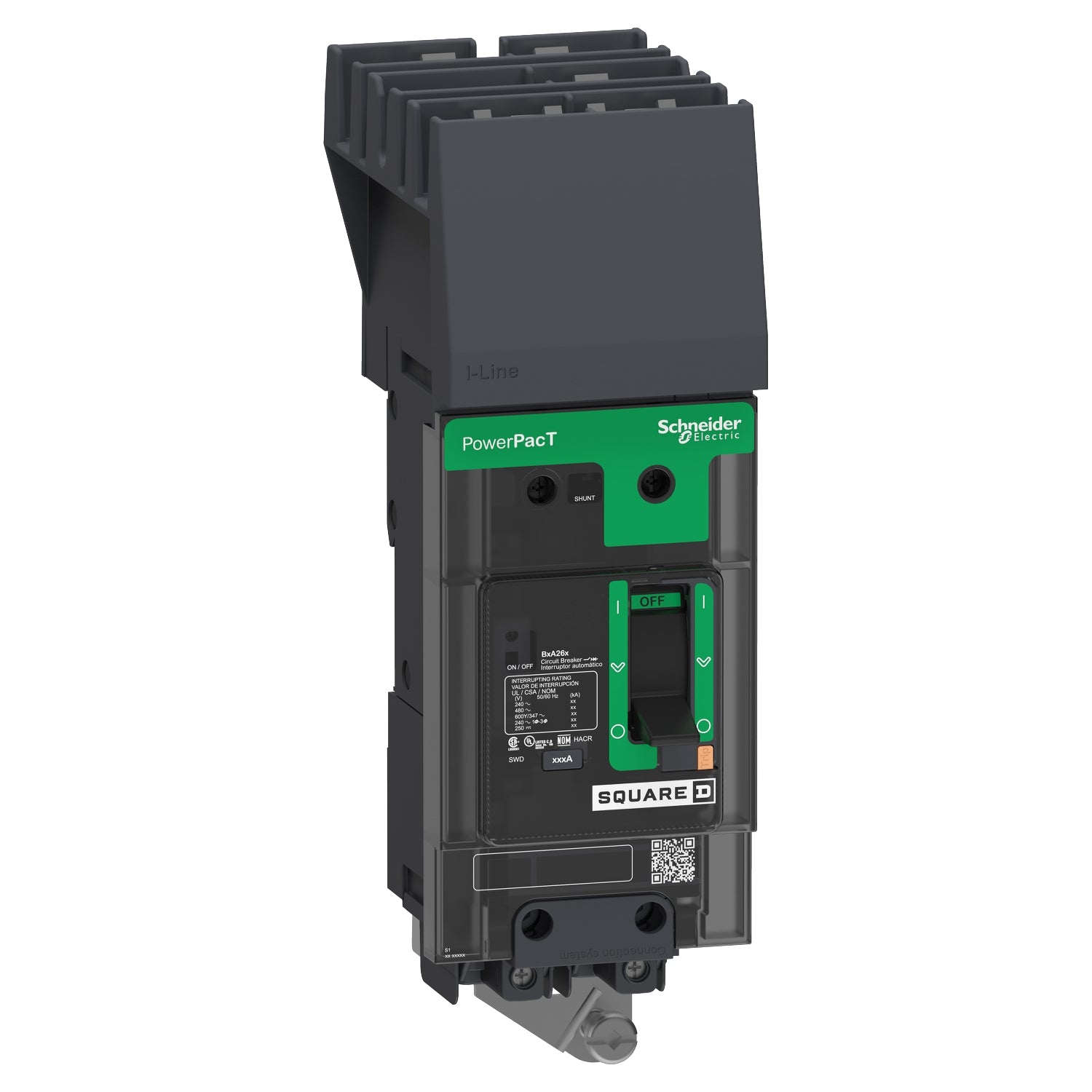

BGA260501 | Square D 50A 2-Pole PowerPact B Molded Case Circuit Breaker 600Y/347VAC
- Regular price
- $905.00
- Sale price
- $905.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BGA260501
Description
The Square D BGA260501 by Schneider Electric is a 2-pole thermal-magnetic molded case circuit breaker rated at 50 amps and 600Y/347 VAC. It provides robust overload and short-circuit protection with long-time and instantaneous trip functions, making it suitable for industrial and commercial power distribution systems. Designed with an I-Line style plug-in connection, the BGA260501 ensures fast, secure installation and dependable circuit performance under demanding electrical conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | BGA260501 |
| Subcategory | Molded Case |
| Series | PowerPact B |
| Frame Type | BGA |
| Amperage Rating | 50 A |
| Voltage Rating | 600Y/347 VAC |
| Interrupting Capacity | 100 kA @ 240 VAC |
| Poles | 2 |
| Trip Unit Type | Thermal-Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | I-Line Style Plug-In |
| Terminal Connection | Line I-Line / Load Lug |
| Wire Range | AWG 14–AWG 2/0 (Cu/Al) |
| Insulation Voltage (Ui) | 800 V |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Utilization Category | Category A |
| Operating Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Durability | 20,000 mechanical / 10,000 electrical cycles |
| Ingress Protection | IP40 (front cover) |
| Compliance Standards | UL, CSA, CE, IEC, NEMA, NOM, CCC, EAC, RoHS |
| Dimensions (H × W × D) | 5.39 × 2.13 × 3.50 in (137 × 54 × 89 mm) |
| Weight | 2.10 lb (0.95 kg) |
Information About BGA260501
The BGA260501 is part of Schneider Electric’s PowerPact B-Series, known for its compact molded case design and superior electrical protection. It uses a thermal-magnetic trip mechanism housed in a durable BGA frame, supporting both aluminum and copper conductors from AWG 14 to AWG 2/0. The I-Line plug-in connection simplifies mounting within panelboards and switchboards while ensuring a safe, vibration-resistant interface. Compliant with UL, CSA, CE, IEC, and NOM standards, the BGA260501 offers an interrupting capacity up to 100 kA at 240 VAC, making it ideal for critical power distribution environments.
Key Features:
- Rated Current 50 A: Provides reliable circuit protection for standard commercial and light industrial applications.
- High Interrupting Capacity: Handles up to 100 kA at 240 VAC for enhanced fault protection.
- Thermal-Magnetic Trip Unit: Offers long-time and instantaneous protection for overload and short-circuit conditions.
- I-Line Plug-In Connection: Enables quick, tool-free installation and a secure mechanical interface.
- Compact B-Frame Design: Saves panel space while maintaining strong electrical and mechanical durability.
- Wide Operating Temperature Range: Performs reliably from -25°C to +70°C (-13°F to +158°F).
- Global Certifications: Meets UL, CSA, CE, NEMA, IEC, NOM, and RoHS standards for worldwide use.
- Durable Performance: Rated for up to 20,000 mechanical and 10,000 electrical operating cycles.
The BGA260501 delivers the reliability and precision required for safe, efficient power distribution in demanding electrical systems.
