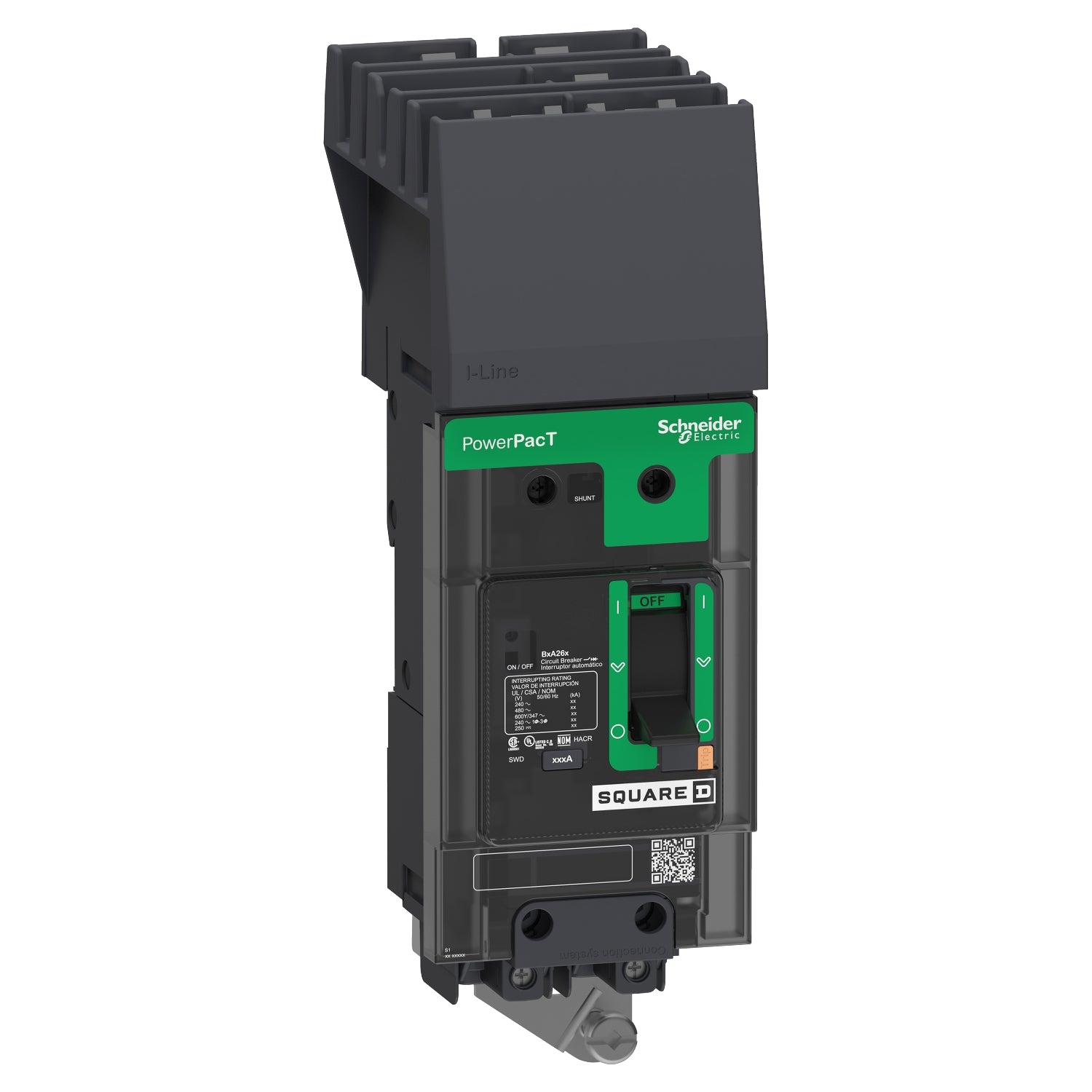

BGA260601 | Square D 60A 2-Pole PowerPact B Molded Case Circuit Breaker 600Y/347VAC
- Regular price
- $1,136.00
- Sale price
- $1,136.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BGA260601
Description
The Square D BGA260601 by Schneider Electric is a PowerPact B-Frame molded case circuit breaker engineered for safe and efficient electrical distribution. Rated at 60 amps and 600Y/347 VAC, this 2-pole unit provides dependable thermal-magnetic protection against overloads and short circuits. Designed for I-Line plug-in mounting, the BGA260601 ensures reliable performance in commercial and industrial power systems where compact, high-capacity protection is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | BGA260601 |
| Subcategory | Molded Case |
| Series | PowerPact B |
| Frame Type | BGA |
| Amperage Rating | 60 A |
| Voltage Rating | 600Y/347 VAC |
| Poles | 2 |
| Phase | 1 |
| Trip Unit Type | Thermal-Magnetic |
| Interrupting Capacity | 18 kA @ 600Y/347 VAC / 100 kA @ 240 VAC |
| Mounting Type | I-Line Plug-In |
| Connection Type | I-Line Line / Mechanical Lugs Load |
| Wire Size Range | AWG 14 to AWG 2/0 (Al/Cu) |
| Torque Range | 31.9–54.9 lbf·in (3.6–6.2 N·m) |
| Durability | 20,000 mechanical / 10,000 electrical cycles |
| Insulation Voltage (Ui) | 800 V |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Operating Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Storage Temperature Range | -50°C to +85°C (-58°F to +185°F) |
| Ingress Protection | IP40 (front cover) |
| Certifications | UL, CSA, NOM, IEC, CE, CCC, EAC |
| Application | Distribution, HACR rated |
| Dimensions (H x W x D) | 5.4 x 2.1 x 3.5 in (137 x 54 x 89 mm) |
| Weight | 2.1 lb (0.95 kg) |
Information About BGA260601
The BGA260601 is part of the Square D PowerPact B Series, a robust line of molded case circuit breakers built for precise circuit protection in distribution applications. It features thermal-magnetic trip technology and dual-break rotating contacts that minimize arc energy and reduce peak fault current. The breaker’s I-Line connection system simplifies installation while ensuring secure electrical contact and efficient maintenance. Certified to major international standards including UL 489, CSA, IEC 60947-2, and NOM, the BGA260601 is suitable for global installations demanding high reliability and compact form.
Key Features:
- Thermal-Magnetic Trip Technology: Provides reliable overload and short-circuit protection for critical circuits.
- I-Line Plug-In Mounting: Enables quick installation and firm line-side connection in I-Line panels.
- High Interrupting Capacity: Rated up to 18 kA at 600Y/347 VAC and 100 kA at 240 VAC for demanding electrical systems.
- Compact Molded Case Design: Delivers powerful protection in a space-saving form factor.
- Durability: 20,000 mechanical and 10,000 electrical operation cycles ensure long-term reliability.
- Temperature and Altitude Resilience: Operates from -25°C to +70°C and up to 2000 m without derating.
- Compliance with Global Standards: UL, CSA, NOM, IEC, CE, and NEMA certifications for worldwide use.
- Integral Push-to-Trip Button: Allows manual circuit testing and tripping for added safety.
The BGA260601 delivers the reliability and precision required for consistent power protection in commercial, industrial, and institutional electrical distribution systems.
