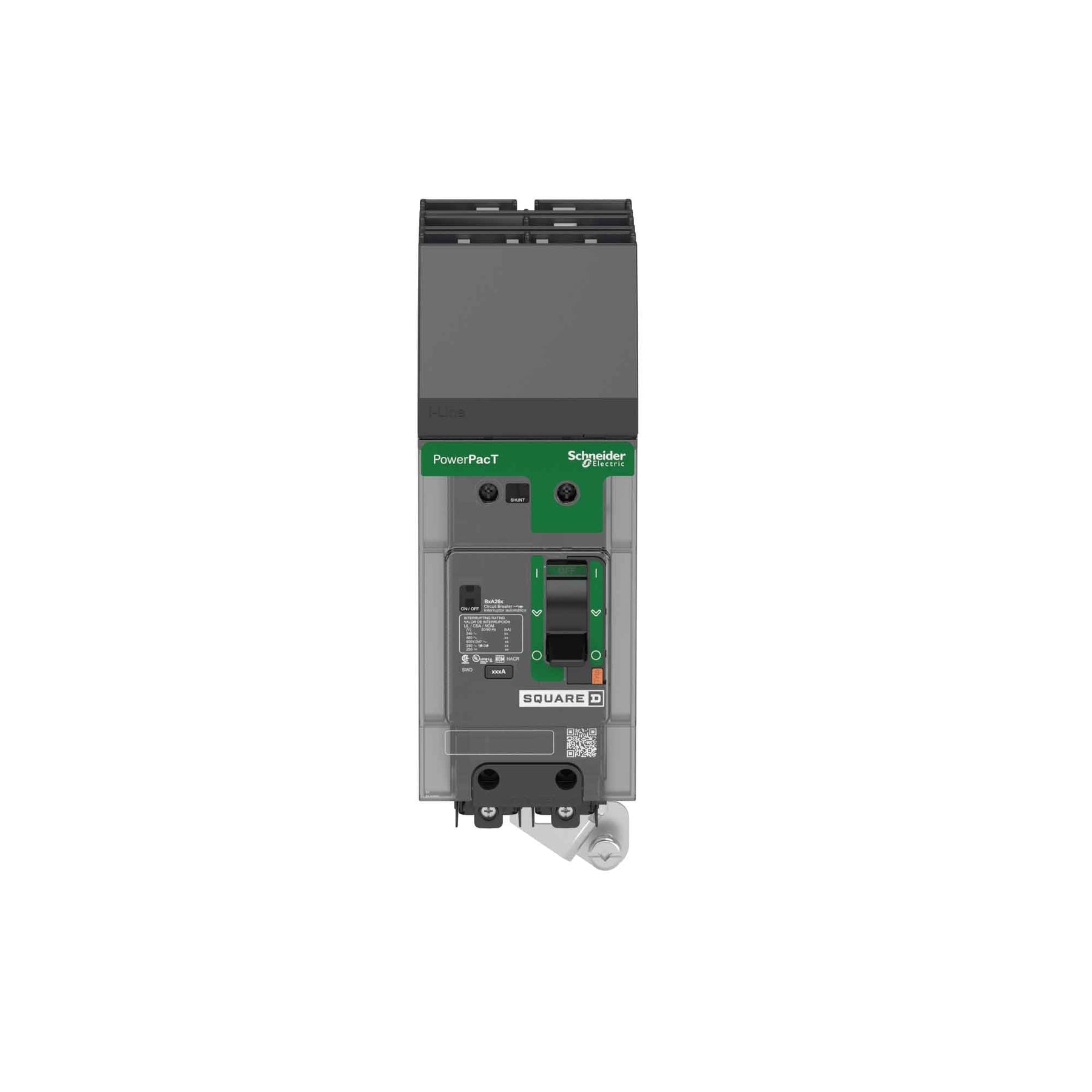

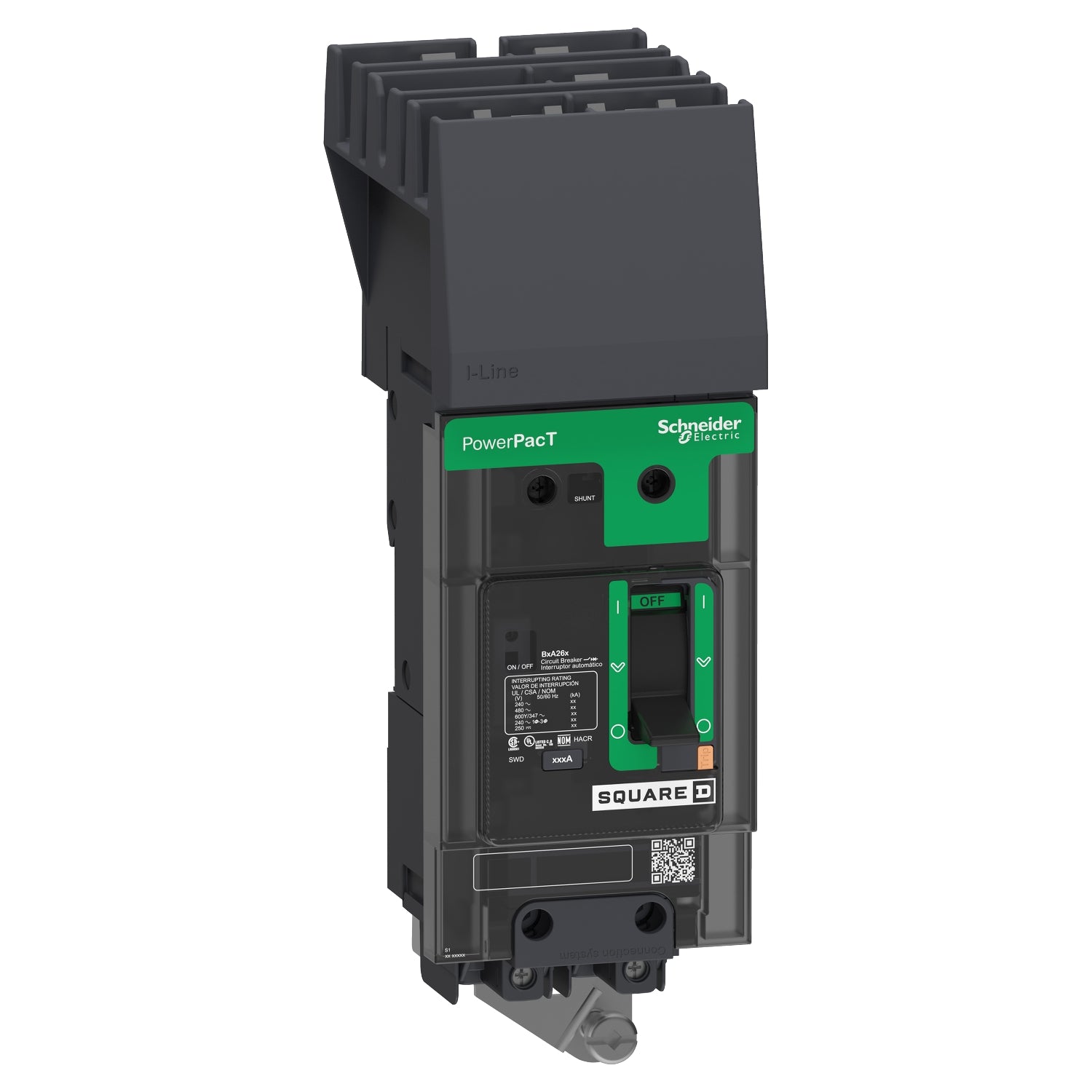

BGA260602 | Square D 60A 2-Pole PowerPact B Molded Case Circuit Breaker 600Y/347VAC
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BGA260602
Description
The Square D BGA260602 by Schneider Electric is a 2-pole thermal-magnetic molded case circuit breaker rated for 60 amps and 600Y/347 VAC. Designed with an I-Line plug-in connection, it offers dependable protection against overloads and short circuits in commercial and industrial power distribution systems. The breaker provides both long-time and instantaneous trip functions, ensuring precise circuit control and reliable operation under demanding electrical conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | BGA260602 |
| Subcategory | Molded Case |
| Series | PowerPact B |
| Frame Type | BGA |
| Amperage Rating | 60 A |
| Voltage Rating | 600Y/347 VAC |
| Interrupting Capacity | 35 kA @ 480 VAC |
| Poles | 2 |
| Trip Unit Type | Thermal-Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | I-Line Style Plug-In |
| Terminal Connection | Line I-Line / Load Lug |
| Wire Range | AWG 14–AWG 2/0 (Cu/Al) |
| Insulation Voltage (Ui) | 800 V |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Operating Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Durability | 20,000 mechanical / 10,000 electrical cycles |
| Compliance Standards | UL, CSA, CE, NEMA, NOM, IEC, CCC, EAC, RoHS |
| Ingress Protection | IP40 (front cover) |
| Dimensions (H × W × D) | 5.39 × 2.13 × 3.50 in (137 × 54 × 89 mm) |
| Weight | 2.10 lb (0.95 kg) |
Information About BGA260602
The BGA260602 is part of Schneider Electric’s PowerPact B-Series circuit breakers, known for their compact design, high performance, and compliance with global standards. It features a BGA frame and non-interchangeable thermal-magnetic trip unit, providing consistent long-time and instantaneous protection. The breaker connects through the I-Line system for quick, secure installation and supports aluminum or copper conductors from AWG 14 to AWG 2/0. Built to UL 489 and IEC 60947-2 standards, the BGA260602 is suitable for use in lighting panels, switchboards, and distribution applications up to 35 kA at 480 VAC.
Key Features:
- Rated Current 60 A: Delivers stable circuit protection for standard industrial and commercial loads.
- High Interrupting Capacity: Withstands up to 35 kA at 480 VAC for dependable fault interruption.
- Thermal-Magnetic Trip Unit: Combines long-time and instantaneous trip functions for precise overload and short-circuit protection.
- I-Line Plug-In Connection: Simplifies installation and ensures a secure, maintenance-friendly electrical connection.
- Wide Wire Range: Supports AWG 14 to AWG 2/0 aluminum or copper conductors.
- Durable Construction: Rated for 20,000 mechanical and 10,000 electrical cycles for long service life.
- Certified to Major Standards: Meets UL, CSA, CE, NEMA, IEC, NOM, CCC, EAC, and RoHS certifications.
- Temperature and Altitude Rated: Operates reliably from -25°C to +70°C and up to 2000 m altitude without derating.
The BGA260602 delivers the reliability and precision required for efficient and safe power distribution in modern electrical systems.
