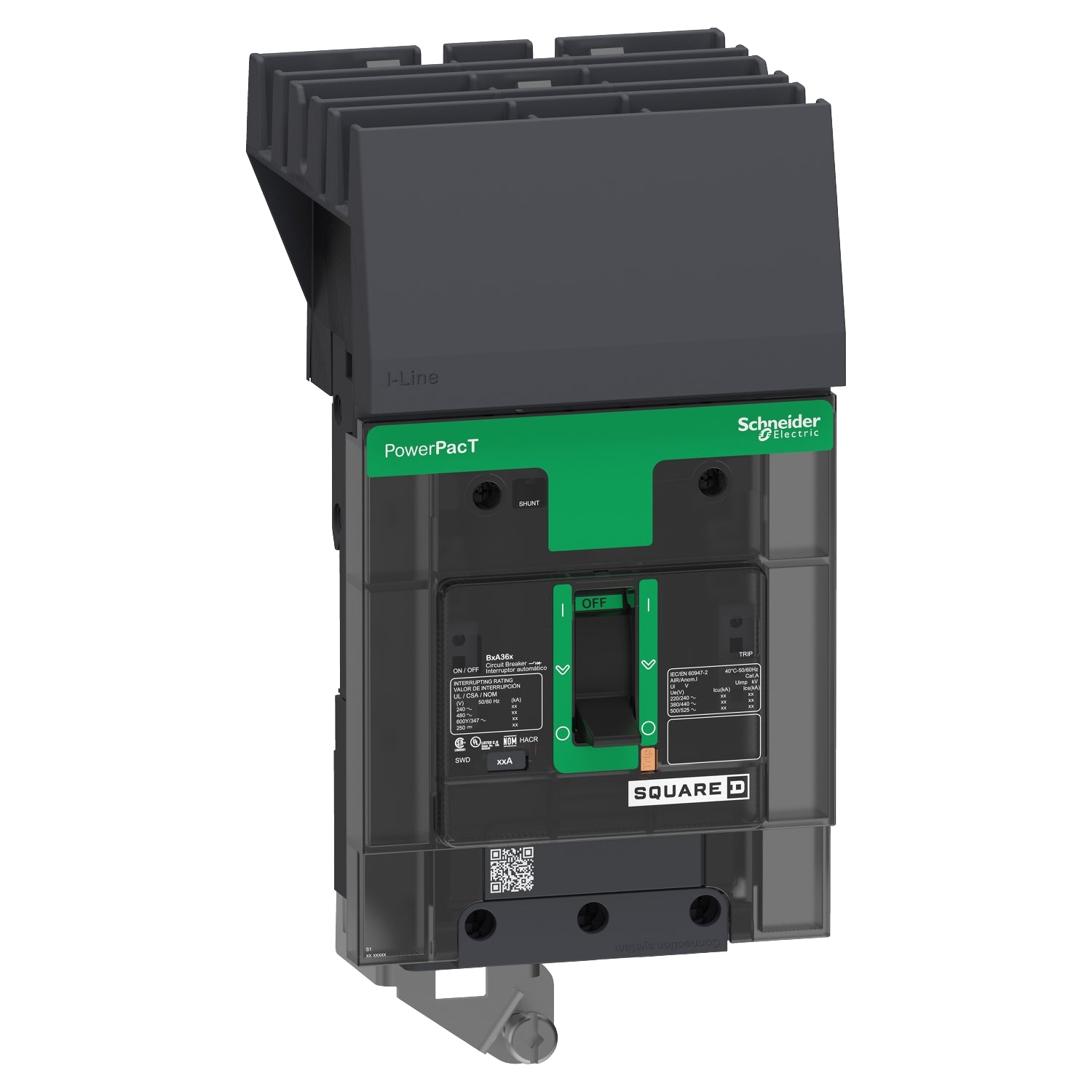

BGA36020 | Schneider Electric 20A PowerPact BGA 3-Pole I-Line Plug-In Thermal Magnetic Circuit Breaker
- Regular price
- $739.00
- Sale price
- $739.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BGA36020
Description
The Schneider Electric BGA36020 is a 20A, 600Y/347V molded case circuit breaker from the PowerPact BGA series, designed for three-phase electrical distribution systems. This I-Line Style Plug-In breaker includes LI (Long-Time and Instantaneous) thermal-magnetic protection and provides a 35 kA interrupting rating at 480V. Its B-Frame construction and ABC phase connection ensure secure installation and dependable performance in commercial and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | BGA36020 |
| Subcategory | Molded Case Circuit Breaker |
| Family | PowerPact |
| Type | BGA |
| Voltage Rating | 600Y/347 V |
| Amperage Rating | 20 A |
| Phase | 3-Phase |
| Poles | 3 |
| Frame Type | B Frame |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time & Instantaneous |
| AIC Rating | 35 kA @ 480 V |
| Connection Style | I-Line Style Plug-In |
| Phase Connection | ABC |
| Termination | Load-side mechanical lugs |
Information About BGA36020
The BGA36020 is part of Schneider Electric’s PowerPact BGA line, engineered for reliable branch-circuit protection in three-phase I-Line panelboards. Its thermal-magnetic trip unit delivers overload protection with a thermal element and instantaneous short-circuit response through a magnetic element, forming a complete LI trip profile. The breaker features a 3-pole, B-Frame design suitable for 600Y/347V systems and includes load-side mechanical lugs for straightforward wiring. With a 35 kA interrupt rating at 480V and an I-Line plug-in connection method, the BGA36020 provides fast, secure installation and stable engagement with panel busbars—ideal for industrial and commercial distribution systems.
Key Features:
- Thermal-magnetic trip unit: Provides overload (thermal) and short-circuit (magnetic) protection.
- LI trip functions: Long-Time and Instantaneous response for comprehensive protection.
- 20A, 600Y/347V rating: Suitable for light industrial and commercial three-phase loads.
- High interrupting capacity: 35 kA @ 480V for enhanced fault-clearing performance.
- I-Line Style Plug-In design: Enables quick, secure installation onto I-Line bus structures.
- 3-pole B-Frame construction: Ensures full-phase protection and compact panel integration.
- ABC phase connection: Correct phase alignment for I-Line systems.
- Load-side mechanical lugs: Support straightforward conductor termination.
- Durable molded case: Built for long-term reliability in demanding installations.
The BGA36020 delivers the reliability and precision required for safe, high-performance protection of industrial three-phase distribution systems.
