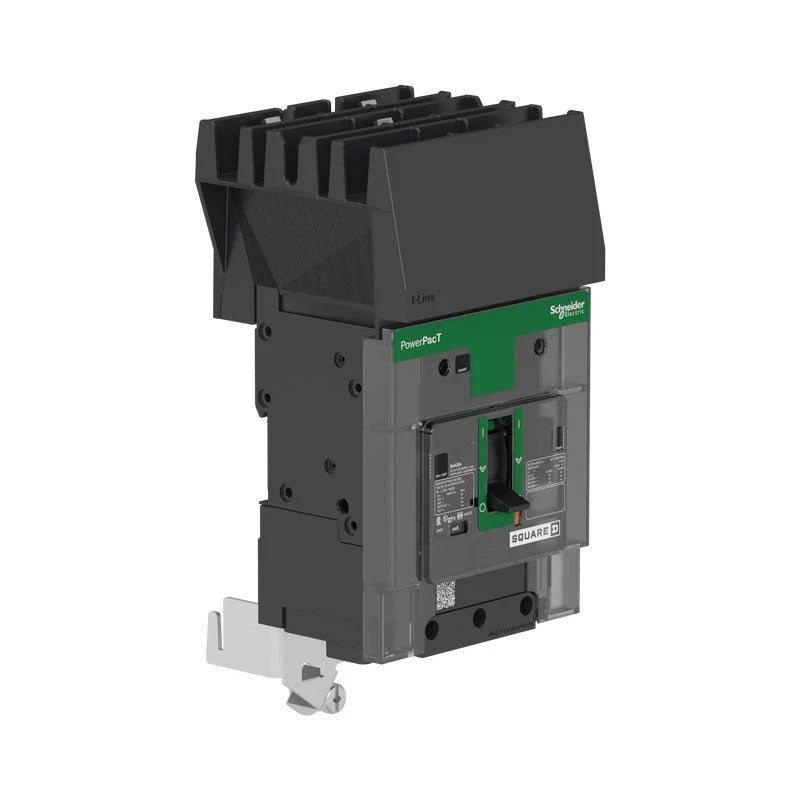

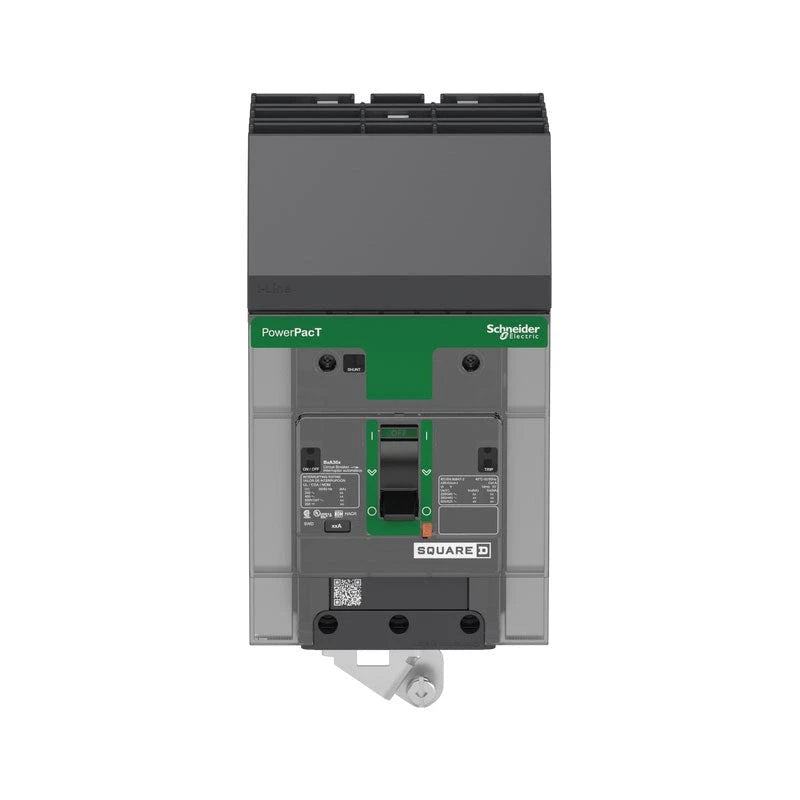

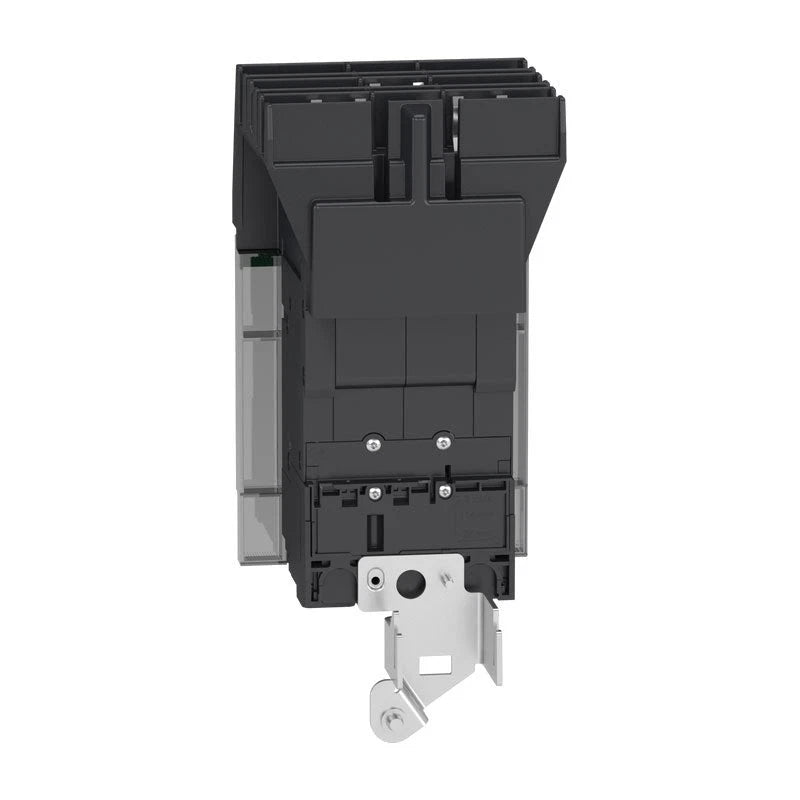

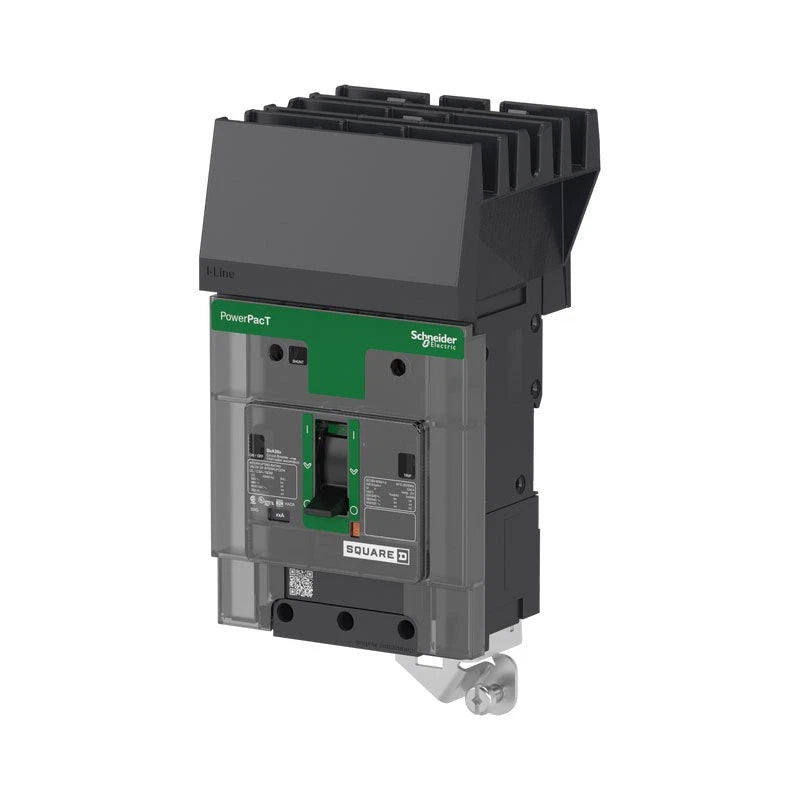

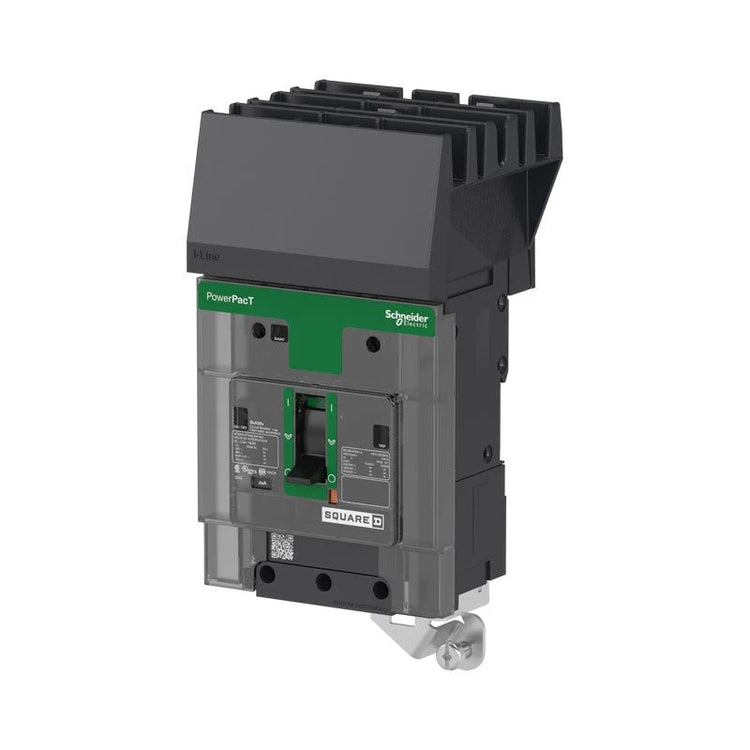

BGA36040 | Square D PowerPact BGA 40A 3-Pole 600V I-Line Circuit Breaker
- Regular price
- $1,342.00
- Sale price
- $1,342.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BGA36040
Description
The Square D BGA36040 is a three-pole molded case circuit breaker designed for dependable overcurrent and short-circuit protection in industrial power distribution systems. Rated at 40 amps and up to 600 VAC, this breaker uses thermal-magnetic trip technology to provide long-time and instantaneous protection. It features I-Line style plug-in mounting for secure installation in compatible panelboards and switchgear.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | BGA36040 |
| Subcategory | Circuit Breakers |
| Series | BGA (PowerPact) |
| Product Type | Molded Case Circuit Breaker |
| Frame Type | B-Frame |
| Rated Current | 40 A |
| Number of Poles | 3 |
| Phase | Three Phase |
| Voltage Rating | 600 VAC |
| Protection Type | Thermal-Magnetic |
| Interrupting Rating | 35 kA |
| Mounting Type | I-Line Style Plug-In |
| Terminal Connection | Plug-In Line / Lug Load |
| Wire Size | AWG 14–2/0 Copper or Aluminum |
| Continuous Current Rating | 80% |
| Height | 5.39 in |
| Width | 3.19 in |
| Depth | 3.50 in |
| Weight | 2.90 lb |
Information About BGA36040
The BGA36040 is part of Square D’s PowerPact BGA series, engineered for compact size and reliable performance in commercial and industrial applications. This breaker incorporates a thermal-magnetic trip unit that protects circuits against overloads and short-circuit faults while maintaining stable operation. It is designed for three-phase systems and supports aluminum and copper conductors across a wide AWG range. Manufactured to meet UL, CSA, NEMA, and IEC standards, the breaker is suited for global power distribution environments.
Key Features:
- 40 Amp Current Rating: Provides accurate protection for medium-load three-phase circuits.
- Three-Pole Configuration: Ensures balanced protection across all phases.
- 600 VAC Voltage Rating: Suitable for high-voltage industrial distribution systems.
- Thermal-Magnetic Protection: Combines overload and instantaneous short-circuit protection.
- I-Line Style Plug-In Mounting: Enables fast, secure installation in compatible equipment.
- 35 kA Interrupting Rating: Designed to safely interrupt high fault currents.
- Wide Conductor Compatibility: Accepts copper or aluminum conductors from AWG 14 to 2/0.
The BGA36040 delivers the reliability and precision required for industrial and commercial power distribution protection.
