BGA36050 | Schneider Electric Circuit Breaker
- Regular price
- $619.00
- Sale price
- $619.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

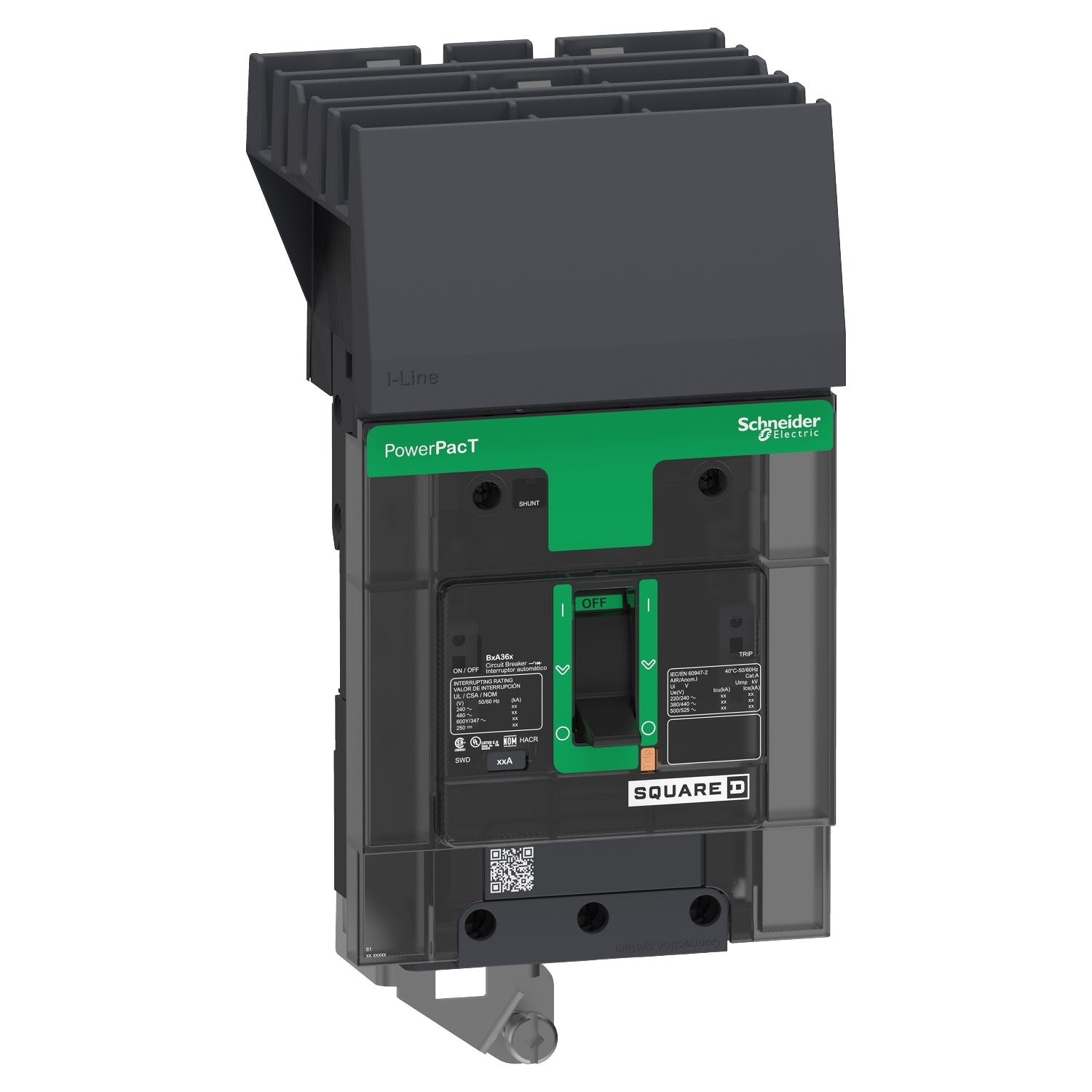

Product Description P/N: BGA36050
Description
The BGA36050 is a PowerPacT B-Frame circuit breaker with a current rating of 50 amperes (50A), designed for thermal-mechanical circuit protection. It features a three-pole (3 Pole) configuration and operates at a voltage of 600Y/347 volts AC (600Y/347VAC). The circuit breaker has a breaking capacity of 18 kiloamperes (18kA) and utilizes a thermal magnetic mechanism.
This PowerPacT B-Frame circuit breaker is compact and offers a wide range of accessories, auxiliaries, and connection options. Equipped with dual-break rotating contacts, it reduces peak current during short circuit faults. It includes an integral push-to-trip button in the cover for manual tripping.
Technical Specifications
|
Range |
PowerPact |
|
Product Name |
PowerPact B |
|
Device Short Name |
BG 050 |
|
Product or Component Type |
Circuit Breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
50 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
Rated Operational Voltage (Ue) |
525 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage (Uimp) |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-Magnetic |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage (Ui) |
800 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
Mechanical Durability |
20,000 cycles IEC 947-1 Annex K ed 5.2 |
|
Electrical Durability |
10,000 cycles IEC 947-1 Annex K ed 5.2 |
|
Connection Pitch |
1.06 in (27 mm) |
|
AWG Gauge |
AWG 14...AWG 2/0 aluminium/copper |
|
Local Signalling |
Presence of Auxiliary Contacts Flag Green) |
|
Mounting Mode |
I-Line |
|
Electrical Connection |
I-Line Connection, Line |
|
|
Lugs, Load |
|
Mounting Height |
4.49 in (114 mm) |
|
Power Wire Stripping Length |
0.79 in (20 mm) |
|
Color |
Gray (RAL 7016) |
|
Pitch |
9 mm |
|
Height |
5.39 in (137 mm) |
|
Width |
3.19 in (81 mm) |
|
Depth |
3.50 in (89 mm) |
|
Net Weight |
2.90 lb (1.315 kg) |
|
Quantity per Set |
Set of 1 |
|
Phase Connection |
ABC |
|
Circuit Breaker Application |
HACR Rated |
Information About BGA36050
The BGA36050 is a circuit breaker belonging to the PowerPacT B series, designed to provide thermal-magnetic circuit protection. With a current rating of 50 amperes (50A) and a three-pole (3 Pole) configuration, it operates at a voltage of 600Y/347 volts AC (600Y/347VAC). This circuit breaker boasts a breaking capacity of 18 kiloamperes (18kA) at 600Y/347VAC.
Key features of the PowerPacT B-Frame circuit breaker include thermal-mechanical circuit protection in a compact size and a wide range of accessories, auxiliaries, and connection options. Equipped with dual-break rotating contacts, it reduces peak current during short circuit faults. Additionally, an integral push-to-trip button is provided in the cover for manual tripping.
The PowerPacT B-Frame circuit breaker is available in both unit mount (1 to 4-pole construction) and I-Line (1 to 3-pole construction) configurations. I-Line circuit breakers feature a shrouded I-Line plug on the jaw, with I-Line terminations on the line side and mechanical lugs on the load side.
