BGA36060 | Schneider Electric Circuit Breaker
- Regular price
- $662.00
- Sale price
- $662.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BGA36060
Description

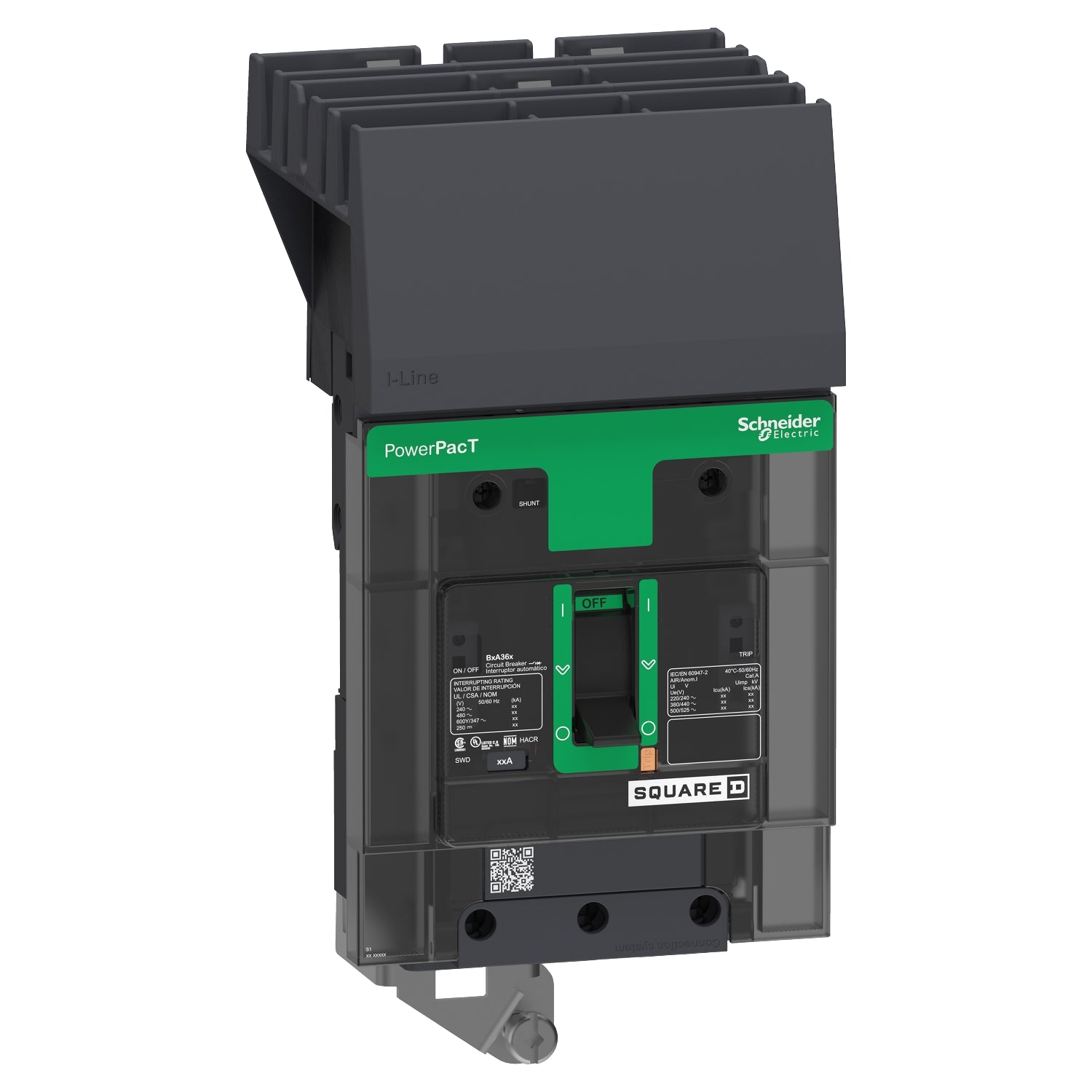

The BGA36060 is a 3-pole Circuit Breaker from the PowerPacT B series. It operates at 60A and is designed for use with 600Y/347VAC systems.
Featuring thermal magnetic circuit protection, this PowerPacT B-Frame circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. Equipped with dual-break rotating contacts, it reduces peak current during short circuit faults.
All PowerPacT B-Frame circuit breakers include an integral push-to-trip button in the cover for manual tripping. Available in 1 to 4-pole unit mount and 1 to 3-pole I-Line constructions, I-Line circuit breakers feature a shrouded I-Line plug on the jaw.
Technical Specifications
|
Part # |
BGA36060 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact B |
|
Device short name |
BG 060 |
|
Product or component type |
Circuit Breaker |
|
Device application |
Distribution |
|
In Rated Current |
60 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
Rated Operational Voltage (Ue) |
525 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage (Uimp) |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage (Ui) |
800 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
Mechanical Durability |
20000 cycles IEC 947-1 Annex K ed 5.2 |
|
Electrical Durability |
10000 cycles IEC 947-1 Annex K ed 5.2 |
|
Connection Pitch |
1.06 in (27 mm) |
|
AWG Gauge |
AWG 14...AWG 2/0 aluminum/copper |
|
Local Signalling |
Presence of auxiliary contacts flag green) |
|
Mounting Mode |
I-Line |
|
Electrical Connection |
I-Line connection, line |
|
|
Lugs, load |
|
Mounting Height |
4.49 in (114 mm) |
|
Power Wire Stripping Length |
0.79 in (20 mm) |
|
Color |
Grey RAL 7016) |
|
9 mm Pitches |
9 |
|
Height |
5.39 in (137 mm) |
|
Width |
3.19 in (81 mm) |
|
Depth |
3.50 in (89 mm) |
|
Net Weight |
2.90 lb(US) (1.315 kg) |
|
Quantity per Set |
Set of 1 |
|
Phase Connection |
ABC |
|
Circuit Breaker Application |
HACR rated |
Information About BGA36060
The BGA36060 is a circuit breaker belonging to the PowerPacT B series, designed to deliver thermal-mechanical circuit protection in a compact form factor, offering versatile accessories, auxiliaries, and connection options. Featuring thermal magnetic circuit protection, this PowerPacT B-Frame breaker boasts a robust breaking capacity of 18kA at 600Y/347VAC.
Equipped with dual-break rotating contacts, these circuit breakers effectively mitigate peak current levels during short circuit faults. Additionally, they feature an integral push-to-trip button in the cover, enabling manual tripping of the circuit breaker when necessary.
Available in both 1 to 4-pole unit mount construction and 1 to 3-pole I-Line construction, the PowerPacT B-Frame circuit breakers cater to diverse installation requirements. I-Line circuit breakers are furnished with a shrouded I-Line plug on the jaw, ensuring enhanced safety during operation.
