Part #: BGA36100 Manufactured by: Schneider Electric
Regular price
$584.00
Sale price
$584.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The BGA36100 circuit breaker from the PowerPacT B series combines robust thermal-magnetic circuit protection with a compac...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: BGA36100
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: BGA36100

Description / Specifications

Description

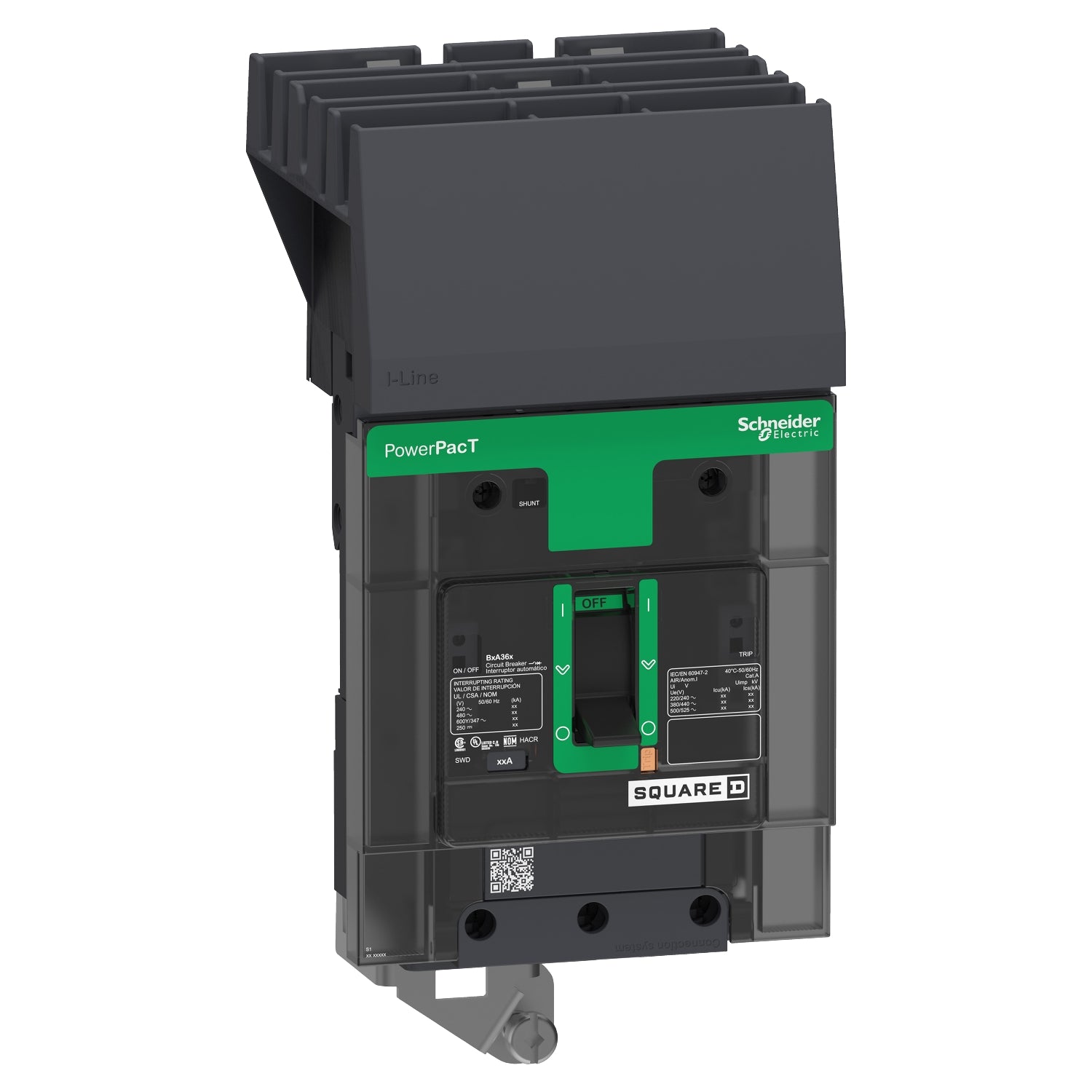

The BGA36100 is a PowerPacT B-Frame circuit breaker designed to provide thermal magnetic circuit protection in a compact form factor, suitable for various applications. Offering robust performance, it features a breaking capacity of 18kA at 600Y/347VAC. Equipped with dual-break rotating contacts, it minimizes peak current during short circuit faults, ensuring reliable operation under demanding conditions. The circuit breaker includes an integral push-to-trip button for manual tripping.





Technical Specifications

Part #

BGA36100

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

PowerPact

Product name

PowerPact B

Device short name

BG 100

Product or Component Type

Circuit breaker

Device Application

Distribution Line

Rated Current

100 A

Number of Poles

3P

Control Type

Toggle

Breaking Capacity Code

G

Rated Operational Voltage ([Ue])

525 V AC 50/60 Hz UL 489

Network Frequency

50/60 Hz

Rated Impulse Withstand Voltage ([Uimp])

8 kV IEC 60947-2

Trip Unit Technology

Thermal-magnetic

Continuous Current Rating

80 %

Rated Insulation Voltage ([Ui])

800 V IEC 60947-2

Suitability for Isolation

Yes IEC 60947-2

Utilisation Category

Category A

Mechanical Durability

20,000 cycles IEC 947-1 Annex K ed 5.2

Electrical Durability

10,000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Connection Pitch

1.06 in (27 mm)

AWG Gauge

AWG 14...AWG 2/0 aluminium/copper

Local Signalling

Presence of auxiliary contacts flag green)

Mounting Mode

I-Line

Electrical Connection

I-Line connection, line

Lugs, Load

Yes

Mounting Height

4.49 in (114 mm)

Power Wire Stripping Length

0.79 in (20 mm)

Color

Gray RAL 7016

9 mm Pitches

9

Height

5.39 in (137 mm)

Width

3.19 in (81 mm)

Depth

3.50 in (89 mm)

Net Weight

2.90 lb(US) (1.315 kg)

Quantity per Set

Set of 1

Phase Connection

ABC



Information About BGA36100

The BGA36100 circuit breaker, part of the PowerPacT B-Frame series, delivers robust thermal-magnetic circuit protection in a compact design, offering versatile accessory, auxiliary, and connection options. Specifically engineered for demanding applications, the PowerPacT B-Frame ensures reliable operation with a rated breaking capacity of 18kA at 600Y/347VAC. Featuring dual-break rotating contacts, these circuit breakers effectively mitigate peak current levels during short circuit faults, enhancing system reliability.

All PowerPacT B-Frame circuit breakers incorporate an integral push-to-trip button on the cover for manual tripping capability, facilitating maintenance and operational flexibility. Available in configurations ranging from 1 to 4-pole unit mount and 1 to 3-pole I-Line construction, I-Line variants are equipped with a shrouded plug on the jaw. This model includes I-Line terminations on the line side and mechanical lugs on the load side, ensuring secure electrical connections.

The BGA36100 circuit breaker is specifically rated for 100A across 3 poles with a continuous current rating of 80%, supporting ABC phase connection requirements. Compliant with UL, CSA, NOM, and IEC standards, and bearing the CE mark, PowerPacT B circuit breakers uphold stringent regulatory and safety protocols, ensuring suitability for diverse international markets.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The BGA36100 is a PowerPacT B-Frame circuit breaker designed to provide thermal magnetic circuit protection in a compact form factor, suitable for various applications. Offering robust performance, it features a breaking capacity of 18kA at 600Y/347VAC. Equipped with dual-break rotating contacts, it minimizes peak current during short circuit faults, ensuring reliable operation under demanding conditions. The circuit breaker includes an integral push-to-trip button for manual tripping.





Technical Specifications

Part #

BGA36100

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

PowerPact

Product name

PowerPact B

Device short name

BG 100

Product or Component Type

Circuit breaker

Device Application

Distribution Line

Rated Current

100 A

Number of Poles

3P

Control Type

Toggle

Breaking Capacity Code

G

Rated Operational Voltage ([Ue])

525 V AC 50/60 Hz UL 489

Network Frequency

50/60 Hz

Rated Impulse Withstand Voltage ([Uimp])

8 kV IEC 60947-2

Trip Unit Technology

Thermal-magnetic

Continuous Current Rating

80 %

Rated Insulation Voltage ([Ui])

800 V IEC 60947-2

Suitability for Isolation

Yes IEC 60947-2

Utilisation Category

Category A

Mechanical Durability

20,000 cycles IEC 947-1 Annex K ed 5.2

Electrical Durability

10,000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Connection Pitch

1.06 in (27 mm)

AWG Gauge

AWG 14...AWG 2/0 aluminium/copper

Local Signalling

Presence of auxiliary contacts flag green)

Mounting Mode

I-Line

Electrical Connection

I-Line connection, line

Lugs, Load

Yes

Mounting Height

4.49 in (114 mm)

Power Wire Stripping Length

0.79 in (20 mm)

Color

Gray RAL 7016

9 mm Pitches

9

Height

5.39 in (137 mm)

Width

3.19 in (81 mm)

Depth

3.50 in (89 mm)

Net Weight

2.90 lb(US) (1.315 kg)

Quantity per Set

Set of 1

Phase Connection

ABC



Information About BGA36100

The BGA36100 circuit breaker, part of the PowerPacT B-Frame series, delivers robust thermal-magnetic circuit protection in a compact design, offering versatile accessory, auxiliary, and connection options. Specifically engineered for demanding applications, the PowerPacT B-Frame ensures reliable operation with a rated breaking capacity of 18kA at 600Y/347VAC. Featuring dual-break rotating contacts, these circuit breakers effectively mitigate peak current levels during short circuit faults, enhancing system reliability.

All PowerPacT B-Frame circuit breakers incorporate an integral push-to-trip button on the cover for manual tripping capability, facilitating maintenance and operational flexibility. Available in configurations ranging from 1 to 4-pole unit mount and 1 to 3-pole I-Line construction, I-Line variants are equipped with a shrouded plug on the jaw. This model includes I-Line terminations on the line side and mechanical lugs on the load side, ensuring secure electrical connections.

The BGA36100 circuit breaker is specifically rated for 100A across 3 poles with a continuous current rating of 80%, supporting ABC phase connection requirements. Compliant with UL, CSA, NOM, and IEC standards, and bearing the CE mark, PowerPacT B circuit breakers uphold stringent regulatory and safety protocols, ensuring suitability for diverse international markets.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
