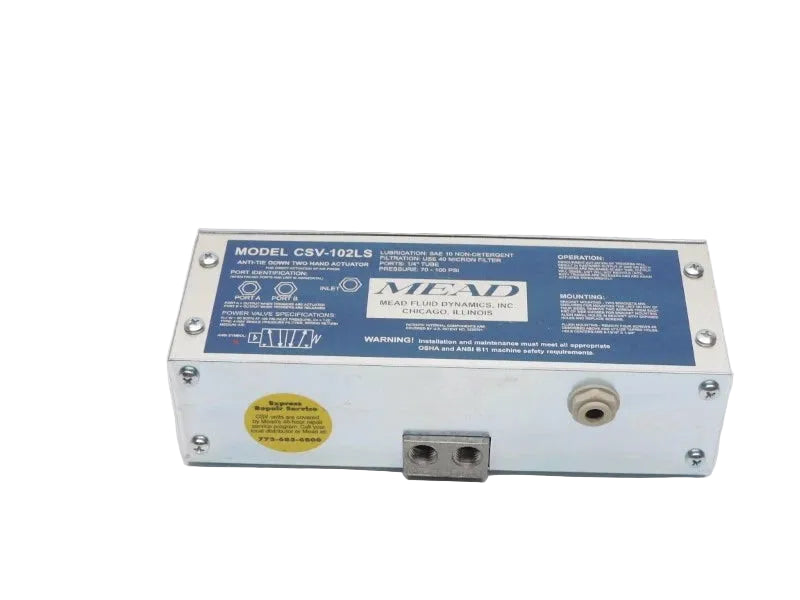

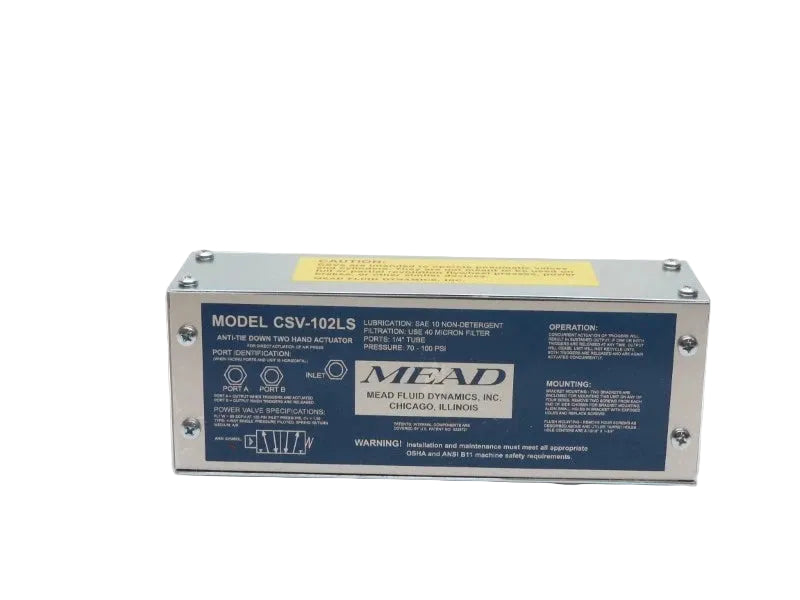

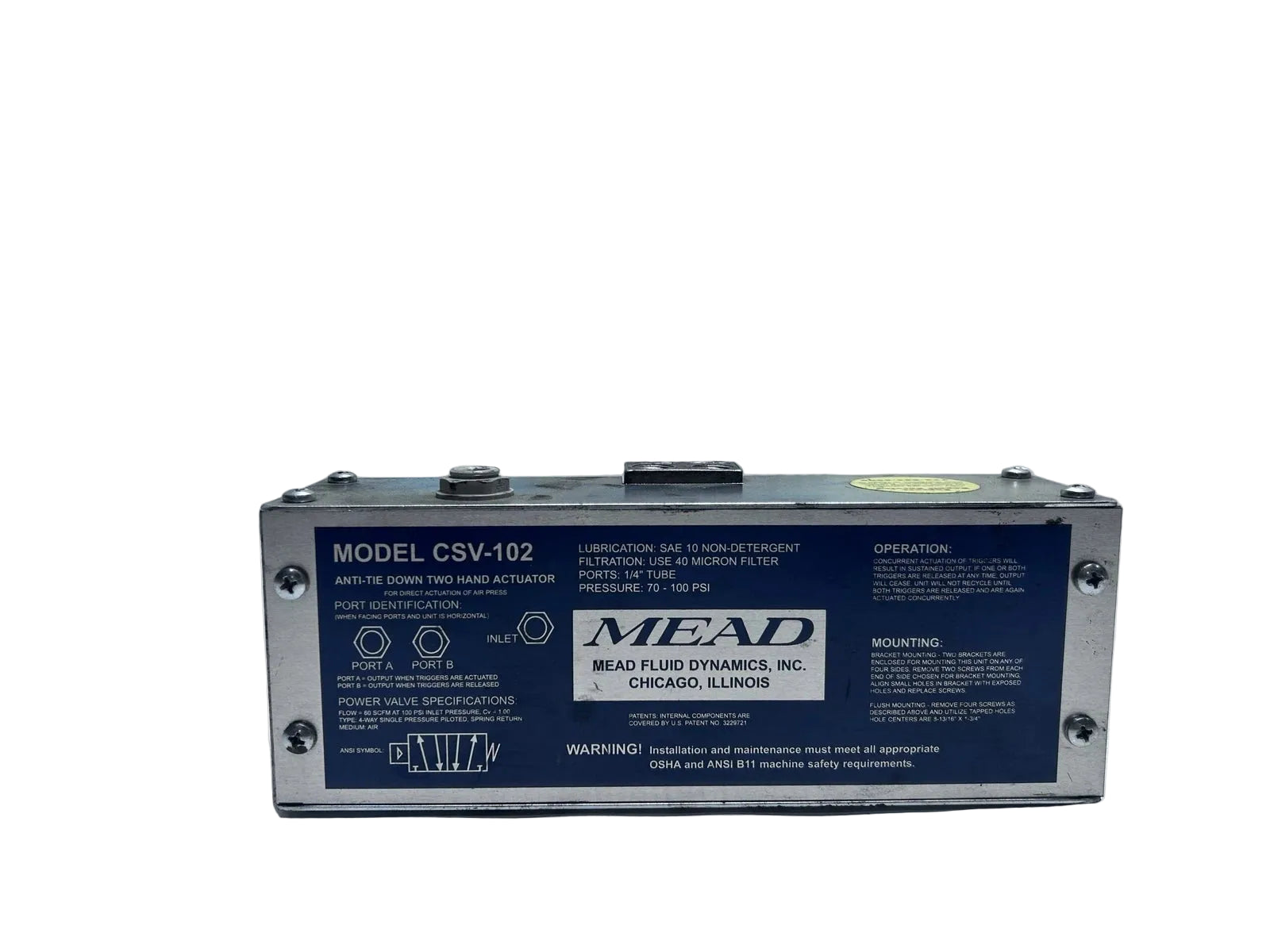

CSV-102 | Bimba-Mead Two-Hand Control Valve 1/4" NPTF 70–120 PSI
- Regular price
- $1,939.00
- Sale price
- $1,939.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CSV-102
Description
The Bimba-Mead CSV-102 is a two-hand control air valve designed to provide safe and controlled pneumatic actuation in industrial equipment. Featuring a 3-port configuration with 1/4" NPTF connections, it enables direct actuation of air cylinders and presses. This unit operates within a pressure range of 70 to 120 PSI and is suited for applications requiring coordinated dual-hand safety control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bimba-Mead |
| Category | Pneumatics |
| Part Number | CSV-102 |
| Subcategory | Two-Hand Control Valves |
| Valve Type | Two-Hand Control Air Valve |
| Configuration | 3-Port, 4-Position |
| Port Size | 1/4 in |
| Thread Type | NPTF |
| Inlet Size | 1/4 in |
| Outlet Size | 1/4 in |
| Operating Pressure Range | 70–120 PSI |
| Function | Direct Actuation of Air Cylinder or Air Press |
| For Use With | Air Press, Drill/Clamping Fixtures, Cylinders, Valves |
| Fitting Material | Plastic |
| Length | 10.44 in |
| Width | 3-1/2 in |
| Height | 3-3/16 in |
| Weight | Approx. 2.5 lbs |
Information About CSV-102
The CSV-102 is a two-hand control valve manufactured by Bimba-Mead for pneumatic safety and actuation systems. It is engineered to require simultaneous dual-hand operation, reducing the risk of accidental machine activation in press and fixture applications. Designed with 1/4" NPTF threaded ports and a 4-position configuration, it supports reliable air flow control in light assembly and clamping equipment. The valve is commonly used with air presses, drill fixtures, cylinders, and related pneumatic devices where operator safety and direct actuation are essential.
Key Features:
- Two-Hand Safety Operation: Requires simultaneous actuation to enhance operator safety.
- 3-Port Configuration: Provides controlled air routing for pneumatic devices.
- 1/4" NPTF Threaded Ports: Standard connections for easy integration into air systems.
- 4-Position Valve Design: Supports defined operational states for controlled actuation.
- Direct Air Actuation: Suitable for driving air cylinders and presses directly.
- Operating Pressure 70–120 PSI: Designed for standard industrial compressed air systems.
- Compact Form Factor: Space-efficient dimensions for panel or equipment mounting.
- Versatile Application Use: Compatible with air presses, drill fixtures, clamping systems, and light assembly equipment.
The CSV-102 delivers the reliability and precision required for safe pneumatic actuation in industrial press and fixture applications.
