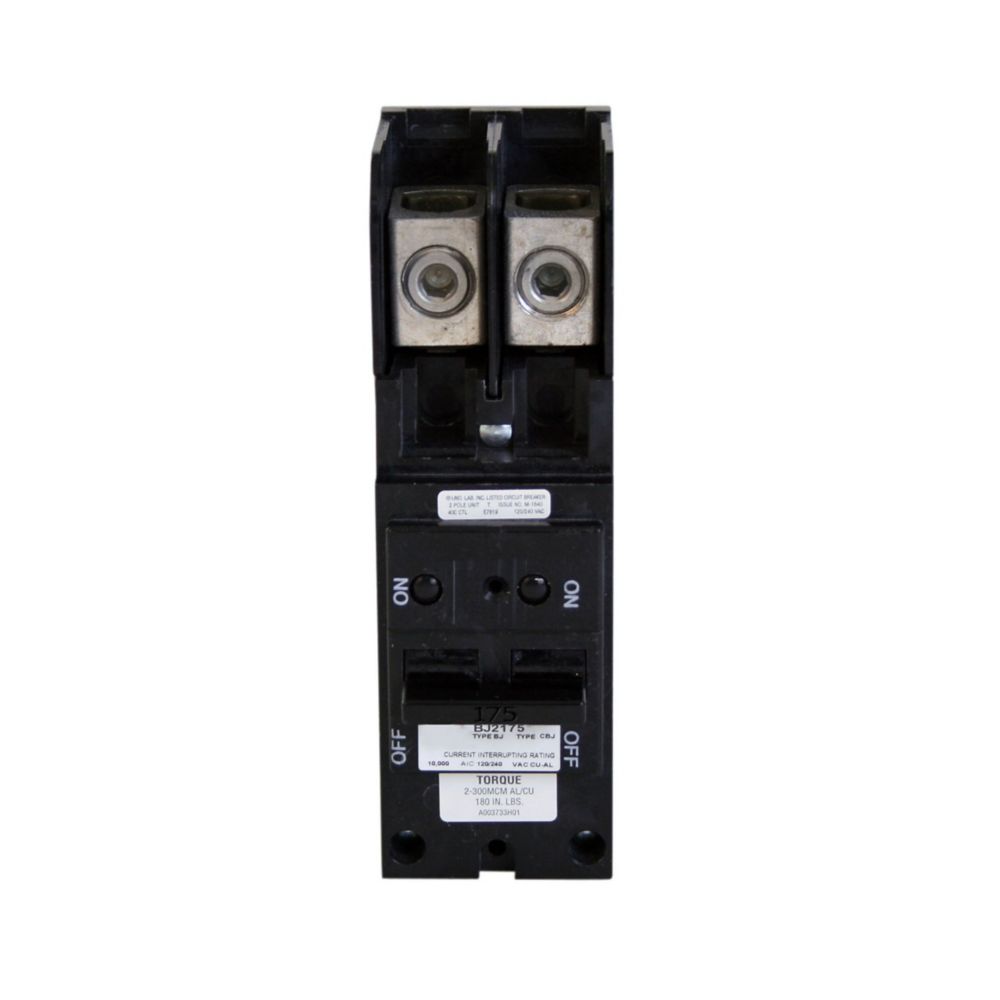

BJ2175 | Eaton BJ Sub Feed Main Circuit Breaker
- Regular price
- $1,022.00
- Sale price
- $1,022.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BJ2175
Description
The BJ2175 is an Eaton BJ Sub Feed Main Circuit Breaker. It is a Type BJ 1-inch plug-on main breaker with a current rating of 175 A and an interrupt rating of 10 kAIC. This breaker features a two-pole configuration and operates at 120/240 V. It uses a common plug-on connection and accommodates conductor sizes from #2 AWG to 300 kcmil for both copper and aluminum wires.
Technical Specifications
|
PRODUCT NAME |
Eaton BJ Sub Feed Main Circuit Breaker |
|
CATALOG NUMBER |
BJ2175 |
|
UPC |
786676367158 |
|
PRODUCT LENGTH/DEPTH |
6.5 in |
|
PRODUCT HEIGHT |
2.5 in |
|
PRODUCT WIDTH |
3.5 in |
|
PRODUCT WEIGHT |
1.8 lb |
|
TYPE |
1-inch Plug-on Main Breaker |
|
AMPERAGE RATING |
175 A |
|
VOLTAGE RATING |
120/240 V |
|
TRIP TYPE |
Common |
|
CIRCUIT BREAKER FRAME TYPE |
BJ |
|
MOUNTING METHOD |
Plug-on |
|
INTERRUPT RATING |
10 kAIC |
|
MAIN CIRCUIT BREAKER |
BJ |
|
CONNECTION |
Plug-on |
|
WIRE SIZE |
#2 AWG-300 kcmil Cu/Al |
|
NUMBER OF POLES |
Two-pole |
Information About BJ2175
The BJ2175 is a sub feed main circuit breaker manufactured by Eaton under the BJ series. This breaker is characterized by its 1-inch plug-on design, facilitating easy installation and integration into electrical systems. The device is engineered to handle an amperage rating of 175 A, making it suitable for high-demand applications. It operates within a voltage range of 120/240 V, which is typical for residential and light commercial electrical systems.
The BJ2175 is a two-pole circuit breaker, providing reliable protection across two phases. This configuration is essential for balancing loads and ensuring effective circuit isolation in dual-phase electrical systems. The interrupt rating of this breaker is 10 kAIC (kilo-amps interrupting capacity), indicating its ability to safely interrupt a short-circuit current of up to 10,000 amps without damage. This feature is crucial for maintaining safety and preventing electrical fires or equipment damage in the event of a fault.
The breaker employs a common trip type mechanism, which ensures that both poles are tripped simultaneously in the event of a fault. This synchronized tripping enhances safety by ensuring that all connected circuits are disconnected simultaneously, thereby preventing partial disconnections that could lead to hazardous conditions.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
