BJA36020 | Schneider Electric Circuit Breaker
- Regular price
- $557.00
- Sale price
- $557.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?

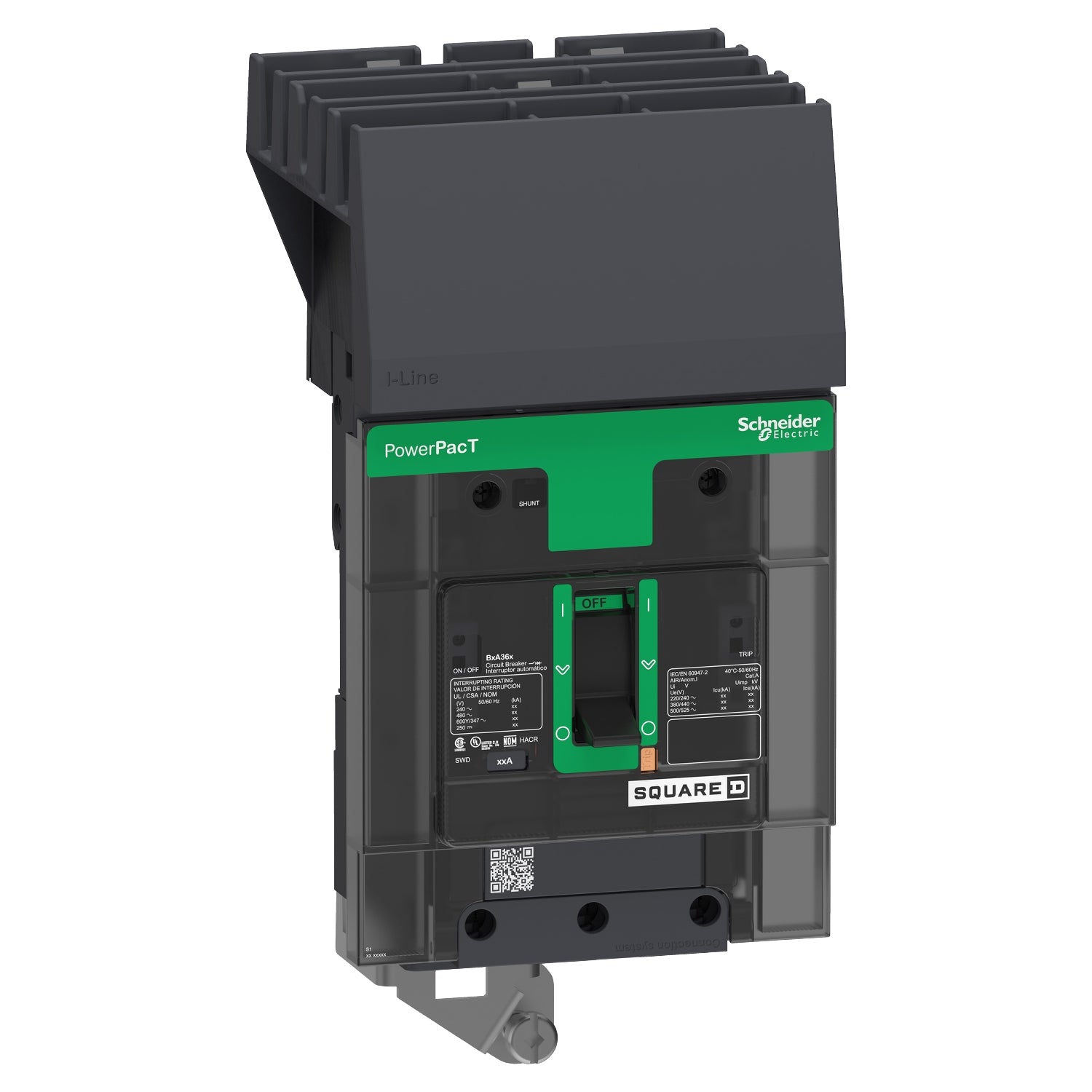

Product Description P/N: BJA36020
Description
The BJA36020 is a three-pole circuit breaker belonging to the PowerPacT B-Frame series, offering thermal-magnetic circuit protection with a rated current of 20A. Operating within a voltage range of 600Y/347VAC, it ensures effective protection against overcurrent situations with a breaking capacity of 25kA.
Engineered for compactness and versatility, PowerPacT B-Frame circuit breakers feature dual-break rotating contacts to minimize peak current during short circuit faults. Equipped with an integral push-to-trip button, they enable manual tripping for added convenience.
Technical Specifications
|
Part # |
BJA36020 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact B |
|
Device short name |
BJ 020 |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
20 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
J |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
800 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
Mechanical durability |
20000 cycles IEC 947-1 Annex K ed 5.2 |
|
Electrical durability |
10000 cycles IEC 947-1 Annex K ed 5.2 |
|
Connection pitch |
1.06 in (27 mm) |
|
AWG gauge |
AWG 14...AWG 2/0 aluminium/copper |
|
Local signalling |
Presence of auxiliary contacts flag green) |
|
Mounting mode |
I-Line |
|
Electrical connection |
I-Line connection, line |
|
|
Lugs, load |
|
Mounting Height |
4.49 in (114 mm) |
|
Power wire stripping length |
0.79 in (20 mm) |
|
Color |
Gray RAL 7016) |
|
9 mm pitches |
9 |
|
Height |
5.39 in (137 mm) |
|
Width |
3.19 in (81 mm) |
|
Depth |
3.50 in (89 mm) |
|
Net Weight |
2.90 lb(US) (1.315 kg) |
|
Quantity per Set |
Set of 1 |
|
Phase connection |
ABC |
|
Circuit breaker application |
HACR rated |
Information About BJA36020
The BJA36020 circuit breaker, part of the PowerPacT B-Frame series, delivers thermal-mechanical circuit protection within a compact design, offering a diverse array of accessories, auxiliaries, and connection options. This particular PowerPacT B-Frame circuit breaker furnishes thermal magnetic circuit protection with a substantial breaking capacity of 25kA at 600Y/347VAC.
Equipped with dual-break rotating contacts, all PowerPacT B-Frame circuit breakers mitigate peak current levels during short circuit faults effectively. Additionally, integral push-to-trip buttons integrated into the cover enable manual tripping of the circuit breaker when necessary.
Available in both 1 to 4-pole unit mount construction and 1 to 3-pole I-Line construction, PowerPacT B-Frame circuit breakers provide versatile deployment options. I-Line circuit breakers feature a shrouded I-Line plug on the jaw, with I-Line terminations on the line side and mechanical lugs on the load side.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
