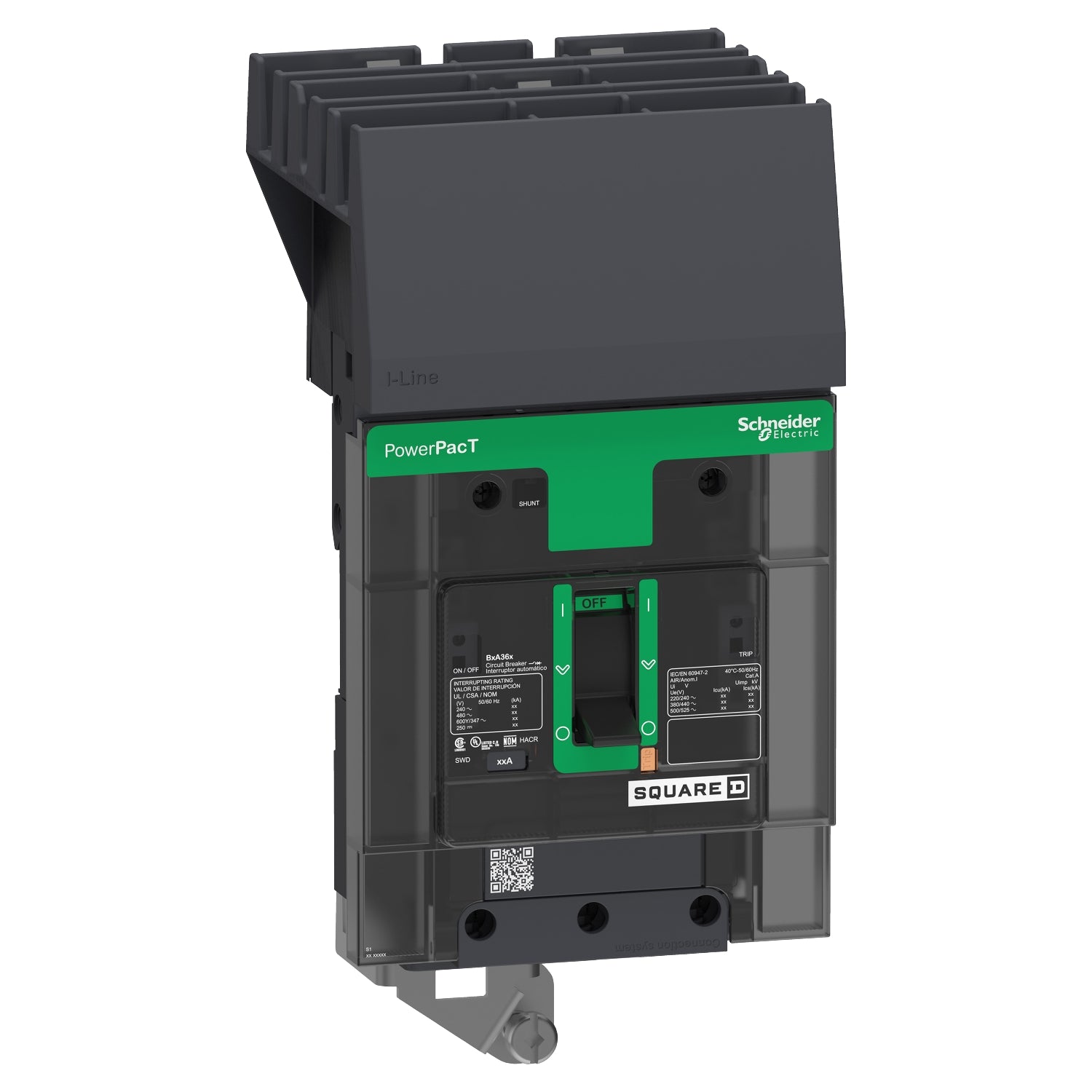

BJA36100 | Schneider Electric Circuit Breaker
- Regular price
- $1,149.00
- Sale price
- $1,149.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BJA36100
Description
The BJA36100 is a Square D molded case circuit breaker manufactured by Schneider Electric under the Powerpact series. It is a three-phase, three-pole breaker rated for operation at 600Y/347V AC with a current rating of 100 amps. The breaker has a high interrupting capacity of 65kA at 480V AC, ensuring robust protection for electrical systems.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | BJA36100 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | BJA |
| Voltage | 600 |
| Amperage | 100 |
| AIC Rating | 65kA@480V |
| Poles | 3 |
| Phase | 3 |
| Connection | I-Line Style Plug-In |
| Frame Type | B Frame |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
Information About BJA36100
The BJA36100 is a robust circuit breaker from Schneider Electric's Powerpact series, designed to provide reliable electrical protection in demanding industrial and commercial environments. This BJA type breaker operates at a voltage rating of 600V AC and supports a current rating of 100 amperes, making it suitable for three-phase systems.
Featuring a three-pole configuration, the BJA36100 ensures comprehensive protection across all phases of the electrical system. It utilizes an I-Line style plug-in connection type, facilitating secure and efficient installation in compatible panelboards and switchboards.
With an impressive interrupting capacity (AIC) of 65kA at 480V AC, the BJA36100 is capable of handling high fault currents, ensuring superior protection for critical infrastructure. The breaker integrates thermal magnetic protection, combining both long-time (thermal) and instantaneous (magnetic) responses to safeguard against overloads and short circuits. These protective functions are categorized under the LI function (Long-Time and Instantaneous).
Built with a B Frame, known for its durability and reliability, the BJA36100 is engineered to provide long-lasting performance in challenging environments. It is ideal for applications where dependable circuit protection is essential to maintain the safety and efficiency of electrical systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
