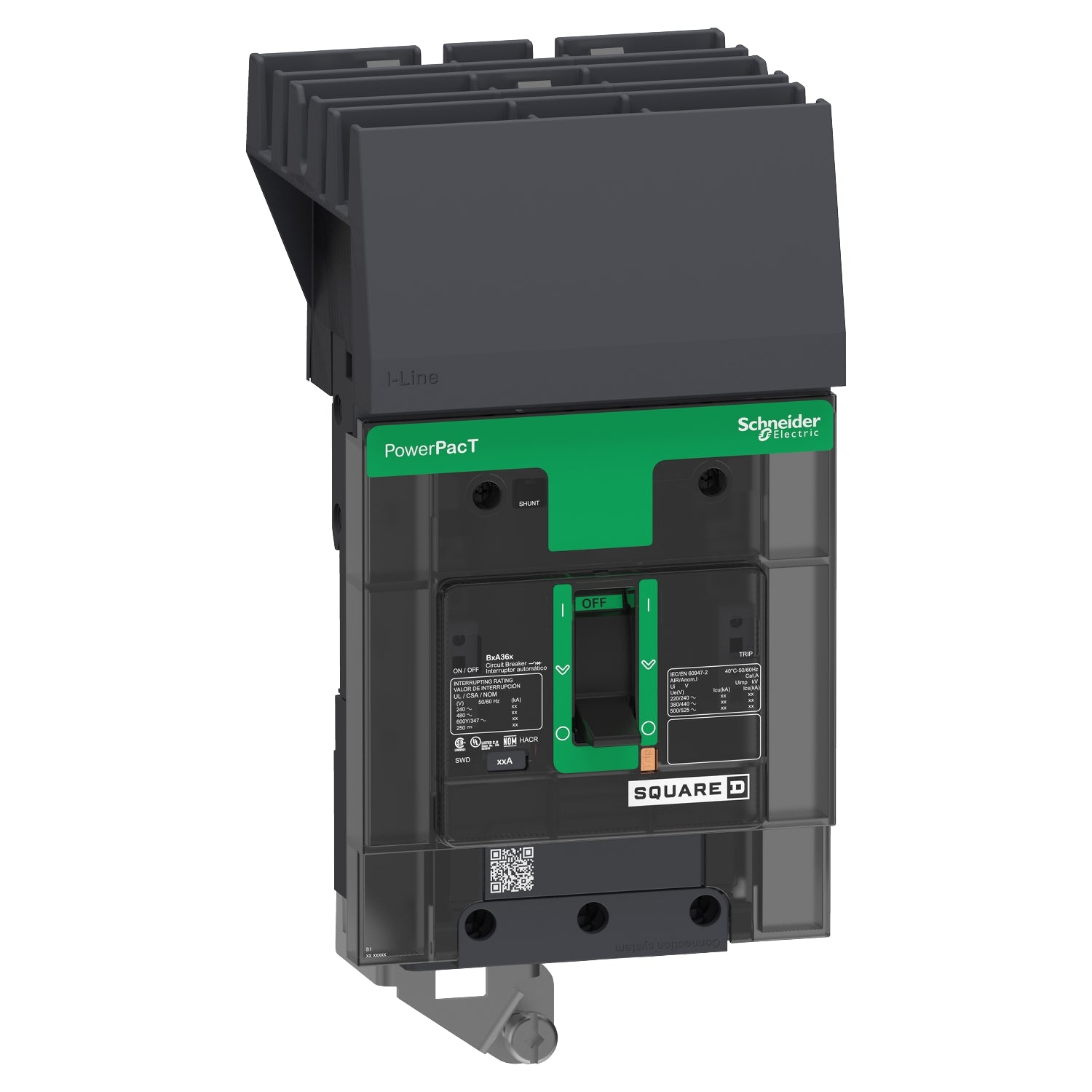

BJA36125 | Schneider Electric PowerPact 3-Pole 125A Thermal Magnetic Molded Case Circuit Breaker I-Line
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BJA36125
Description
The Schneider Electric BJA36125 is a three-pole molded case circuit breaker designed for protection of three-phase power distribution systems. It is rated at 125 amps and 600Y/347 VAC and provides thermal magnetic protection with long-time and instantaneous trip functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | BJA36125 |
| Subcategory | Molded Case Circuit Breaker |
| Family | PowerPact |
| Type | BJA |
| Frame Type | B Frame |
| Rated Voltage | 600Y/347 VAC |
| Rated Current | 125 A |
| Interrupt Rating | 65 kA at 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Number of Poles | 3 |
| Phase | Three-phase |
| Connection Type | I-Line Style Plug-In |
| Terminal Configuration | Load Side Mechanical Lugs |
Information About BJA36125
The BJA36125 is part of the Schneider Electric PowerPact BJA series, engineered for dependable low-voltage power distribution in industrial and commercial environments. It features a compact B-frame molded case design that supports mechanical durability and consistent electrical performance. The non-interchangeable thermal magnetic trip unit provides fixed long-time overload protection and instantaneous short-circuit response. This circuit breaker is commonly installed in I-Line panelboards and distribution equipment where high interrupting capacity and secure plug-in mounting are required.
Key Features
- Three-pole, three-phase configuration: Provides coordinated protection and simultaneous disconnection across all phases in three-phase electrical systems.
- 125 amp continuous current rating: Supports feeder and branch circuits with moderate to high load requirements.
- Thermal magnetic protection system: Combines a thermal element for long-time overload protection with a magnetic element for instantaneous short-circuit interruption.
- Long-time and instantaneous trip functions: Ensures reliable response to sustained overcurrent conditions and sudden high-level faults.
- High interrupting capacity: Rated at 65 kA at 480 V to safely interrupt severe fault currents in industrial power systems.
- I-Line style plug-in connection: Enables fast, secure installation into compatible Schneider Electric I-Line panelboards.
- Non-interchangeable trip unit: Maintains fixed protection characteristics to support system coordination and compliance.
- Load side mechanical lug terminals: Allow direct conductor termination for straightforward and secure field wiring.
The BJA36125 delivers the reliability and precision required for protecting three-phase electrical distribution circuits in demanding industrial and commercial power applications.
