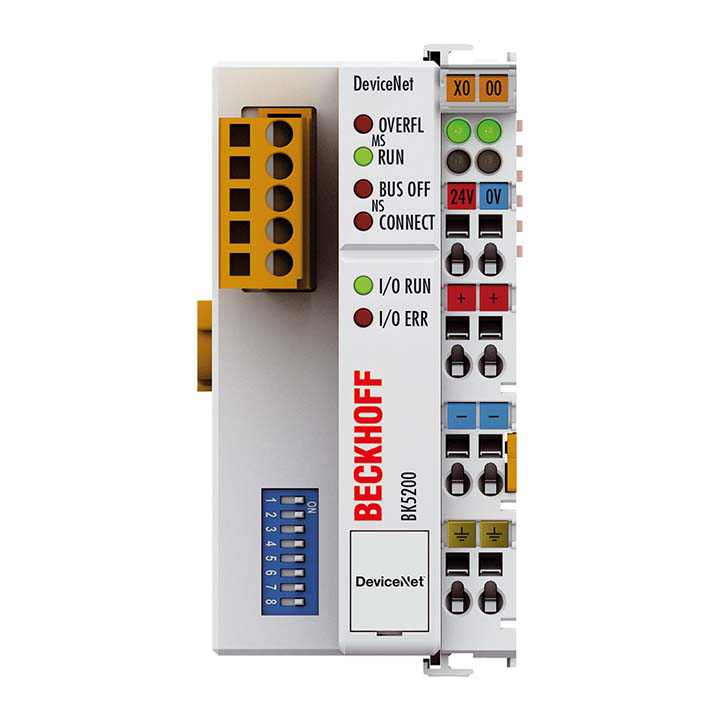

BK5200 | Beckhoff DeviceNetยฎ Bus Coupler 24 V DC 512 I/O 125 kBaud
- Regular price
- $344.00
- Sale price
- $344.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BK5200
Descriptionย
The Beckhoff BK5200 is a DeviceNetยฎ Bus Coupler that connects the DeviceNetยฎ fieldbus system to Beckhoff modular Bus Terminals. It supports up to 64 terminals with 512 digital inputs/outputs and operates at data transfer rates selectable up to 125 kBaud, ensuring reliable communication for industrial automation networks.
ย
ย
Technical Specificationsย
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | BK5200 |
| Subcategory | Bus Coupler |
| Protocol | DeviceNetยฎ (based on CAN protocol) |
| Number of Bus Terminals | Up to 64 |
| Digital Peripheral Signals | 512 inputs/outputs |
| Analog Peripheral Signals | 256 inputs/outputs |
| Max. Data Fieldbus Size | 512 bytes input, 512 bytes output |
| Data Transfer Rate | Up to 125 kBaud (selectable via DIP switch) |
| Bus Interface | 1 ร open pluggable 5-pin connector (included) |
| Data Medium | Screened twisted-pair copper wire with power supply (5-pin) |
| Power Supply | 24 V DC (-15% / +20%), through bus cable 11โ25 V |
| Input Current | 70 mA + (total K-bus current)/4, max. 500 mA |
| Starting Current | Approx. 2.5 ร continuous current |
| Recommended Fuse | โค 10 A |
| K-bus Current Supply | 1750 mA |
| Power Contacts | Max. 24 V DC / 10 A |
| Electrical Isolation | 500 V (power contact/supply voltage/Bus Coupler) |
| Configuration | Via KS2000 software or controller |
| Operating Modes | Bit strobe, polling, cyclic, change of state (COS) |
| Operating Temperature | 0ยฐC to +55ยฐC |
| Storage Temperature | -25ยฐC to +85ยฐC |
| Relative Humidity | 95%, non-condensing |
| Dimensions | Standard Beckhoff terminal housing |
| Weight | Approx. 150 g |
| Protection Class | IP20 |
ย
Information About BK5200
The BK5200 is part of Beckhoffโs Bus Coupler family, designed to integrate the DeviceNetยฎ communication standard into modular Beckhoff I/O systems. It connects up to 64 Bus Terminals, offering a flexible and scalable platform for digital and analog signal processing in industrial automation. Operating on the CAN-based DeviceNetยฎ protocol, it enables communication between sensors, actuators, and controllers in a unified network. The coupler can be configured using Beckhoffโs KS2000 software or via standard DeviceNetยฎ configuration tools through available EDS files. With robust electrical isolation, wide power tolerance, and support for multiple communication modes, the BK5200 ensures stable and efficient data transfer in distributed control systems.
Key Features:
- DeviceNetยฎ Integration: Connects Beckhoff modular terminals directly to DeviceNetยฎ fieldbus networks for distributed I/O control.
- High Signal Capacity: Supports up to 64 Bus Terminals and manages 512 digital or 256 analog I/O signals for extensive system scalability.
- Flexible Communication: Operates in bit strobe, polling, cyclic, or change-of-state modes to match various application needs.
- Configurable via KS2000: Easily parameterized using Beckhoffโs KS2000 software or through DeviceNetยฎ EDS files for seamless setup.
- Robust Electrical Isolation: 500 V isolation between power, supply voltage, and bus coupler ensures reliable signal integrity.
- Stable Power Design: Operates from 24 V DC with integrated K-bus power supply up to 1750 mA, supporting large I/O configurations.
- Industrial-Grade Construction: Conforms to DeviceNetยฎ specifications and provides long-term durability in industrial environments.
- Comprehensive Diagnostics: Integrated LED indicators and configuration feedback simplify commissioning and troubleshooting.
The BK5200 delivers the reliability and precision required for efficient communication between DeviceNetยฎ fieldbus networks and Beckhoff I/O terminals in advanced automation systems.
