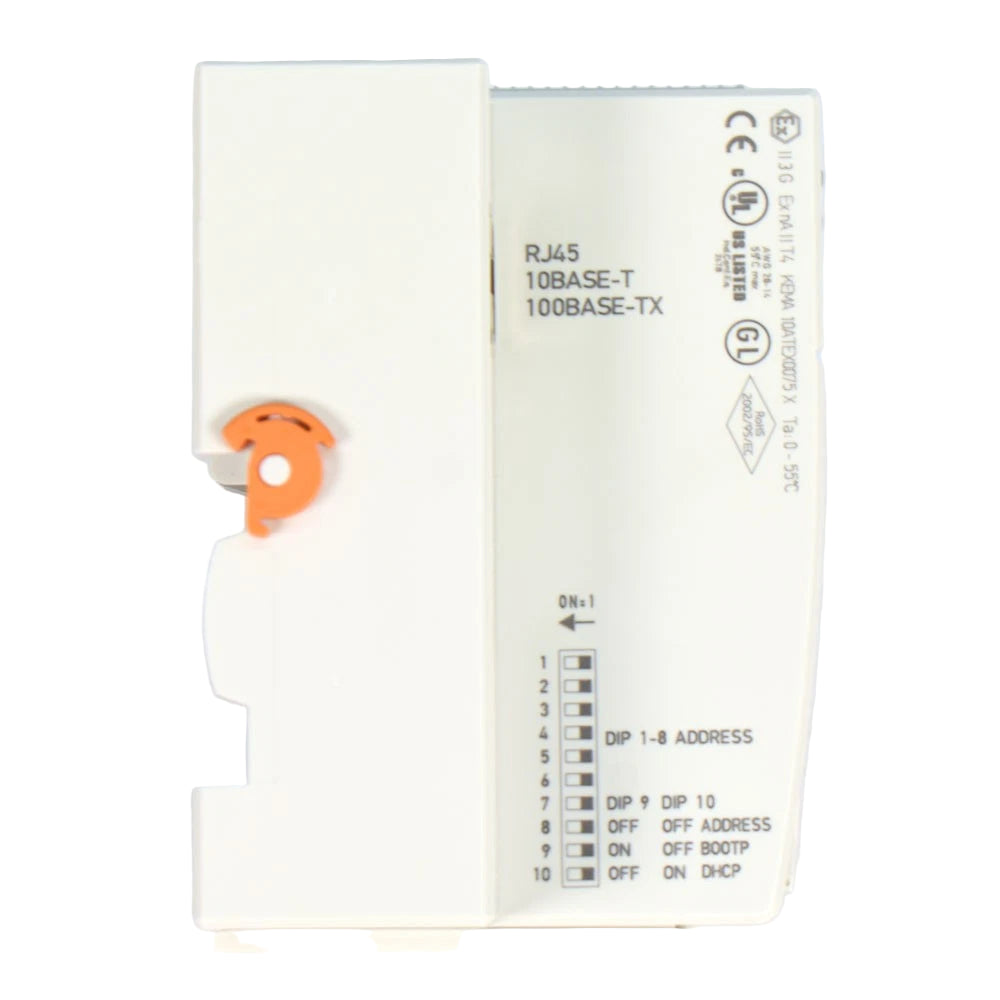

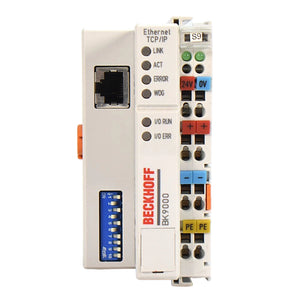

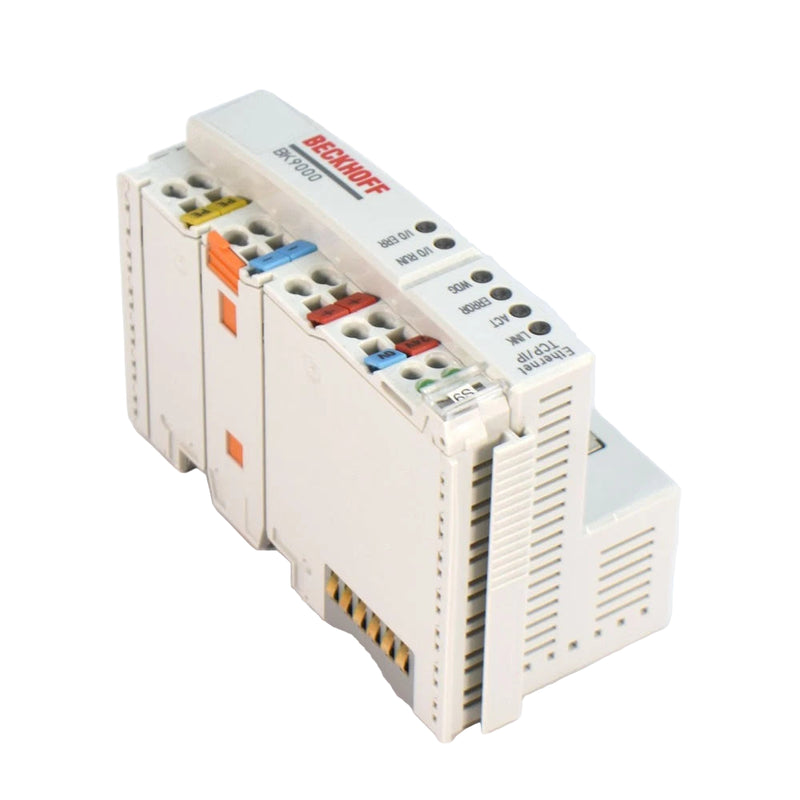

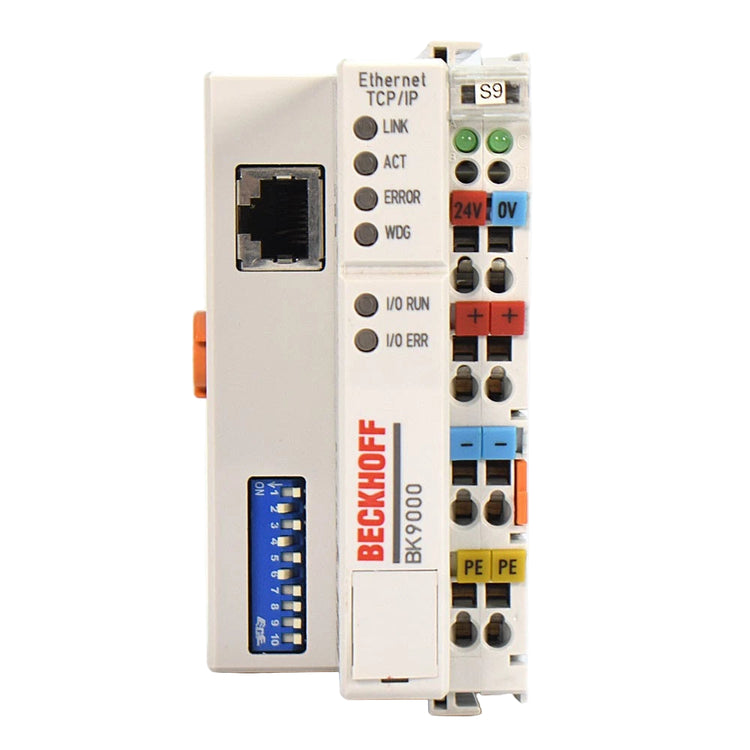

BK9000 | Beckhoff Ethernet TCP/IP Bus Coupler
- Regular price
- $486.00
- Sale price
- $486.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BK9000
Description
The Beckhoff BK9000 is an Ethernet TCP/IP Bus Coupler designed for integrating up to 64 Bus Terminals into industrial Ethernet networks. Supporting multiple protocols, it offers flexible communication and reliable system performance for both digital and analog signals.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Bus Couplers |
| Part Number | BK9000 |
| Subcategory | Ethernet TCP/IP Bus Couplers |
| Number of Bus Terminals | 64 |
| Max. Fieldbus Bytes | 512 input / 512 output |
| Digital Peripheral Signals | 512 inputs/outputs |
| Analog Peripheral Signals | 128 inputs/outputs |
| Protocols | TwinCAT ADS, Modbus TCP, Beckhoff real-time Ethernet |
| Data Transfer Rate | 10/100 Mbit/s, auto recognition |
| Bus Interface | 1 x RJ45 |
| Transmission Medium | Twisted pair copper cable (Cat 3 for 10 Mbit/s, Cat 5 for 100 Mbit/s) |
| Power Supply | 24 V DC (-15%/+20%) |
| Input Current | 70 mA + (total K-bus current)/4, max. 500 mA |
| Starting Current | 2.5 × continuous current |
| Recommended Fuse | ≤ 10 A |
| Current Supply K-bus | 1750 mA |
| Power Contacts | Max. 24 V DC / Max. 10 A |
| Electrical Isolation | 500 V (power contact/supply voltage/fieldbus) |
| Topology | Star wiring |
| Distance Between Stations | 100 m (hub/switch to bus coupler) |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Weight | 170 g (approx. 0.37 lbs) |
Information About BK9000
The BK9000 is part of Beckhoff’s family of bus couplers and is engineered for Ethernet-based control environments. It supports protocols such as TwinCAT ADS, Modbus TCP, and Beckhoff real-time Ethernet, ensuring compatibility across a wide range of applications. With support for up to 512 digital and 128 analog peripheral signals, and configuration through KS2000 software, the coupler simplifies system integration while offering powerful functionality. Its compact design, electrical isolation, and robust performance across a wide temperature range make it an excellent solution for modern automation systems.
Key Features:
-
Versatile Protocol Support: Compatible with TwinCAT ADS, Modbus TCP, and Beckhoff real-time Ethernet, ensuring seamless integration into diverse network environments.
-
High Signal Capacity: Supports up to 512 digital and 128 analog peripheral signals, providing ample capacity for large-scale automation setups.
-
Extensive Terminal Support: Accommodates up to 64 Bus Terminals, making it highly flexible and scalable for modular I/O expansion.
-
Fast Data Transmission: Operates with Ethernet data transfer rates of 10/100 Mbit/s, with automatic recognition of the transmission rate for optimal performance.
-
Robust Electrical Isolation: Ensures 500 V separation between power contacts, supply voltage, and fieldbus, enhancing operational safety and reliability.
-
Compact and Lightweight Design: Weighing just 170 g, it fits easily into control cabinets while maintaining high functionality.
-
Long-Distance Communication: Supports distances up to 100 m between hub/switch and bus coupler, providing installation flexibility in distributed systems.
-
Efficient Power Management: Powered by 24 V DC with 1750 mA current supply to the K-bus, supporting stable operation of connected terminals.
-
Environmentally Robust: Designed to operate within -25…+60°C and withstand up to 95% humidity without condensation, suitable for demanding industrial environments.
-
Simple Configuration: Easily configured via KS2000 software, streamlining commissioning and system setup.
The BK9000 delivers the reliability and scalability required for Ethernet-based automation, making it a dependable choice for integrating modular I/O into industrial networks.
