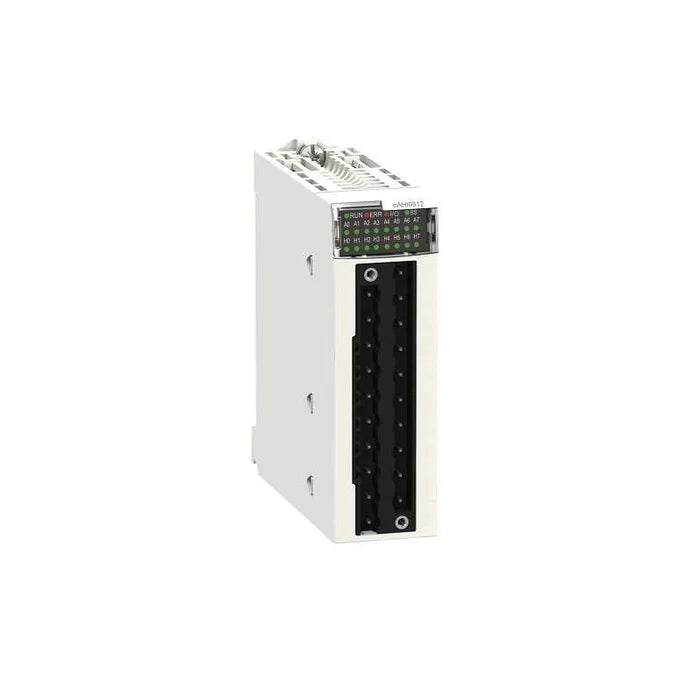

Product Description P/N: BMEAHI0812
Description
The Schneider Electric BMEAHI0812 is an analog input module designed for use with Modicon M580 PAC systems. It provides 8 high-resolution analog input channels for monitoring process variables.
Technical Specifications
|
Brand |
Schneider Electric |
|
Range of Product |
Modicon X80 |
|
Product or Component Type |
Analog input module |
|
Application Specific I/O |
HART |
|
Product Compatibility |
ABE7CPA02 |
|
Electrical Connection |
20 ways terminal block |
|
Isolation Between Channels |
Isolated |
|
Analogue Input Number |
8 |
|
Analogue Input Type |
Current 4...20 mA |
|
Analogue Input Resolution |
15 bits + sign |
|
Input Impedance |
250 Ohm internally protective resistor (3.6 to 50 Ohm) |
|
Measurement Error |
0.15% of full scale at 25 °C; ≤ 0.3% of full scale 0...60 °C |
|
Temperature Drift |
50 ppm/°C |
|
Isolation Voltage |
1000 V DC for 60 s between channels |
|
Checks |
Broken wire detection |
|
Topology |
Point-to-point |
|
Function Available |
I/O mapping |
|
Net Weight |
0.233 kg |
|
Ambient Air Temperature for Operation |
0…60 °C |
Information About BMEAHI0812
The BMEAHI0812 is part of the Modicon X80 I/O module family, developed to deliver flexible and high-performance I/O integration for Modicon M580 programmable automation controllers. It supports 8 differential analog input channels configurable for current (0/4–20 mA) and voltage (±10 V, 0–10 V) signals, allowing direct connection of sensors and transmitters. With 16-bit resolution, the module ensures accurate and stable signal acquisition. Integrated channel diagnostics detect open circuits, out-of-range signals, and module faults, improving system reliability and reducing downtime. It connects to the M580 backplane for fast data exchange and is configured through EcoStruxure Control Expert (Unity Pro) software. Its rugged design and hot-swappable capability support continuous operation in demanding environments.
Key Features:
- Design: 8-channel analog input module for Modicon M580 PAC systems.
- Signal Types: Supports current (0/4–20 mA) and voltage (±10 V, 0–10 V) inputs.
- Resolution: 16-bit for high-precision measurements.
- Diagnostics: Detects open circuit, over/under-range, and channel faults.
- Integration: Compatible with Modicon M580 and X80 backplane architecture.
- Configuration: Set up using EcoStruxure Control Expert (Unity Pro).
- Installation: Hot-swappable module design for easy maintenance.
- Application Range: Suitable for process industries, energy systems, and machine automation.
The BMEAHI0812 delivers the accuracy, flexibility, and reliability required for advanced analog signal monitoring in Modicon M580 automation systems.
