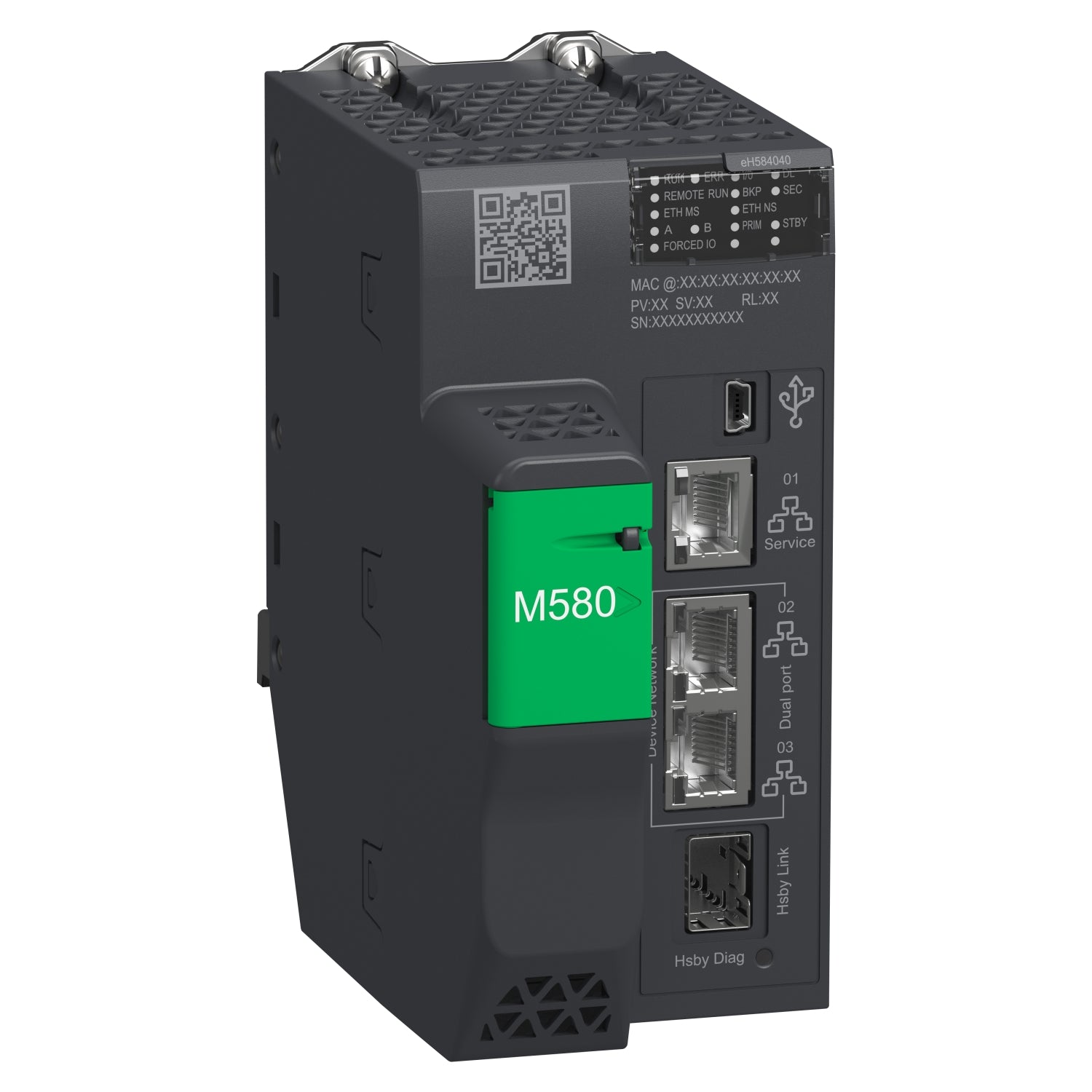

BMEH584040 | Schneider Electric Redundant Processor, Modicon M580, 16MB, 61 Ethernet Devices, 16 Remote IO Racks
- Regular price
- $3,559.00
- Sale price
- $3,559.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BMEH584040
Description
The Schneider Electric BMEH584040 is a redundant Level-4 processor module for the Modicon M580 platform, designed for high-availability automation systems. It provides 16 MB of program memory and supports extensive Ethernet and Modbus TCP communication for distributed devices and remote I/O. Built for demanding process environments, it integrates into rack-mounted architectures with IP20 protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Controls & Indicators |
| Part Number | BMEH584040 |
| Subcategory | CPU/Control Board |
| Meter Display Type | LED |
| IP / NEMA Rating | IP20 |
| Product Range | Modicon M580 |
| Current (24 V DC) | 295 mA |
| Program RAM | 16 MB |
| Data Memory | 2 MB |
| System Memory | 10 KB |
| Flash Storage | 4 GB |
| Supported Ethernet Devices | Up to 61 |
| Supported Remote I/O Racks | Up to 16 (X80 and Quantum) |
| Discrete I/O Capacity | 16,384 channels |
| Analog I/O Capacity | 4,096 channels |
| Communication Protocols | Ethernet, Modbus TCP |
| Ports | Service Ethernet, Dual Ethernet (device), HSBY Ethernet, USB Mini-B |
| Mounting Mode | Backplane / rack mounting |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| MTBF | 600,000 hours |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Weight | 0.849 kg |
Information About BMEH584040
The BMEH584040 is part of the Modicon M580 PAC family, a range known for its Ethernet-centric architecture and robust redundancy features. It is designed with a modular rack-mounted layout that includes multiple Ethernet interfaces and USB connectivity to support flexible integration. This processor is compatible with large local and remote I/O configurations, enabling seamless expansion across X80 and Quantum platforms. It is typically deployed in medium to large process applications requiring high availability, hot-standby redundancy, and reliable communication with distributed control assets.
Key Features:
- Redundant hot-standby processor: Supports HSBY operation for continuous system availability.
- Extensive memory capacity: Equipped with 16 MB program RAM and expandable flash storage.
- High I/O scalability: Manages up to 16 remote I/O racks and large discrete/analog channel counts.
- Multi-port Ethernet design: Includes service, device, and HSBY Ethernet connections.
- Industrial-grade construction: IP20 rated with robust compliance to global standards.
- Wide communication support: Compatible with Ethernet/IP and Modbus TCP for distributed devices.
- Rack-mounted architecture: Integrates into Modicon backplane systems for streamlined installation.
- Designed for process industries: Optimized for reliability in complex automation environments.
The BMEH584040 delivers the reliability and precision required for high-availability process automation and redundant control systems.
