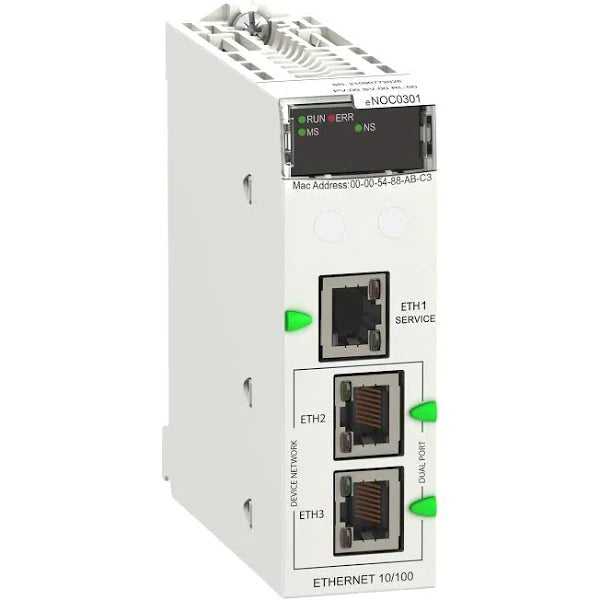

BMENOC0301 | Schneider Electric 3-Port Ethernet Communication Module for Modicon M580
- Regular price
- $832.00
- Sale price
- $832.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BMENOC0301
Description
The Schneider Electric BMENOC0301 is a 3-port Ethernet communication module designed for the Modicon M580 automation platform. This module provides industrial Ethernet connectivity for PAC and PLC systems, supporting protocols such as Modbus TCP and EtherNet/IP. With integrated network management features and embedded switch functionality, the BMENOC0301 ensures reliable communication within medium to large automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs/Machine Control |
| Part Number | BMENOC0301 |
| Subcategory | PLC Module/Rack Communication |
| Series | Modicon X80 |
| Ports | 3 Ethernet RJ45 |
| Transmission Rate | 10/100 Mbps |
| Protocols Supported | Modbus TCP, EtherNet/IP |
| Communication Services | Bandwidth management, FDR server, SNMP, RSTP, port mirroring |
| Ethernet Standard | 10BASE-T / 100BASE-TX |
| Transmission Medium | Shielded twisted pair |
| Power Supply | Internal via rack |
| Current Consumption | 900 mA @ 3.3 VDC (≥V13), 1800 mA @ 3.3 VDC (<V13) |
| Module Format | Standard |
| IP Rating | IP20 |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Net Weight | 0.2 kg |
| Compliance | CE, EN 61131-2, EN 61000-6-2, EN 61000-6-4 |
Information About BMENOC0301
The BMENOC0301 is part of the Modicon X80 series for the Modicon M580 family, offering modular communication capabilities within high-performance PAC architectures. Built with three RJ45 Ethernet ports in a standard-format module, it integrates an embedded multiport switch and supports redundant ring topologies through RSTP. The module is fully compatible with M580 backplanes and network services such as Modbus TCP I/O scanning, EtherNet/IP messaging, SNMP administration, and bandwidth management. It is commonly used in process automation, large plant systems, and network-intensive control environments requiring robust and deterministic communication.
Key Features:
- Three RJ45 Ethernet ports: Supports 10/100 Mbps communication for industrial networks.
- Integrated multiport switch: Enables network segmentation and efficient traffic handling.
- Modbus TCP and EtherNet/IP support: Provides both I/O scanning and messaging capabilities.
- RSTP redundancy: Ensures network continuity in ring-based topologies.
- SNMP network administration: Allows advanced monitoring and diagnostic management.
- Backplane Ethernet interface: Enables high-speed communication with M580 CPU modules.
- Rack-powered module: Draws power from the internal rack supply for simplified installation.
- Standards-compliant design: Meets EN 61131-2, EN 61000-6-4, and EN 61010-2-201 requirements.
The BMENOC0301 delivers the reliability and precision required for modern industrial networking and high-performance automation systems.
