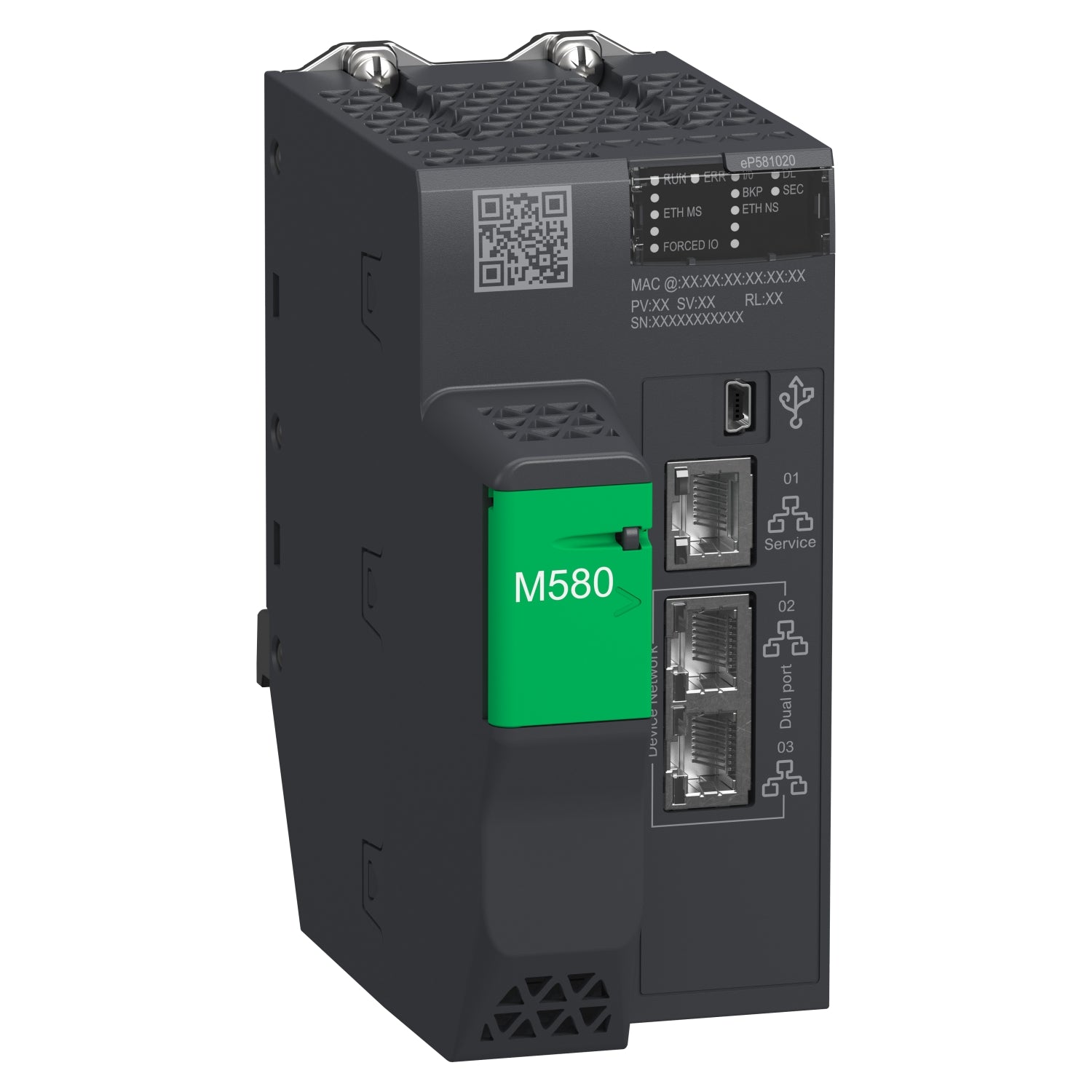

Part #: BMEP581020 Manufactured by: Schneider Electric
Regular price
$1,299.00
Sale price
$1,299.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The BMEP581020 is a standalone processor from the Modicon M580 series, designed for Programmable Automation Controllers (P...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: BMEP581020
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: BMEP581020

Description / Specifications

Description

The BMEP581020 is a standalone processor module belonging to the Modicon M580 range, designed as part of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with integrated Ethernet capabilities. Offering a maximum of 4 rack configuration, it accommodates 36 application-specific channels.

This processor module operates with a current consumption of 270mA at 24V DC and supports 1024 discrete and 256 analog local I/O channels, along with 64 distributed equipment. Equipped with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port, and USB type mini B for integrated connections, it ensures robust connectivity.

Featuring an integrated RAM of 4MB for program, 384kb for data, and 10kb for system memory, the BMEP581020 offers expandable flash storage of 4GB for data storage. Rated IP20, it weighs 0.849kg, suitable for medium to large process applications.




Technical Specifications



Part #

BMEP581020

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Controls & Indicators

Subcategory

CPU/Control Board

Number of racks

4

Local I/O processor capacity (discrete)

1024 I/O

Local I/O processor capacity (analog)

256 I/O

Number of application specific channel (local rack)

36 Checks

Process control

Control channels, Programmable loops

Number of distributed equipment

64

Communication module processor capacity

2 Ethernet communication module, 8 AS-Interface module

Communication Service

DIO scanner

Number of instructions per ms

7.5 Kinst/ms 65% Boolean + 35% fixed arithmetic, 10 Kinst/ms 100% Boolean

Current consumption

270 mA 24 V DC

MTBF reliability

775000 H

Marking

CE

Vibration resistance

3 gn

Shock resistance

30 gn

Ambient Air Temperature for Operation

32…140 °F (0…60 °C)

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Operating altitude

0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor

Relative humidity

5…95% 131 °F (55 °C) without condensation

IP Degree of Protection

IP20

Environmental characteristic

Hazardous location class I division 2

Supply

Internal power supply via rack

Net Weight

1.87 lb(US) (0.849 kg)



Information About BMEP581020

The BMEP581020 is a standalone processor belonging to the Modicon M580 series, designed to offer Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with integrated Ethernet capabilities. It supports a maximum configuration of 4 racks and accommodates up to 36 application-specific channels.

With a current consumption of 270mA at 24V DC, the processor module provides extensive support for I/O channels, including 1024 discrete and 256 analog local I/O channels, along with compatibility for 64 distributed equipment devices. Connectivity options include Ethernet TCP/IP for service port, 2 Ethernet TCP/IP ports for device network, Ethernet for HSBY port, and USB type mini B for integrated connections.

Featuring a Mean Time Between Failures (MTBF) of 600,000 hours, the BMEP581020 incorporates 4MB of integrated RAM for program storage, 384kb for data storage, 10kb for system memory, and expandable flash memory of up to 4GB for data storage purposes. It holds an IP20 rating, weighs 0.849kg, and suits medium to large process applications.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The BMEP581020 is a standalone processor module belonging to the Modicon M580 range, designed as part of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with integrated Ethernet capabilities. Offering a maximum of 4 rack configuration, it accommodates 36 application-specific channels.

This processor module operates with a current consumption of 270mA at 24V DC and supports 1024 discrete and 256 analog local I/O channels, along with 64 distributed equipment. Equipped with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port, and USB type mini B for integrated connections, it ensures robust connectivity.

Featuring an integrated RAM of 4MB for program, 384kb for data, and 10kb for system memory, the BMEP581020 offers expandable flash storage of 4GB for data storage. Rated IP20, it weighs 0.849kg, suitable for medium to large process applications.




Technical Specifications



Part #

BMEP581020

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Controls & Indicators

Subcategory

CPU/Control Board

Number of racks

4

Local I/O processor capacity (discrete)

1024 I/O

Local I/O processor capacity (analog)

256 I/O

Number of application specific channel (local rack)

36 Checks

Process control

Control channels, Programmable loops

Number of distributed equipment

64

Communication module processor capacity

2 Ethernet communication module, 8 AS-Interface module

Communication Service

DIO scanner

Number of instructions per ms

7.5 Kinst/ms 65% Boolean + 35% fixed arithmetic, 10 Kinst/ms 100% Boolean

Current consumption

270 mA 24 V DC

MTBF reliability

775000 H

Marking

CE

Vibration resistance

3 gn

Shock resistance

30 gn

Ambient Air Temperature for Operation

32…140 °F (0…60 °C)

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Operating altitude

0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor

Relative humidity

5…95% 131 °F (55 °C) without condensation

IP Degree of Protection

IP20

Environmental characteristic

Hazardous location class I division 2

Supply

Internal power supply via rack

Net Weight

1.87 lb(US) (0.849 kg)



Information About BMEP581020

The BMEP581020 is a standalone processor belonging to the Modicon M580 series, designed to offer Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with integrated Ethernet capabilities. It supports a maximum configuration of 4 racks and accommodates up to 36 application-specific channels.

With a current consumption of 270mA at 24V DC, the processor module provides extensive support for I/O channels, including 1024 discrete and 256 analog local I/O channels, along with compatibility for 64 distributed equipment devices. Connectivity options include Ethernet TCP/IP for service port, 2 Ethernet TCP/IP ports for device network, Ethernet for HSBY port, and USB type mini B for integrated connections.

Featuring a Mean Time Between Failures (MTBF) of 600,000 hours, the BMEP581020 incorporates 4MB of integrated RAM for program storage, 384kb for data storage, 10kb for system memory, and expandable flash memory of up to 4GB for data storage purposes. It holds an IP20 rating, weighs 0.849kg, and suits medium to large process applications.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
