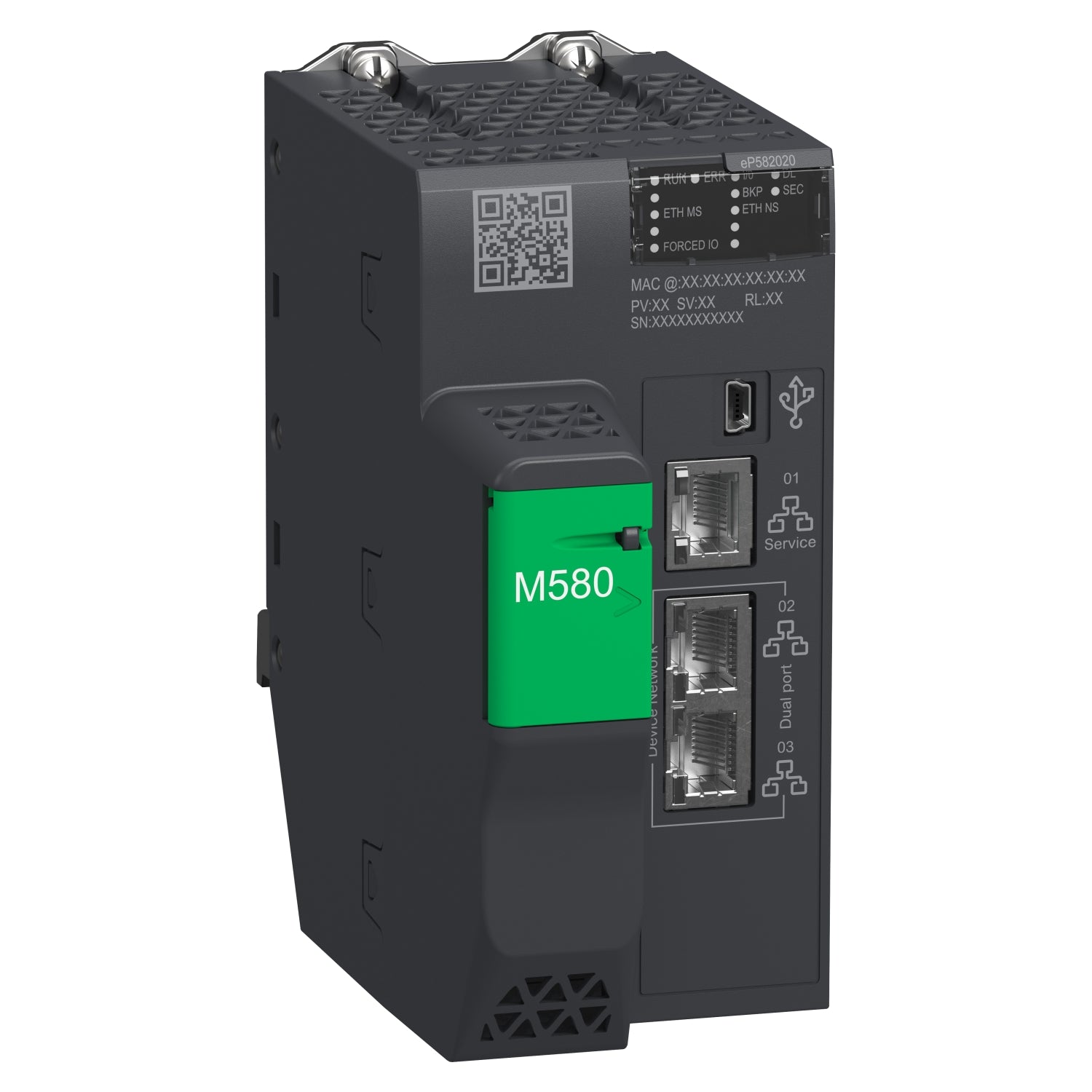

BMEP582020 | Schneider Electric Standalone processor
- Regular price
- $1,469.00
- Sale price
- $1,469.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BMEP582020
Description
The BMEP582020 is a standalone processor module within the Modicon M580 range, comprising Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet connectivity. It supports a maximum configuration of 4 racks and accommodates up to 72 application-specific channels.
Operating with a current consumption of 270mA at 24V DC, this processor module facilitates 2048 discrete and 512 analog local I/O channels, along with 128 distributed equipment connections. It features Ethernet TCP/IP for service port, two Ethernet TCP/IP ports for device network, Ethernet for HSBY port, and USB type mini B for integrated connections.
Technical Specifications
|
Part # |
BMEP582020 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
MODICON |
|
Category |
Controls & Indicators |
|
Subcategory |
CPU/Control Board |
|
Number of racks |
4 |
|
Local I/O processor capacity (discrete) |
2048 I/O |
|
Local I/O processor capacity (analog) |
512 I/O |
|
Number of application specific channels (local rack) |
72 |
|
Number of distributed equipment |
128 |
|
Communication module processor capacity |
2 Ethernet communication module |
|
Communication Service |
DIO scanner |
|
Current consumption |
270 mA 24 V DC |
|
MTBF reliability |
775000 H |
|
Marking |
CE |
|
Vibration resistance |
3 gn |
|
Shock resistance |
30 gn |
|
Ambient Air Temperature for Operation |
32…140 °F (0…60 °C) |
|
Ambient Air Temperature for Storage |
-40…185 °F (-40…85 °C) |
|
Environmental characteristic |
Hazardous location class I division 2 |
|
Supply |
Internal power supply via rack |
Information About BMEP582020
The BMEP582020 is a standalone processor module belonging to the Modicon M580 range, which encompasses Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) equipped with built-in Ethernet connectivity. Configurable with up to 4 racks, this processor module supports a maximum of 72 application-specific channels.
Operating with a current consumption of 270mA at 24V DC, the BMEP582020 facilitates 2048 discrete and 512 analog local I/O channels, in addition to accommodating 128 distributed equipment connections. It features Ethernet TCP/IP connectivity for the service port, along with 2 Ethernet TCP/IP ports for device networking. Additionally, it incorporates Ethernet for HSBY (Hot Standby) port and USB type mini B for integrated connections.
Boasting a mean time between failures (MTBF) of 600,000 hours, this module offers robust reliability for medium to large process applications. It includes integrated RAM comprising 8MB for program, 768kb for data, and 10kb for system, alongside an expandable flash storage capacity of 4GB for data storage purposes.
Rated with an IP20 ingress protection rating and weighing 0.849kg, the BMEP582020 conforms to certifications from CE, Merchant Navy, UL, RCM, CSA, and EAC, and adheres to standards such as EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
