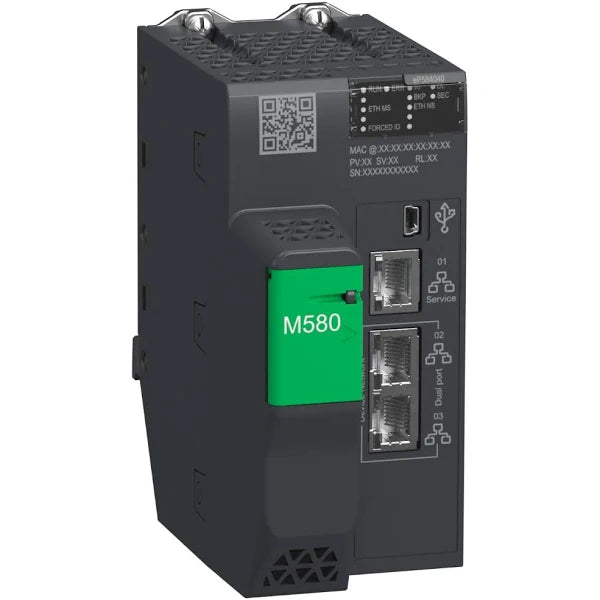

BMEP584040 | Schneider Electric Modicon M580 Standalone Processor with Integrated Ethernet PAC Architecture
- Regular price
- $4,715.00
- Sale price
- $4,715.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BMEP584040
Description
The Schneider Electric Modicon BMEP584040 is a standalone processor module engineered for the Modicon M580 PAC platform. Designed for medium to large automation architectures, it delivers high-performance processing, extensive communication options, and robust I/O scalability for advanced industrial control systems.
Technical Specifications
| Part Number | BMEP584040 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Category | Controls & Indicators |
| Subcategory | CPU / Control Board |
| Number of Racks | 8 |
| Local I/O Capacity (Discrete) | 4096 I/O |
| Local I/O Capacity (Analog) | 1024 I/O |
| Application-Specific Channels | 144 |
| Application-Specific I/O | Counter, SSI encoder, Motion control, Time stamping, HART, Serial link, Process control, Programmable loops |
| Remote I/O Stations | 16 (2 racks per drop) |
| Distributed Equipment | 64 |
| Communication Module Capacity | 8 AS-Interface modules, 4 Ethernet modules |
| Communication Services | RIO scanner, DIO scanner |
| Current Consumption | 295 mA at 24 VDC |
| MTBF Reliability | 775,000 hours |
| Marking | CE |
| Vibration Resistance | 3 gn |
| Relative Humidity | 5–95% at 55°C, non-condensing |
| IP Rating | IP20 |
| Communication Ports | Ethernet TCP/IP (service), 2× Ethernet TCP/IP (device network), Ethernet (HSBY), USB Mini-B |
| Memory (Program) | 16 MB RAM |
| Memory (Data) | 2048 KB |
| System Memory | 10 KB |
| Flash Storage | 4 GB expandable |
| Weight | 0.849 kg |
Information About BMEP584040
The BMEP584040 is part of the Modicon M580 series, recognized as the first ePAC line with native Ethernet capabilities integrated directly into the processor. It supports extensive configurations with up to 8 racks, 144 application-specific channels, and large local I/O capacities for both discrete and analog signals. The unit includes embedded service Ethernet, dual device network Ethernet, HSBY redundancy Ethernet, and a USB Mini-B service port, ensuring wide interoperability and reliable communication. Designed for demanding industrial environments, it delivers long-term reliability with a 295 mA consumption at 24 VDC and an MTBF rating of 775,000 hours.
Key Features:
- Large I/O Capacity: supports up to 4096 discrete and 1024 analog local I/O points for high-channel-count automation systems.
- Advanced Application Channels: provides 144 specialized channels supporting counter modules, motion control, HART, serial links, time stamping, and programmable loops.
- Expanded Communication Architecture: integrates Ethernet TCP/IP service port, dual device network Ethernet, HSBY redundancy Ethernet, and USB Mini-B connectivity.
- Scalable Multi-Rack Support: accommodates up to 8 racks with 16 remote I/O stations, enabling large and distributed system designs.
- Built-In Reliability: features a 775,000-hour MTBF, reinforced vibration resistance to 3 gn, and compliance with global industrial standards.
- Memory Resources: includes 16 MB program RAM, 2048 KB data memory, 10 KB system memory, and 4 GB expandable flash storage for application retention.
- Environmental Durability: offers IP20 protection, 5–95% humidity tolerance, and robust performance across industrial plant conditions.
- Communication Module Capacity: supports 8 AS-Interface modules and 4 Ethernet communication modules for extensive network expansion.
The BMEP584040 delivers the reliability and precision required for advanced Modicon M580 PAC automation architectures.
