Product Description P/N: BMEXBP1200
Description

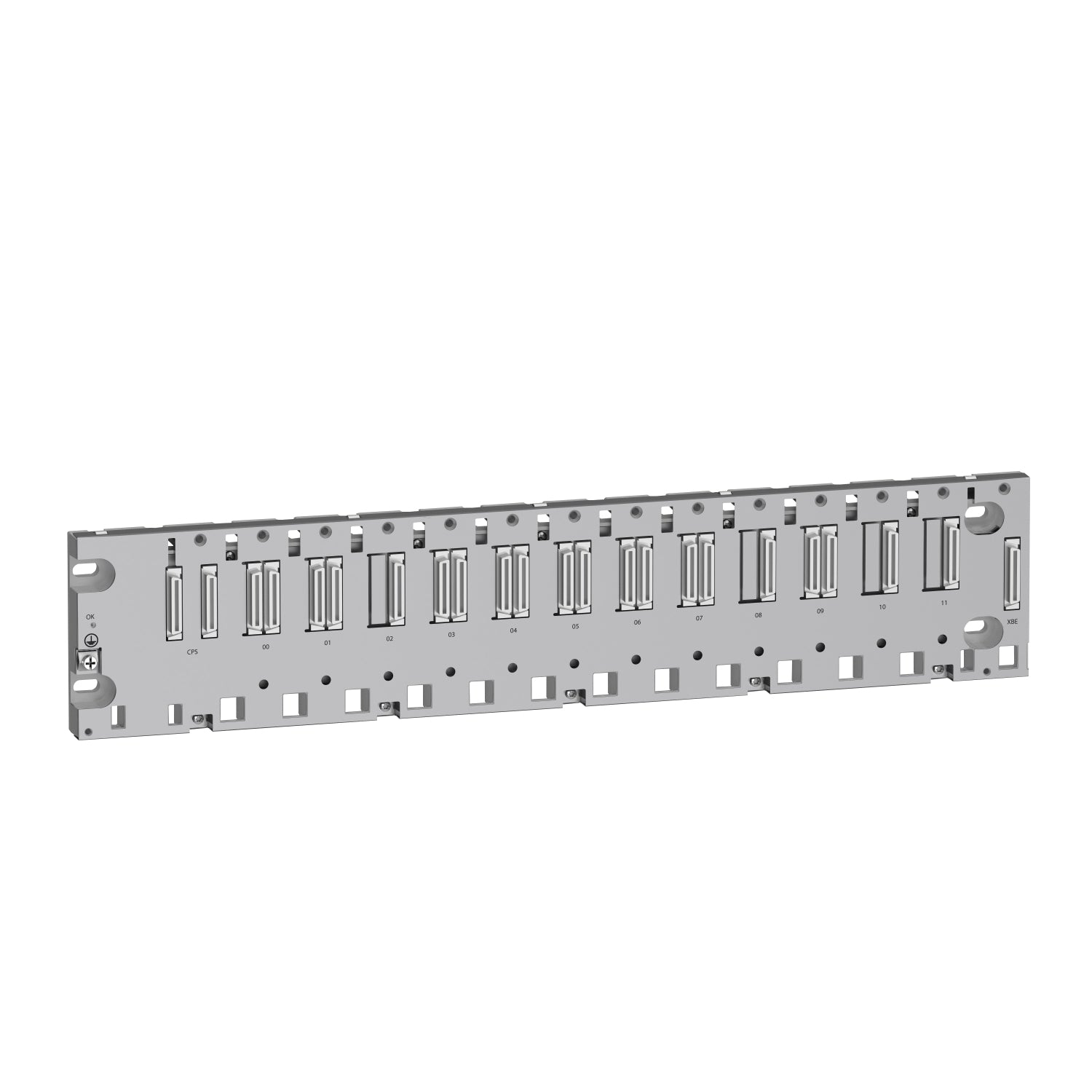

The Schneider Electric BMEXBP1200 is a 12-slot Ethernet backplane designed for Modicon X80 platforms used with M580 and M340 controllers. It provides mixed Ethernet and X-Bus connectivity to support modular PAC system expansion.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Backplanes |
| Part Number | BMEXBP1200 |
| Subcategory | Ethernet Backplanes |
| Number of Slots | 12 |
| Connectivity | 8 Ethernet/X-Bus Mixed, 4 X-Bus Only |
| Input Current | 164 mA @ 24 VDC / 86 mA @ 3.3 VDC |
| Enclosure Rating | IP20 |
| Operating Temperature | 0–60 °C |
| Wattage | 3.9 W |
| MTBF | 1,500,000 hours |
| Expansion | Includes XBE Module Connector |
| Compatibility | Modicon X80, M580, M340, BMXCPS, BME/BMX Modules |
| Application | Modular PAC Expansion |
| Weight | 0.8 lb |
Information About BMEXBP1200
The BMEXBP1200 is part of the Modicon X80 module ecosystem, serving as a robust Ethernet backplane rack that integrates seamlessly with Modicon M580 and M340 programmable automation controllers. It provides 12 usable slots, including eight Ethernet/X-Bus mixed connectors and four dedicated X-Bus connectors, supporting a wide range of I/O, processors, communication adapters, and specialty modules. The backplane operates at 24 VDC and 3.3 VDC with low current requirements and delivers high reliability with an MTBF of 1,500,000 hours. With IP20 protection, −0 to +60 °C operation, and compliance with industrial EMC and safety standards, it supports medium to large process automation systems requiring modularity and high-performance networking.
Key Features:
- 12-Slot Modular Backplane: Supports a large mix of processor, communication, and I/O modules for scalable PAC architectures.
- Dual Ethernet and X-Bus Connectivity: Provides eight mixed Ethernet/X-Bus connectors and four X-Bus connectors for flexible system expansion.
- Modicon X80 Platform Compatibility: Works with Modicon M580/M340 PACs, BMXCPS power supplies, and specialized modules.
- High MTBF of 1.5 Million Hours: Ensures long-term reliability in demanding industrial environments.
- Low-Power Operation: Consumes only 164 mA at 24 VDC and 86 mA at 3.3 VDC for efficient system power usage.
- IP20 Enclosure Protection: Suitable for installation inside protected control cabinets.
- Wide 0 to 60 °C Temperature Rating: Maintains stable performance within typical industrial ambient conditions.
- Includes XBE Expansion Connector: Enables electrical backplane extension within Modicon X80 installations.
The BMEXBP1200 delivers the reliability and precision required for modular PAC system configuration, large-scale automation architectures, and high-performance Ethernet-based control environments.
